0 reviews | Catalog: 1304.5729.02 | Model: Rohde & Schwarz FSH-K46
CDMA2000 BTS pilot channel and EVM measurements application (software license)
Your Price: $3,265.00
Sign-in for EDU Pricing!
Thank you for your interest! Complete the form below and one of our support engineers will contact you directly to coordinate your product demonstration.
Name
Email Address
Phone Number
Which state are you located in?
Thank you!
We've received your request and will be in touch soon.
🤭 Oops there was an error processing your request. Please contact us by phone, chat or email to set-up your demo.
We accept purchase orders and all major credit cards. We also provide financing via Klarna at checkout for qualifying purchases.
Have a question or need to apply for payment terms?
Contact us.
Have a question? Ask an expert.
(0)
In Stock!

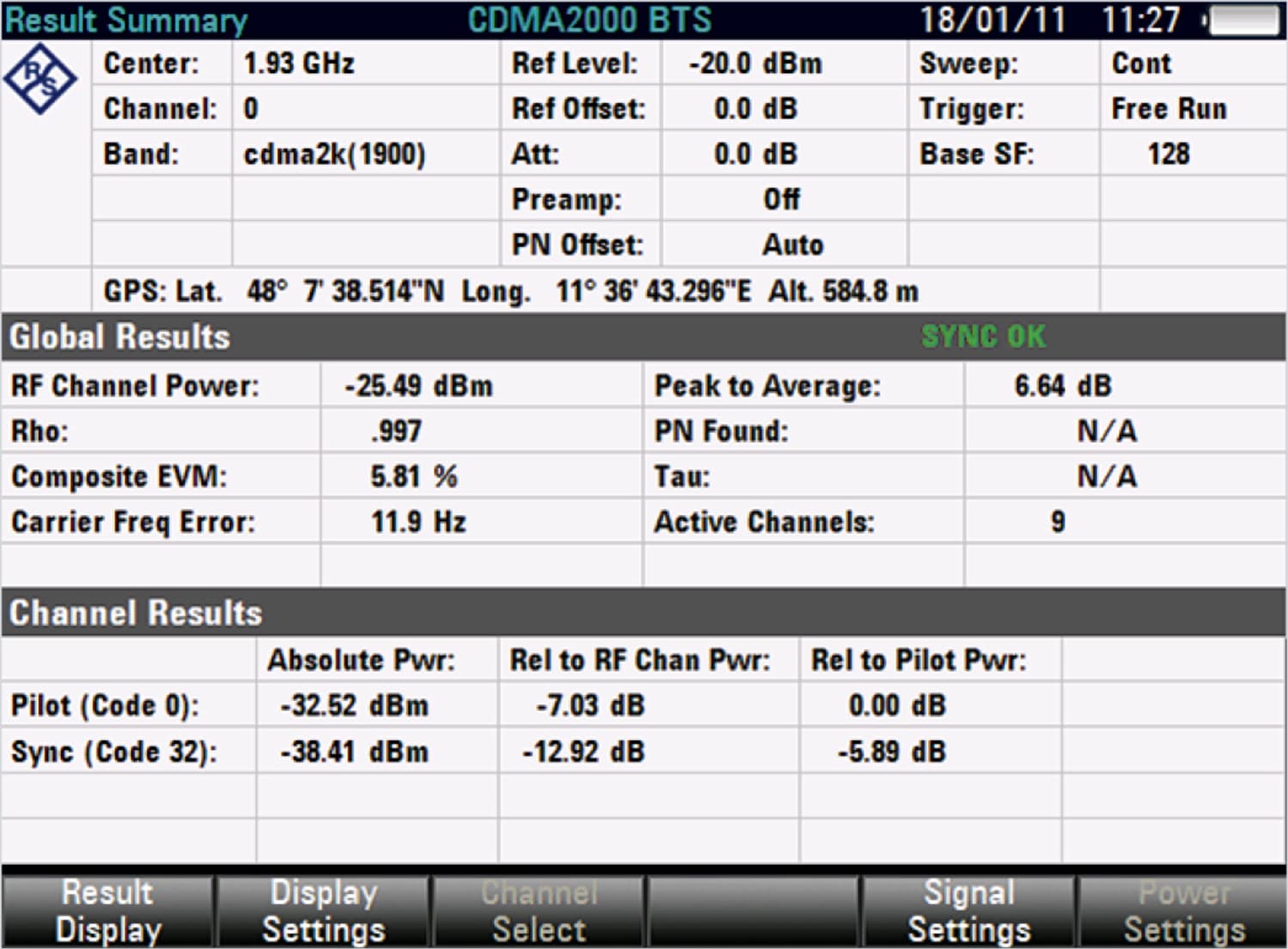

The R&S FSH-K46 option ideally equips the R&S FSH for CDMA2000 base station transmitter measurements. In addition to total power, the spectrum analyzer determines the power of the pilot channel (F-PICH) and the synchronization channel (F-SYNC). The carrier frequency offset, the error vector magnitude (EVM) and Rho are also measured and displayed. This allows the user to detect transmitter impairments such as clipping or intermodulation that are difficult to recognize in the spectrum.
For in-depth analysis, the R&S FSH-K46E option is available for code domain power measurements. This option permits the graphical display of the channel power of occupied and unoccupied channels. The resulting summary provides an overview of key signal parameters, e.g. RF channel power, channel power, Rho and EVM. Channel power is displayed relative to the total power or relative to the power of the pilot channel. The code domain channel table contains additional information such as the symbol rate and the channel number with its Walsh code. Please note, FSH-K46E requires the purchase of FSH-K46.
The specifications below apply to the R&S FSH4/FSH8/FSH13/FSH20. They are based on the data sheet specifications of the R&S FSH4/FSH8/FSH13/FSH20, have not been checked separately and are not verified during instrument calibration. Measurement uncertainties are indicated as 95 % confidence intervals. The specified level measurement errors do not take into account systematic errors due to reduced signal-to-noise ratio (SNR). All specifications are valid for RC3, one traffic channel, SNR > 30 dB.
