Rohde and Schwarz FSH-K44E - 3GPP WCDMA BTS/NodeB Code Domain Power Measurement Option for FSH

Name: Rohde and Schwarz FSH-K44E - 3GPP WCDMA BTS/NodeB Code Domain Power Measurement Option for FSH
Brand: Rohde & Schwarz
SKU: Rohde & SchwarzFSH-K44E
Price: 4745.00 USD
Availability: InStock

0 reviews | Catalog: 1304.5758.03 | Model: Rohde & Schwarz FSH-K44E

Compare

3GPP WCDMA BTS/Node B Code-Domain-Power measurement application (for FSH4/8, FSH-K44 required) (unregistered license)

Option for FSH spectrum analyzers
3GPP WCDMA BTS/NodeB Code Domain Power and EVM Measurement with HSDPA/HSPA+ Analyzer
This option also requires FSH-K44
Provides code domain power measurements for in-depth WCDMA/HSDPA/HSPA+ analyses
Allows the channel power of occupied and unoccupied code channels to be graphically displayed
Provides an overview of key signal parameters such as RF channel power, code channel power and composite EVM

View Product Details

Your Price: $4,745.00

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
Request a Demo

View Payment Options

Request Quote

Items in This Series



Product	Rohde & Schwarz FSH-K44E 3GPP WCDMA BTS/Node B Code-Domain-Power measurement application ( ...	Rohde & Schwarz FSH-K45 Vector voltmeter (for FSH4/8) (software license)	Rohde & Schwarz FSH-K17 Indoor Mapping Measurement Application (software license)	Rohde & Schwarz FSH-K16 Geotagging measurement application (unregistered license)	Rohde & Schwarz FSH-K42 Vector reflection and transmission measurement (for FSH4/8 model . ...	Rohde & Schwarz FSH-K41 Distance To Fault measurement for FSH4/8 (for model .24 and .28 on ...	Rohde & Schwarz FSH-K14 Spectrogram measurement application (unregistered license)	Rohde & Schwarz FSH-K29 Pulse Measurements with Power Sensor Requires R and S FSH-Z129 for ...	Rohde & Schwarz FSH-K15 Interference analysis measurement analysis (unregistered license)	Rohde & Schwarz FSH-K46 CDMA2000 BTS pilot channel and EVM measurements application (softw ...	Rohde & Schwarz FSH-K47 1xEVDO BTS pilot channel and EVM measurement application (software ...	Rohde & Schwarz FSH-K44 3GPP WCDMA BTS/Node B pilot channel and EVM measurement applicatio ...	Rohde & Schwarz FSH-K50 LTE FDD downlink pilot channel and EMV measurement application (fo ...	Rohde & Schwarz FSH-K105 EMF measurement application (unregistered license)	Rohde & Schwarz FSH-K48 3GPP TD-SCDMA BTS power and P-CCPCH EVM measurement application (u ...	Rohde & Schwarz FSH-K10 GSM, EDGE measurement application (unregistered license)	Rohde & Schwarz FSH-K48E 3GPP TD-SCDMA/HSDPA BTS code domain power and EVM measurement app ...	Rohde & Schwarz FSH-K50E LTE FDD downlink extended channel and modulation measurement appl ...	Rohde & Schwarz FSH-K46E CDMA2000 BTS Code-Domain-Power measurement application, R and S F ...	Rohde & Schwarz FSH-K47E 1xEV-DO BTS PN-Scanner and Time-Domain-Power measurement applicat ...	Rohde & Schwarz FSH-K51 LTE TDD downlink pilot channel and EMV measurement application (fo ...	Rohde & Schwarz FSH-K51E LTE TDD downlink extended channel and modulation measurement appl ...	Rohde & Schwarz FSH-K56 NB-IoT measurement application (software license)	Rohde & Schwarz FSH-K43 Receiver mode and channel scan measurement application for R and S ...	Rohde & Schwarz FSH-K40 Remote control via LAN or USB for FSH4/8 (unregistred license)
Price	$4,745.00	$700.00	$1,035.00	$1,035.00	$1,075.00	$1,290.00	$1,410.00	$1,480.00	$1,960.00	$3,145.00	$3,145.00	$3,145.00	$3,145.00	$3,285.00	$3,420.00	$4,050.00	$4,650.00	$4,745.00	$4,745.00	$4,745.00
In Stock	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Add to cart

Rohde & Schwarz FSH-K44E Accessories

Choose a Category

Options

Options for the Rohde & Schwarz FSH-K44E

Rohde & Schwarz FSH-K44 3GPP WCDMA BTS/Node B pilot channel and EVM measurement...

Catalog: 1304.5641.02

(0)

Available to Order

Check Lead Time

$3,145.00

Add to Cart

Rohde and Schwarz FSH-K44E - 3GPP WCDMA BTS/NodeB Code Domain Power Measurement Option for FSH

Option for FSH spectrum analyzers
3GPP WCDMA BTS/NodeB Code Domain Power and EVM Measurement with HSDPA/HSPA+ Analyzer
This option also requires FSH-K44
Provides code domain power measurements for in-depth WCDMA/HSDPA/HSPA+ analyses
Allows the channel power of occupied and unoccupied code channels to be graphically displayed

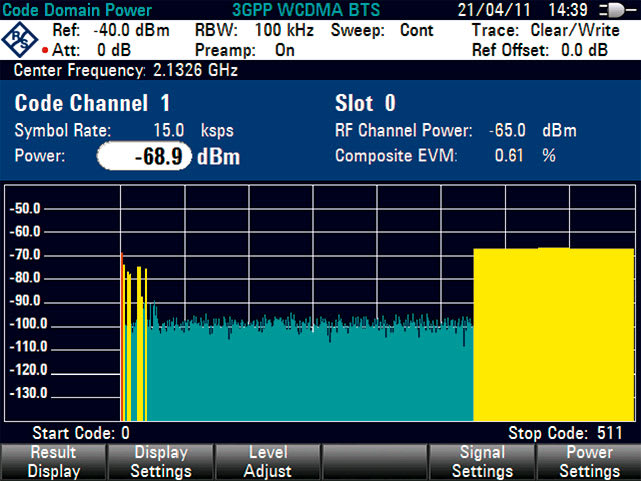

The R&S FSH-K44E option provides code domain power measurements for in-depth WCDMA/HSDPA/HSPA+ analyses. This option allows the channel power of occupied and unoccupied code channels to be graphically displayed. The resulting summary provides an overview of key signal parameters such as RF channel power, code channel power and composite EVM. The code domain channel table contains additional information such as symbol rate, channel number with the associated spreading factor and automatic detection and display of the channel type.

This option also requires option FSH-K44.

Measurements	R&S FSH-K44	R&S FSH-K44E
Spectrum overview	●	●
Scrambling code search	●	●
Isotropic antenna	●	●
Limits screen	●	●
Result summary	●	●
RF channel power	●	●
Carrier frequency error	●	●
Active channels	● (2 channels)	●
Scrambling code found	●	●
Composite EVM	–	●
Peak code domain error	–	●
Average RCDE	–	●
I/Q offset	–	●
Gain imbalance	–	●
P-CPICH power	●	●
P-CPICH EC/I0	●	●
P-CPICH symbol EVM	●	●
Sync channel power	●	●
Code domain power	–	●
Code channel power	–	●
Code channel symbol rate	–	●
Channel power	–	●
EVM	–	●
Code domain channel table	–	●
Code channel type	–	●
Channel number/spreading factor	–	●
Code channel symbol rate	–	●
Timing offset	–	●
Pilot bits	–	●
Status	–	●
Power, absolute	–	●
Power, relative to CPICH	–	●
HSDPA channel support	–	●
HSPA+ channel support	–	●

Frequency range		15 MHz to 3.0 GHz
Carrier frequency uncertainty	test case 6.3 in line with 3GPP TS 25.141
Lock range		±1 kHz
Measurement uncertainty	SNR > 30 dB, Δf_ref= uncertainty of reference frequency	< 10 Hz + Δf_ref
RF channel power	test case 6.2.1 in line with 3GPP TS 25.141, SNR > 30 dB
Measurement range	frequency > 15 MHz
	preamplifier = off	–60 dBm < P_{RF channel}< 20 dBm
	preamplifier = on	–80 dBm < P_{RF channel}< 20 dBm
Measurement uncertainty	–80 dBm < P_{RF channel}< 20 dBm, PREF_LEV– 30 dB < P_{RF channel}< PREF_LEV+ 3 dB	< 1 dB, typ. 0.5 dB
CPICH power	test case 6.2.2 in line with 3GPP TS 25.141, SNR > 30 dB
Measurement range	–40 dBm < P_{RF channel}< 20 dBm	P_{RF channel}– 20 dB < P_CPICH< P_{RF channel}
Measurement uncertainty	P_{RF channel}– 20 dBm < P_CPICH< P_{RF channel}	< 1 dB, typ. 0.5 dB
P-CCPCH power	test model 2 in line with 3GPP TS 25.141, SNR > 30 dB
Measurement range	–40 dBm < P_{RF channel}< 20 dBm	P_{RF channel}– 20 dB < P_P-CCPCH< P_{RF channel}
Measurement uncertainty	P_{RF channel}– 20 dBm < P_P-CCPCH< P_{RF channel}	< 1 dB, typ. 0.5 dB
PSCH/SSCH power	test model 2 in line with 3GPP TS 25.141, SNR > 30 dB
Measurement range	–40 dBm < P_{RF channel}< 20 dBm	P_{RF channel}– 20 dB < P_SCH< P_{RF channel}
Measurement uncertainty	P_{RF channel}– 20 dBm < P_SCH< P_{RF channel}	< 2.5 dB, typ. 1.5 dB
Symbol EVM	SNR > 30 dB
Measurement range	–40 dBm < P_{RF channel}< 20 dBm single channel EVM	1.5 % < EVM < 25 %
Measurement uncertainty	1.5 % < EVM ≤ 10 %	0.5 %
Measurement uncertainty	10 % < EVM < 25 %	2.5 %
Residual EVM		typ. 1.5 %
Composite EVM⁷	test case 6.7.1 in line with 3GPP TS 25.141, test model 4 with P-CPICH, SNR > 30 dB
Measurement range	–40 dBm < P_{RF channel}< 20 dBm	1.5 % < EVM < 25 %
Measurement uncertainty	1.5 % < EVM ≤ 10 %	typ. 2.0 %
Measurement uncertainty	10 % < EVM < 25 %	typ. 2.5 %
Residual EVM		typ. 2.5 %
Scrambling code detection	test model 1.16 in line with 3GPP TS 25.141
Lock range		±1 kHz
Calculation time		2.5 s
CPICH E_C/I₀		> –21 dB

Test Equipment General Attributes
ECCN Number	FREI-INLAND
Country of Origin	Qatar
