0 reviews | Catalog: 1304.5612.02 | UPC: 1304.5612.02 | Model: Rohde & Schwarz FSH-K41
Distance To Fault measurement for FSH4/8 (for model .24 and .28 only, requires RF cable FSH-Z320 or FSH-Z321 and FSH-Z28 or FSH-Z29) (software license)
Your Price: $1,335.00
Sign-in for EDU Pricing!
Thank you for your interest! Complete the form below and one of our support engineers will contact you directly to coordinate your product demonstration.
Name
Email Address
Phone Number
Which state are you located in?
Thank you!
We've received your request and will be in touch soon.
🤭 Oops there was an error processing your request. Please contact us by phone, chat or email to set-up your demo.
We accept purchase orders and all major credit cards. We also provide financing via Klarna at checkout for qualifying purchases.
Have a question or need to apply for payment terms?
Contact us.
Have a question? Ask an expert.
(0)
In Stock!

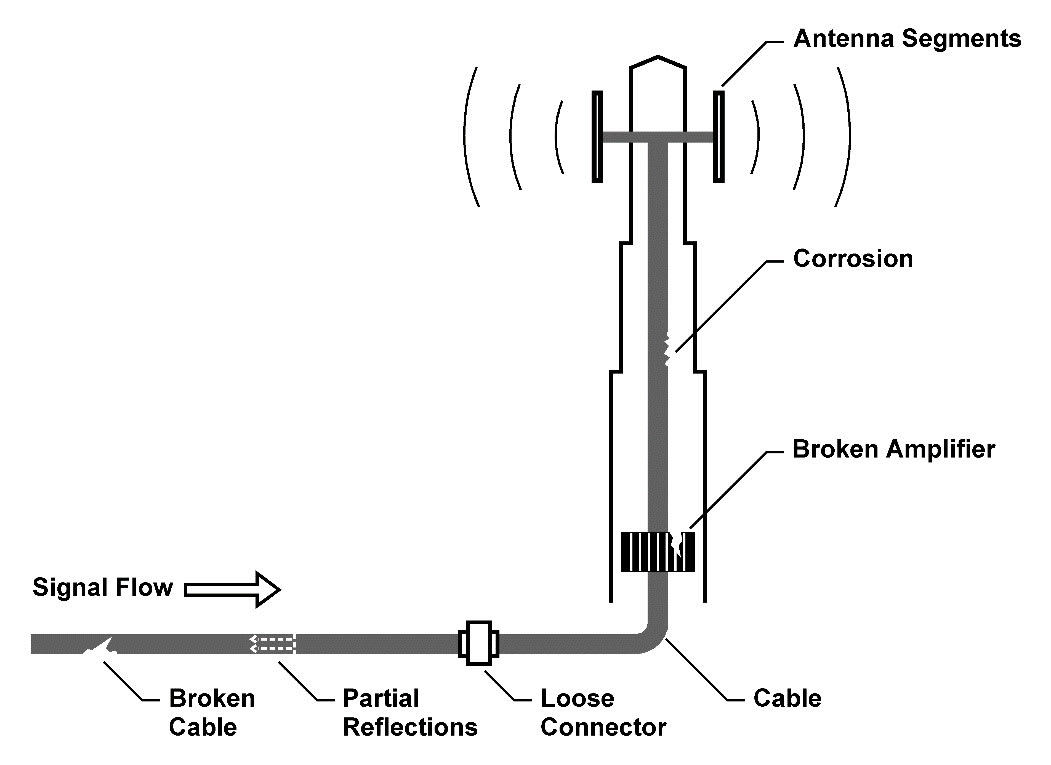

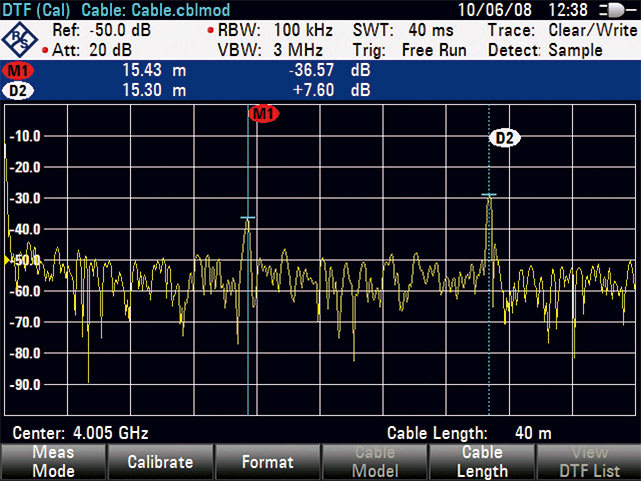

Equipped with firmware option R&S FSH-K41, you can perform distance-to-fault measurements with your R&S FSH. Please note, this option is not compatible with all models in the FSH series. It can be used with the following: FSH4.24, FSH8.28, FSH13.23, FSH20.30. The distance-to-fault (DTF) mode provides functionality to measure cables and waveguides for mechanical defects in the system that cause a deterioration of the transmission quality. The figure below shows some typical defects in a transmission system, including defects on the cable. The distance-to-fault, caused by a pinched cable or by loose or corroded cable connections, is determined quickly and precisely. The built-in threshold function ensures that only true cable faults, i.e. faults that exceed a tolerance limit, are listed. This considerably simplifies measurement evaluation.
