Rohde and Schwarz FPL1-B30 - DC Power Supply Connector Option

Name: Rohde and Schwarz FPL1-B30 - DC Power Supply Connector Option
Brand: Rohde & Schwarz
SKU: Rohde & SchwarzFPL1-B30
Price: 875.00 USD
Availability: InStock

0 reviews | Catalog: 1323.1877.02 | Model: Rohde & Schwarz FPL1-B30

Compare

DC Power supply for 12/24 V supply voltage, plug-in unit (hardware option)

DC power supply connector option
For FPL1000 and ZNL series
When testing device is used in a vehicle, this conveniently supplies power via the car socket

View Product Details

Your Price: $875.00

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded.
Request a Demo

View Payment Options

Request Quote

Items in This Series



Product	Rohde & Schwarz FPL1-B30 DC Power supply for 12/24 V supply voltage, plug-in unit (hardwar ...	Rohde & Schwarz FPL1-B4 OCXO, precision frequency reference, aging/Year: < 1x10-7, Temp.-d ...	Rohde & Schwarz FPL1-B40 Extension to 40 MHz signal analysis bandwidth (software license) ...	Rohde & Schwarz FPL1-B5 Additional interfaces: User port, noise source control, power sens ...	Rohde & Schwarz FPL1-B9-3 Internal Generator 5 kHz - 3 GHz (for R&S FPL1003, factory fitte ...	Rohde & Schwarz FPL1-B19 Second hard disk for R and S FPL1000, premounted on PC-board, inc ...	Rohde & Schwarz FPL1-B25 1 dB steps for the electronic attenuator (software license)	Rohde & Schwarz FPL1-B31 Li-Ion battery pack for internal battery slot, includes charging ...	Rohde & Schwarz FPL1-B10 Additional interface for remote control by GPIB, plug-in unit (ha ...	Rohde & Schwarz FPL1-B9-7 Internal Generator 5 kHz - 7.5 GHz (for R&S FPL1007, FPL1014 ...
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Rohde and Schwarz FPL1-B30 - DC Power Supply Connector Option

DC power supply connector option
For: FPL1000 and ZNL series
When the testing device is used in a vehicle, this conveniently supplies power via the car socket

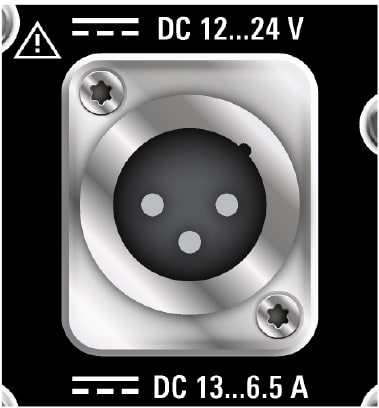

The R&S FPL1000 and ZNL can also be equipped with an optional DC power supply connector (R&S FPL1-B30). If installed, the testing device can be operated by a DC voltage of +12 V to +24.

If you use an external power supply unit to supply safety extra-low DC voltage (SELV) to the instrument, be sure to meet the requirements for reinforced/double insulation in accordance with DIN/EN/IEC 61010 (UL 3111, CSA C22.2 No. 1010.1) or DIN/EN/IEC 60950 (UL 1950, CSA C22.2 No. 950). Provide current limitation in accordance with DIN EN 61010-1 Appendix F2.1 of the attached quick start guide.

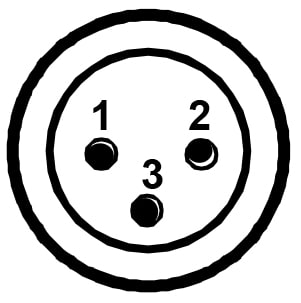

DC power supplies from +12 V to +24 V and from 13 A to 6.5 A can be used. Connect the connector according to the following diagram.
