0 reviews | Catalog: 1321.0709.02 | Model: Rohde & Schwarz FPH-K9
Power Sensor Support (Software License)
Your Price: $615.00
Sign-in for EDU Pricing!
Thank you for your interest! Complete the form below and one of our support engineers will contact you directly to coordinate your product demonstration.
Name
Email Address
Phone Number
Which state are you located in?
Thank you!
We've received your request and will be in touch soon.
🤭 Oops there was an error processing your request. Please contact us by phone, chat or email to set-up your demo.
We accept purchase orders and all major credit cards. We also provide financing via Klarna at checkout for qualifying purchases.
Have a question or need to apply for payment terms?
Contact us.
Have a question? Ask an expert.
(0)
In Stock!
For applications requiring very high accuracy to measure and align transmitter levels, the R&S FPH-K9 option allows the R&S SpectrumRider FPH to be used for power measurements together with the R&S NRP power sensor series, with a measurement range of -70 dBm to +45 dBm and covering frequencies up to 110 GHz.

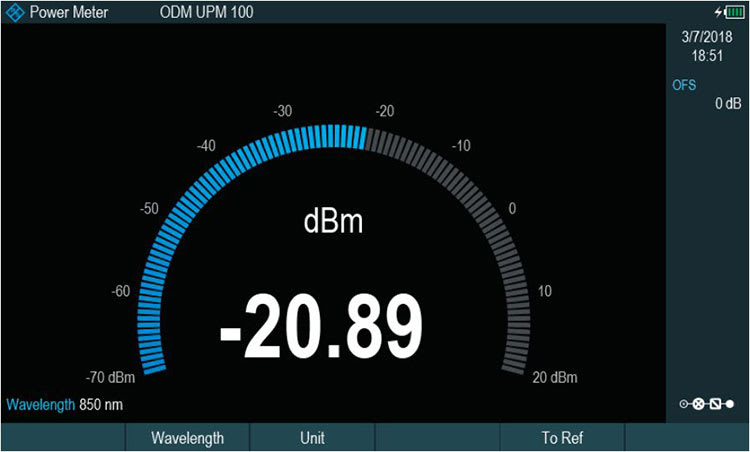

When used with an R&S HA-Z360/Z361 optical power sensor, the R&S SpectrumRider FPH power meter mode reads out optical absolute power in dBm as well as relative power in dB.

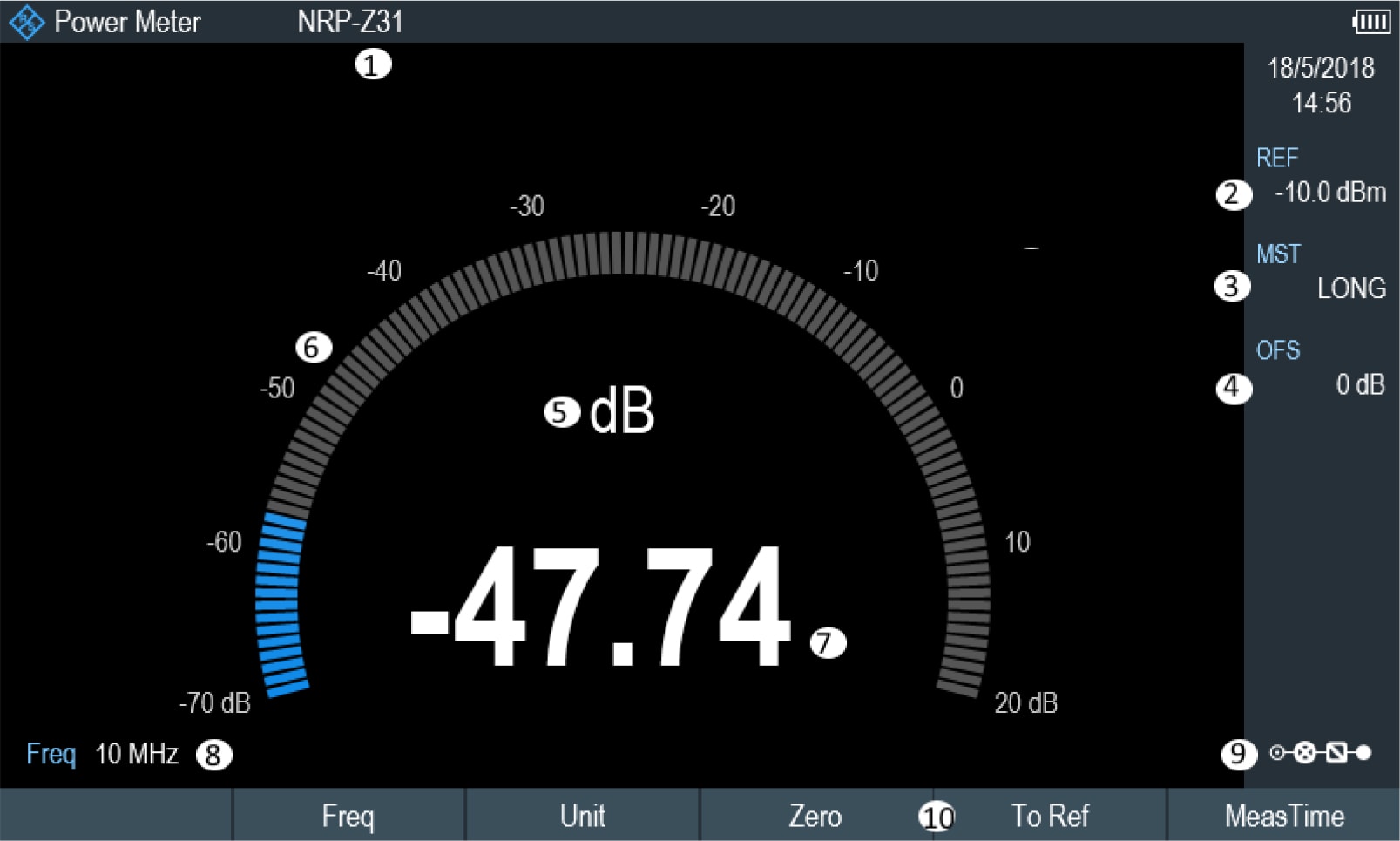

The power sensor function turns the R&S Spectrum Rider into a wideband power meter. It then always measures the power of the whole signal in the frequency range of the power sensor. In most cases, the signal shape has no effect on the measurement.
The power sensor measures the power in the frequency range defined in the data sheet of the power sensor. This means that you can measure both sine signals and modulated signals precisely over a large dynamic range.
For power measurements in both directions (forward and reverse), you can connect directional power sensors to the R&S Spectrum Rider. The R&S Spectrum Rider supports the following directional power sensors:

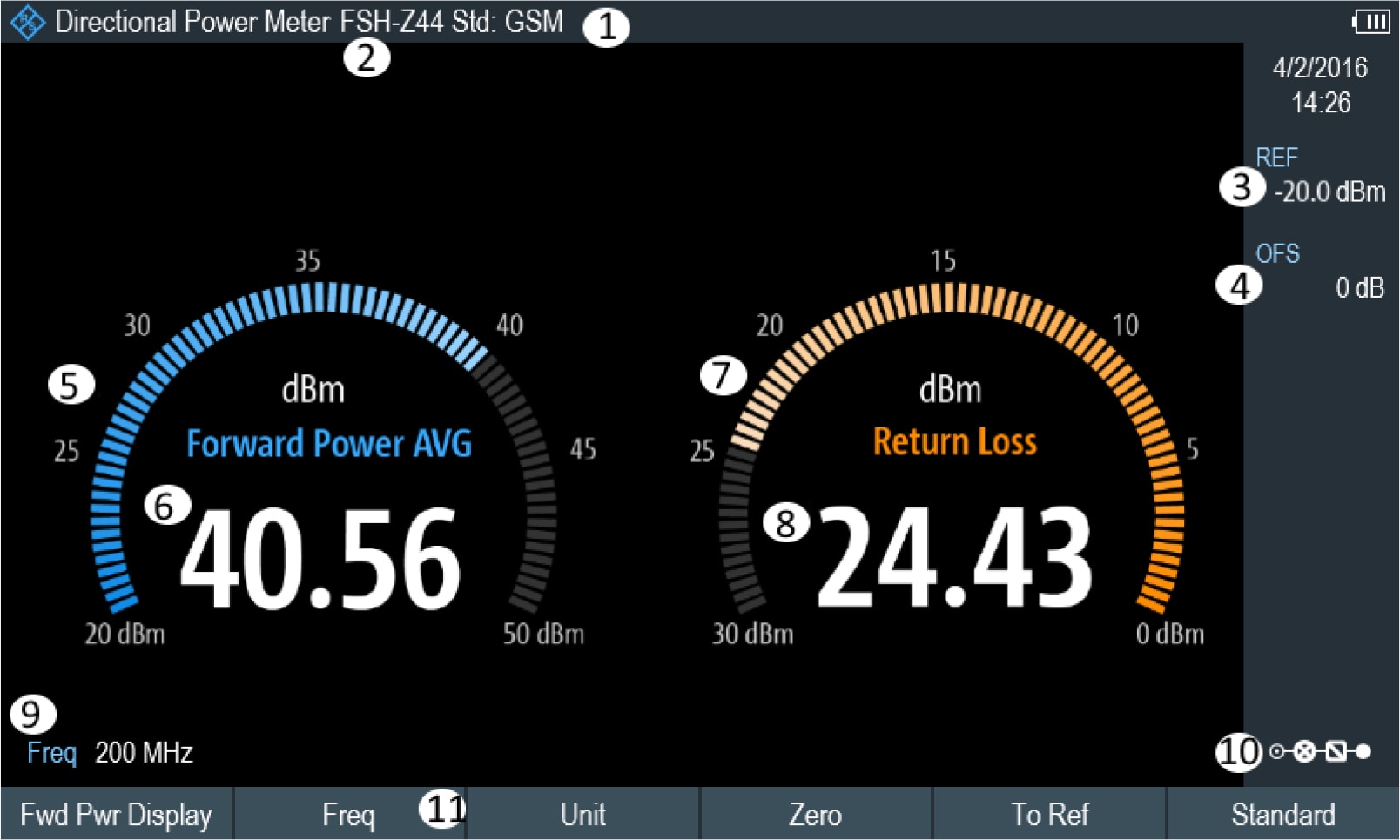

With a directional power sensor, the R&S Spectrum Rider measures the power of a signal from source to load (forward power) and from load to source (reverse power). The ratio of forward and reverse power is a measure of the load matching. The R&S Spectrum Rider displays the results as the return loss or the standing wave ratio.
Answers (1) - Asked by Anonymous
I have this question too (0)
The Rohde and Schwarz FPH spectrum analyzer has several options which are easily upgraded via software keycode. • FPH-B22 (order # 1321.0680.03) • Spectrum analyzer pre-amplifier • FPH-K7 (order # 1321.0696.03) • AM/FM/PHIM Modulation Analysis • FPH-K9 (order # 1321.0709.03) • Power Sensor Support • FPH-K15 (order # 1321.0715.03) • Interference Analysis • FPH-K16 (order # 1321.0615.03) • Signal Strength Mapping Measurement Application • FPH-K19 (order # 1321.0721.03) • Channel Power Meter • FPH-K29 (order # 1321.0738.03) • Pulse Measurements with Power Sensor • FPH-K43 (order # 1321.0621.03) • Receiver Mode and Channel Scanner Measurement Application
