0 reviews | Catalog: 1321.0738.02 | Model: Rohde & Schwarz FPH-K29
Pulse Measurements with Power Sensor (Software License)
Your Price: $1,420.00
Sign-in for EDU Pricing!
Thank you for your interest! Complete the form below and one of our support engineers will contact you directly to coordinate your product demonstration.
Name
Email Address
Phone Number
Which state are you located in?
Thank you!
We've received your request and will be in touch soon.
🤭 Oops there was an error processing your request. Please contact us by phone, chat or email to set-up your demo.
We accept purchase orders and all major credit cards. We also provide financing via Klarna at checkout for qualifying purchases.
Have a question or need to apply for payment terms?
Contact us.
Have a question? Ask an expert.
The R&S FPH-K29 option enables precise pulse and peak power measurements using the R&S Spectrum Rider FPH together with the R&S NRP-Z8x wideband power sensor family. The R&S NRP-Z8x wideband power sensors measure pulses with a resolution of up to 50 ns and support frequencies up to 44 GHz.

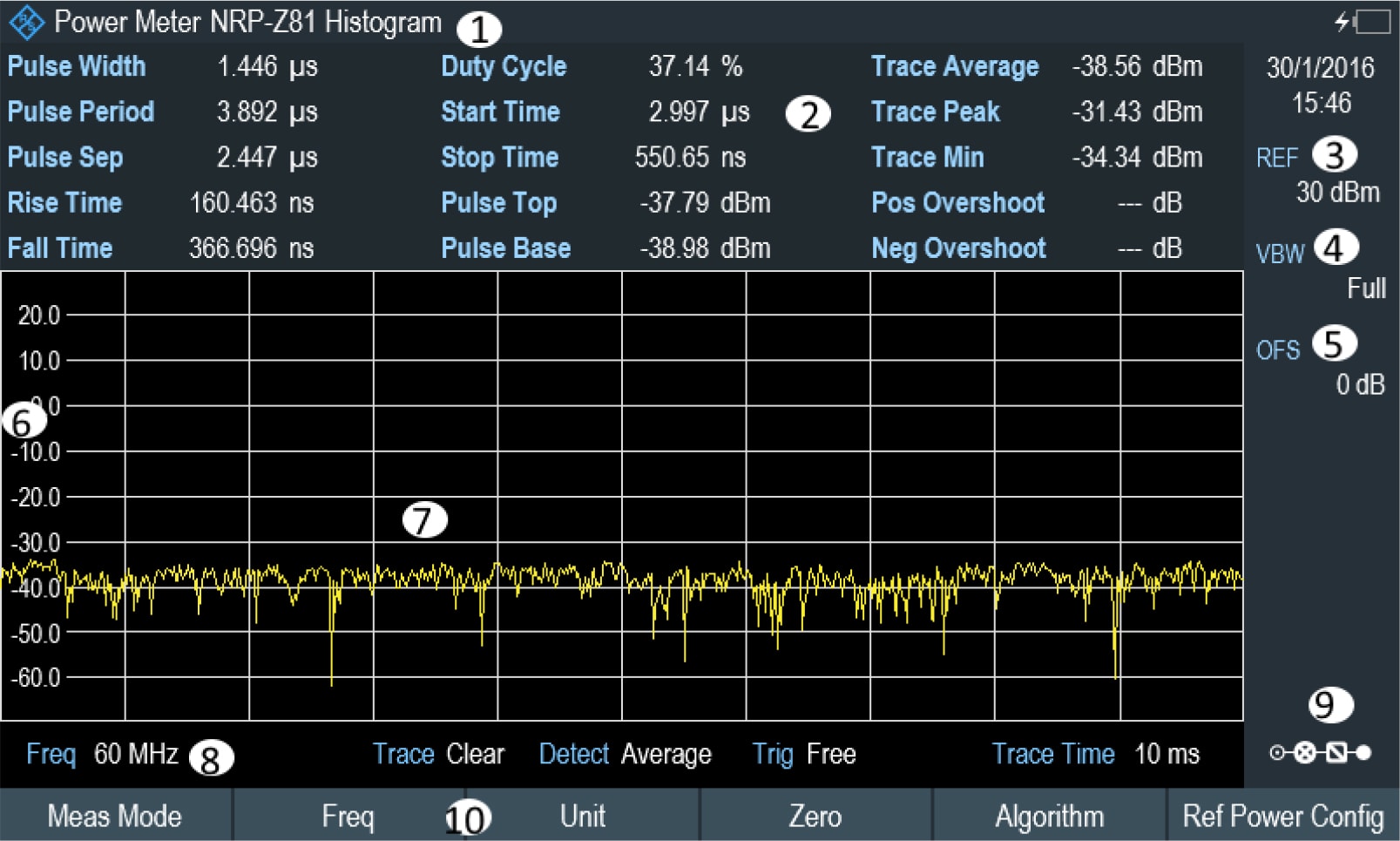

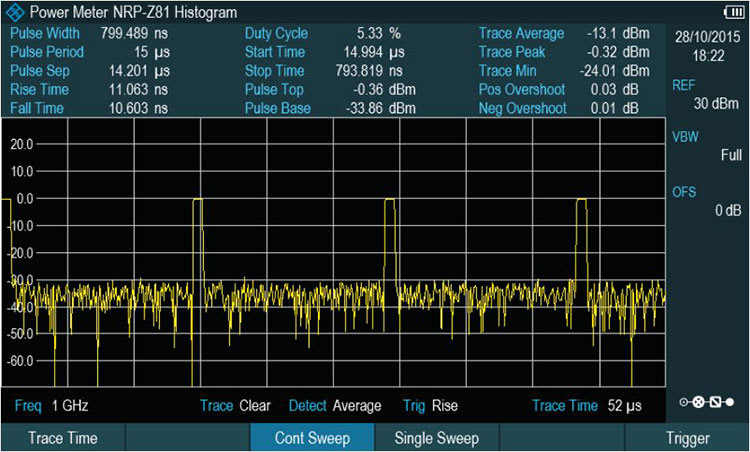

The main pulse parameters such as pulse width, rise/fall time and duty cycle will be displayed automatically. It is also possible to use the trigger function and markers and to zoom in on pulses by reducing the trace time. This is convenient for installation and maintenance measurements of radar systems.
The following power characteristics are calculated and displayed as numerical values:
Answers (1) - Asked by Anonymous
I have this question too (0)
The Rohde and Schwarz FPH spectrum analyzer has several options which are easily upgraded via software keycode. • FPH-B22 (order # 1321.0680.03) • Spectrum analyzer pre-amplifier • FPH-K7 (order # 1321.0696.03) • AM/FM/PHIM Modulation Analysis • FPH-K9 (order # 1321.0709.03) • Power Sensor Support • FPH-K15 (order # 1321.0715.03) • Interference Analysis • FPH-K16 (order # 1321.0615.03) • Signal Strength Mapping Measurement Application • FPH-K19 (order # 1321.0721.03) • Channel Power Meter • FPH-K29 (order # 1321.0738.03) • Pulse Measurements with Power Sensor • FPH-K43 (order # 1321.0621.03) • Receiver Mode and Channel Scanner Measurement Application
