0 reviews | Catalog: 1321.0721.02 | Model: Rohde & Schwarz FPH-K19
Channel Power Meter (Software License)
Your Price: $840.00
Sign-in for EDU Pricing!
Thank you for your interest! Complete the form below and one of our support engineers will contact you directly to coordinate your product demonstration.
Name
Email Address
Phone Number
Which state are you located in?
Thank you!
We've received your request and will be in touch soon.
🤭 Oops there was an error processing your request. Please contact us by phone, chat or email to set-up your demo.
We accept purchase orders and all major credit cards. We also provide financing via Klarna at checkout for qualifying purchases.
Have a question or need to apply for payment terms?
Contact us.
Have a question? Ask an expert.

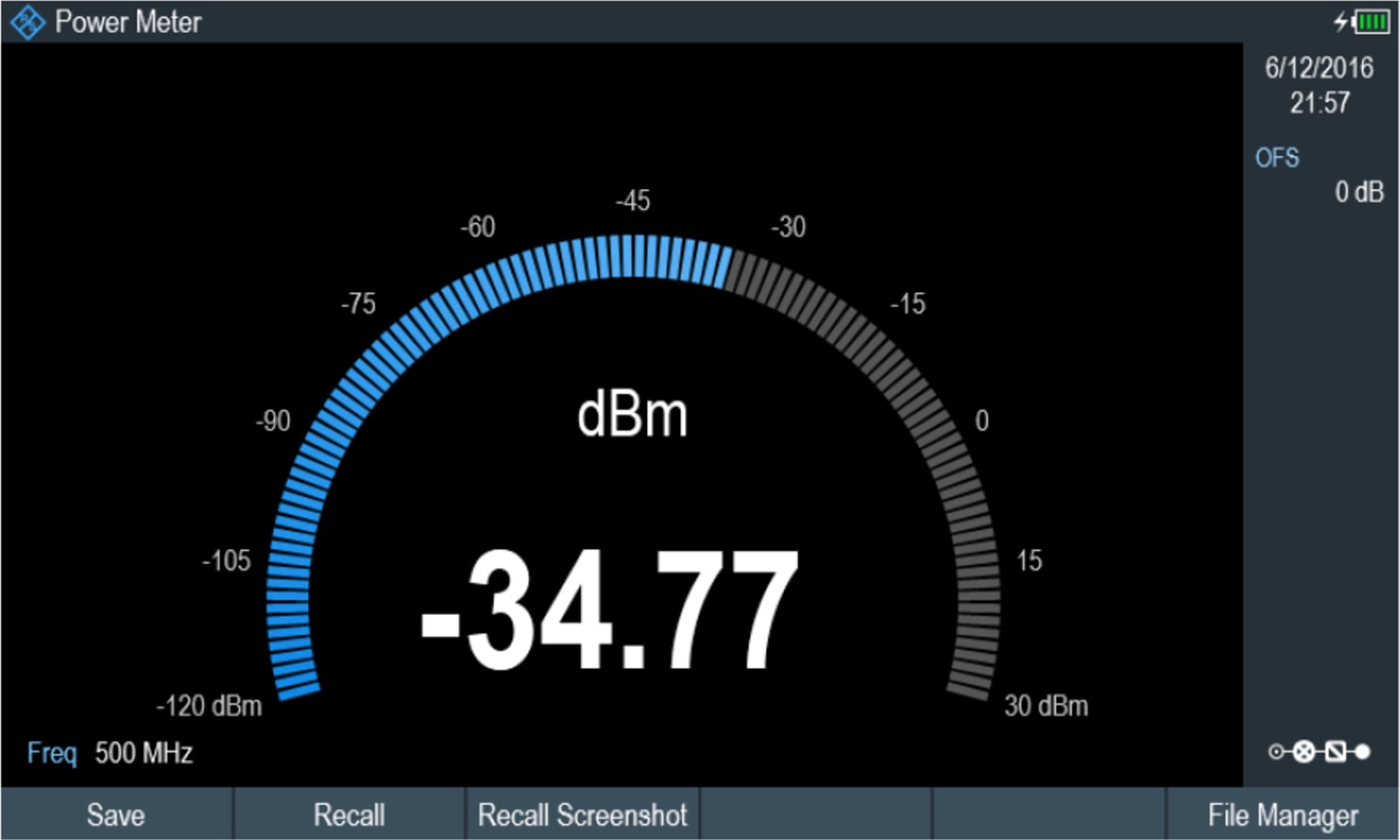

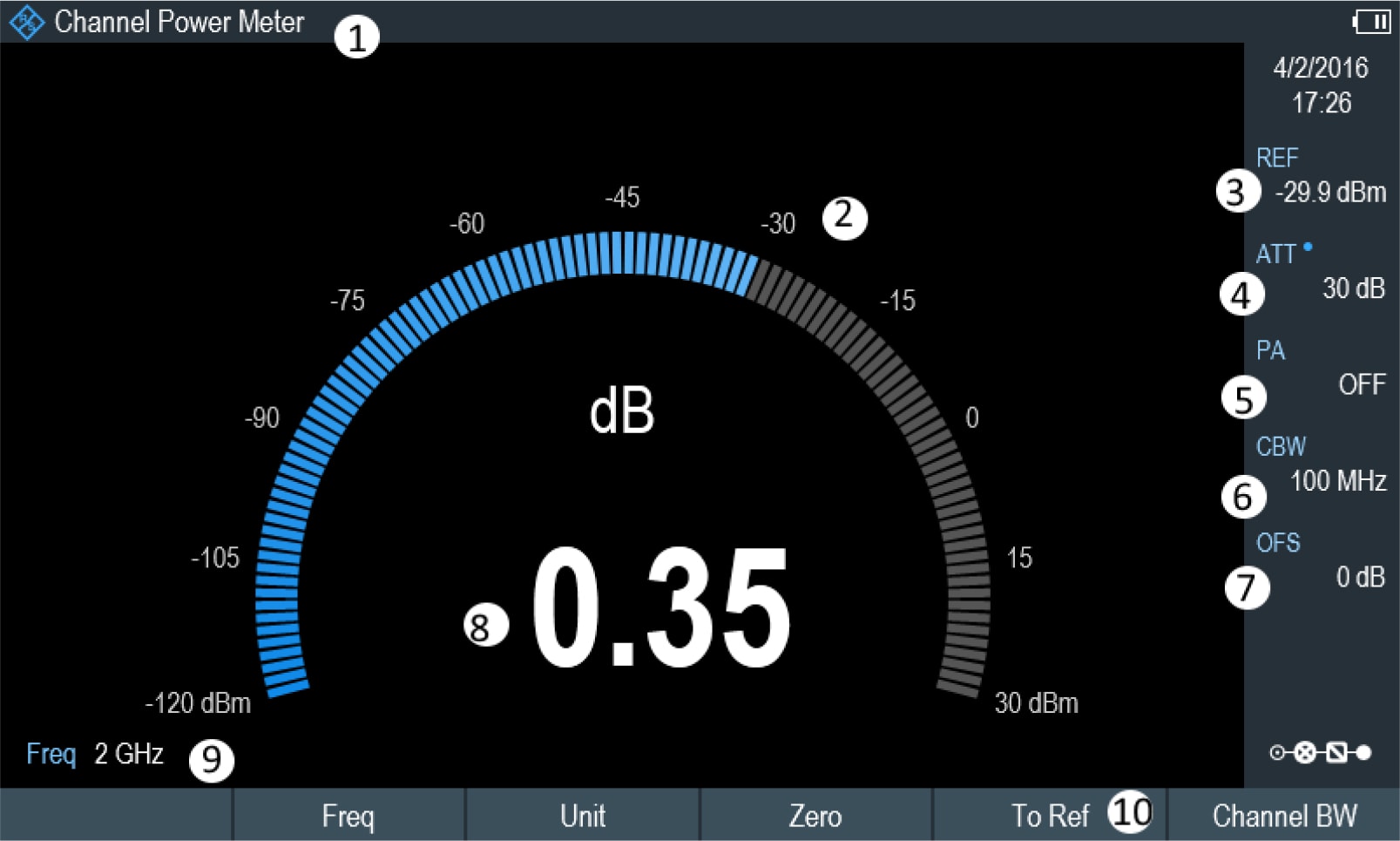

The R&S FPH-K19 channel power meter option converts the R&S Spectrum Rider FPH into a portable power meter with a level measurement accuracy of typ. 0.5 dB. This option makes it possible to achieve power measurement results fast and easily without needing a power sensor or the spectrum analyzer mode. This can help in applications such as checking power levels throughout the signal path of a field transmitter or verifying the power level of a device under test (DUT) in the lab.
The configuration of power measurements without a power sensor is similar to measurement with a power meter.
The following features are available:

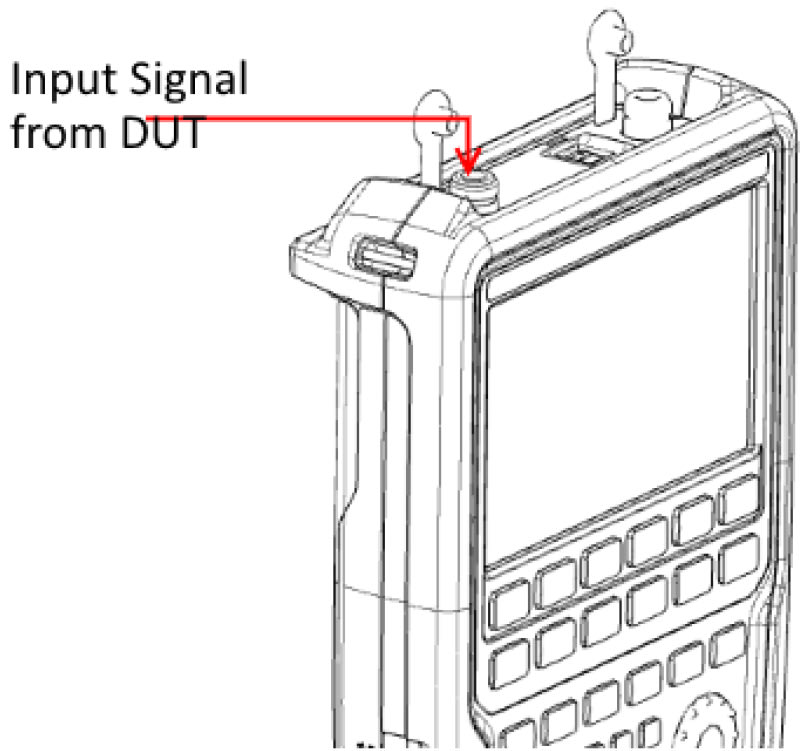

Connect the DUT to the RF input shown below:
Answers (1) - Asked by Anonymous
I have this question too (0)
The Rohde and Schwarz FPH spectrum analyzer has several options which are easily upgraded via software keycode. • FPH-B22 (order # 1321.0680.03) • Spectrum analyzer pre-amplifier • FPH-K7 (order # 1321.0696.03) • AM/FM/PHIM Modulation Analysis • FPH-K9 (order # 1321.0709.03) • Power Sensor Support • FPH-K15 (order # 1321.0715.03) • Interference Analysis • FPH-K16 (order # 1321.0615.03) • Signal Strength Mapping Measurement Application • FPH-K19 (order # 1321.0721.03) • Channel Power Meter • FPH-K29 (order # 1321.0738.03) • Pulse Measurements with Power Sensor • FPH-K43 (order # 1321.0621.03) • Receiver Mode and Channel Scanner Measurement Application
I found this helpful (0)
Inaccurate? (0)
Answered by Anonymous
