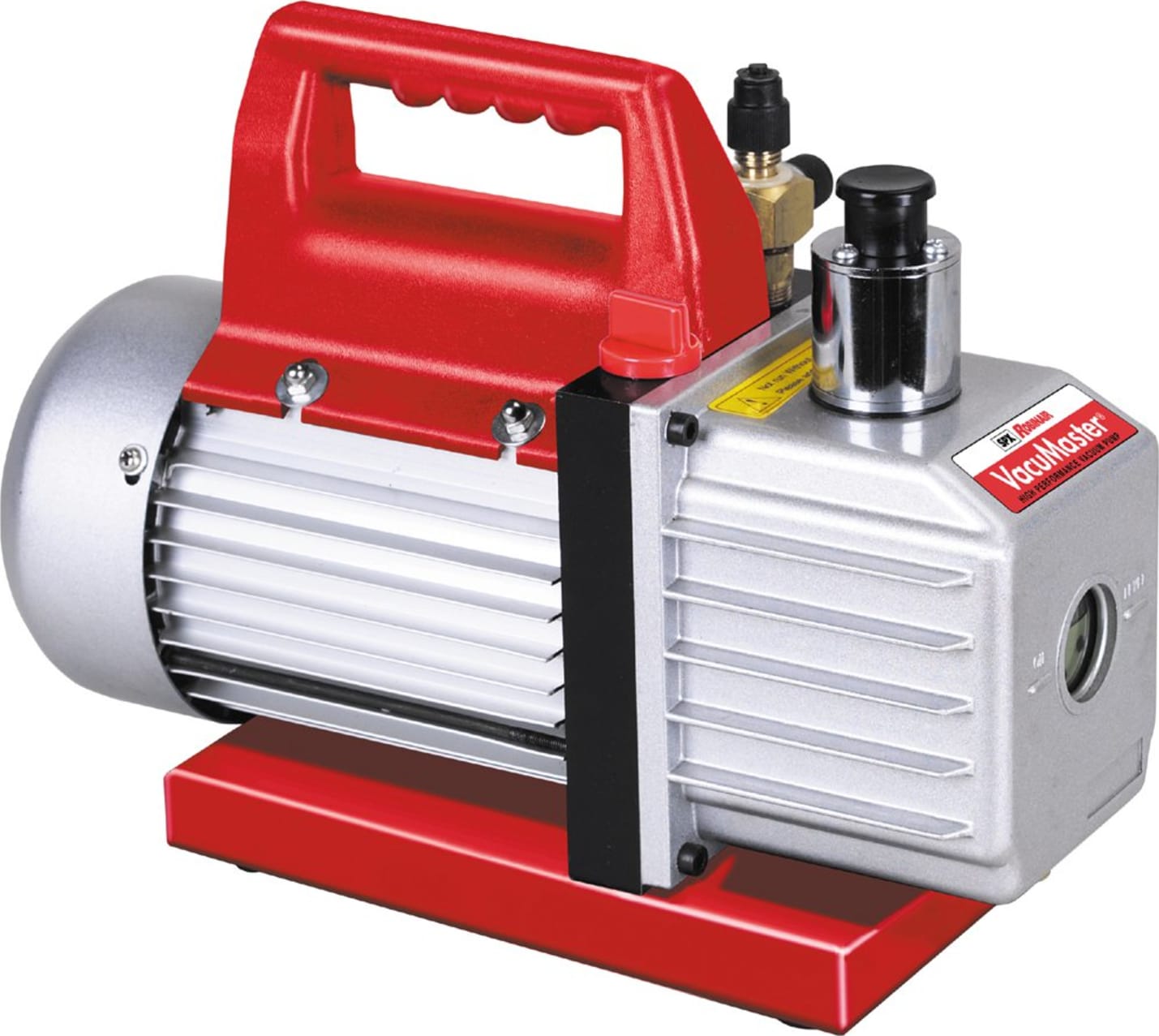

Robinair 15150 VacuMaster Vacuum Pump, 1.5 CFM

Name: Robinair 15150 VacuMaster Vacuum Pump, 1.5 CFM
Brand: Robinair
SKU: Robinair15150
Price: 220.74 USD
Availability: InStock
Rating: 1.00 (1 reviews)

1 (1 Review) | UPC: 637335016231 | Model: Robinair 15150

Compare

VAC PUMP 110, 1.5 CFM - 2 STAGE

Two-stage Design - Cleans the system more thoroughly than a single-stage pump; the second stage starts pumping at a lower pressure so you can pull a deeper, ultimate vacuum
Oil Drain Valve - Positioned at the bottom of the oil reservoir and angled for faster, more complete draining
Oil Fill Port - Makes adding oil simple since the port is accessible from the front or either side. The sight glass on the front of the pump shows you when enough oil has been added
Heavy-Duty Motor - High torque design for easy startup and efficient operation
Die-Cast Aluminum Housing - Cast aluminum housings make the pumps lightweight but durable

View Product Details

List Price: $356.63

Your Price: $220.74

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series



Product	Robinair 15150 VAC PUMP 110, 1.5 CFM - 2 STAGE	Robinair 15300 VAC PUMP 110, 3 CFM - 2 STAGE	Robinair 15500 VAC PUMP 110, 5 CFM - 2 STAGE	Robinair 15800 VAC PUMP, 2-STAGE, 8 CFM, 120 V	Robinair 15301 VAC PUMP 220V, 68 L/MIN, 2 STAGE	Robinair 15501 VAC PUMP 220V,113 L/MIN- 2 STAGE
Price
In Stock
Number of Stages (Pumps)	2	2	2	2	2	2
Vacuum (Vacuum Pumps)	1.5 CFM	3 CFM	5 CFM	8 CFM	3 CFM	5 CFM
Line Power (Pumps)	110-120 VAC	110-120 VAC	110-120 VAC	110-120 VAC	220-240 VAC	220-240 VAC
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Robinair 15150 Accessories

Choose a Category

HVAC Accessories

for the Robinair 15150

Robinair 13119 OIL, 16 OZ BOTTLE, case of 12

Catalog: 13119

(2)

In Stock!

Add to Cart

Robinair 13203 Oil, Quart Bottle, Case of 12 Bottles

Catalog: 13203

(4)

In Stock!

Add to Cart

Robinair 13204 OIL, 1 GAL BOTTLE, case of 4

Catalog: 13204

(3)

In Stock!

Add to Cart

Robinair 15150 VacuMaster Vacuum Pump, 1.5 CFM

Performance tested to meet Robinair's high standards
Power and capacity for a wide range of service applications
High CFM rating for fast, thorough evacuation
Two-stage rotary vane design

Robinair VacuMaster vacuum pumps features a two stage design, cleaning the system more thoroughly with a second vacuum, and leading to a deeper ultimate vacuum level. Designed for quick oil changes, the oil fill port and drain plug are easily accessible for fast and complete oil changes, and the easy view sight glass enables users to quickly see both oil color and level.

VacuMaster pumps feature heavy duty motors, with a high torque design for easy start up and efficient operation. Available in a variety of sizes, Robinair offers a vacuum pumps for any application. Please see the chart below for more information.

Models	Domestic Models				International Models
Models	15150	15300	15500	15800	15301 (3 CFM)	15501 (5 CFM)
Free Air Displacement	1.5 CFM	3 CFM	5 CFM	8 CFM	71 liters/minute	118 liters/minute
Factory Micron Rating	50 microns	35 microns	35 microns	35 microns	35 microns	35 microns
No. of Stages	2	2	2	2	2	2
Intake Fitting	1/4" MFL and 3/8" Acme 3/8" FFL x 1/2" Acme adapter	1/4" MFL and 3/8" Acme 3/8" FFL x 1/2" Acme adapter	1/4" MFL and 3/8" Acme 3/8" FFL x 1/2" Acme adapter	1/4" MFL and 3/8" MFL	1/4" MFL and 1/2" MFL 3/8" FFL x 1/2" Acme adapter	1/4" MFL and 1/2" MFL 3/8" FFL x 1/2" Acme adapter
Oil Capacity	7.4 oz. (219 ml)	7.5 oz. (220 ml)	7.5 oz. (220 ml)	18.6 oz. (550 ml)	7.5 oz. (220 ml)	7.5 oz. (220 ml)
Motor Size	1/4 hp	1/3 hp	1/3 hp	1 hp	1/3 hp	1/3 hp
Voltage	115V 60 Hz	115V 60 Hz	115V 60 Hz	115V 60 Hz	220V 50Hz	220V 50Hz
Weight	22 lbs. (10 kg)	28 lbs. (12.5 kg)	28 lbs. (12.2 kg)	37 lbs. (16.8 kg)	28 lbs. (12.5 kg)	28 lbs. (12.5 kg)
Dimensions	9.5" H x 4.75" W x 12.5" L 240 mm x 120 mm x 315 mm	10" H x 5" W x 13" L 255 mm x 123 mm x 336 mm	10" H x 5" W x 13" L 255 mm x 123 mm x 336 mm	16" H x 6" W x 10" L 406" mm x 152 mm x 254 mm	10" H x 5" W x 13" L 255 mm x 123 mm x 336 mm	10" H x 5" W x 13" L 255 mm x 123 mm x 336 mm

Tech Specs

HVAC Equipment and Instruments/HVAC Vacuum Pumps
Number of Stages (Pumps)	2
Vacuum (Vacuum Pumps)	1.5 CFM
Line Power (Pumps)	110-120 VAC
Test Equipment General Attributes
Product Weight	22 LBS
Product Height	9.5 IN
Product Length	12.5 IN
Product Width	4.5 IN
Shipping Weight	23 LBS
HTS/Schedule B Number	8414100000
Country of Origin	China
Shipping Height	13.00 IN
Shipping Length	15.40 IN
Shipping Width	8.00 IN

1

Out of 5

Average Customer Review

Share your thoughts with other customers

Write a Review

Displaying 1 review

Most Helpful First | Newest First

Recommend to a Friend

Save your money

1.0

Started this summer with 3 of these on our trucks the last one broke today. Fuse was blown replaced it and nothing. We run these only on a DC plug and DO NOT run a cheater cable to the disconnect. Spend more and get a better quality pump. Had to purge today because my pump was no good on a Saturday with no supply house open.

Matt on Aug 15, 2015
