| Memory Depth | 1M points (Single Channel), 512K points (Dual Channels), 512K points (Logic Analyzer) |
| Channels | Dual Channels + External Trigger + Logic Analyzer |
| Real-time Sample Rate | 400 MSa/s, 200 MSa/s (Logic Analyzer) |
| Equivalent Sample Rate | 25 GSa/s |
| Rise Time | 14 ns |
| Time Base Range | 20 ns/div to 50 s/div |
| Voltage Level Standards (Logic Analyzer) | TTL = 1.4 V, CMOS = 2.5 V, ECL = - 1.3 V, USER = - 8.0 V to + 8.0 V |
| Trigger Modes | Edge, Video, Pulse Width, Slope, Alternative, Pattern and Duration |
| Trigger Sources | CH1, CH2, Ext, Ext/5, AC Line, D0 to D15 |
| Input Impedance | 1 MΩ || 15 pF |
| Vertical Sensitivity | 2 mV/div to 5 V/div |
| Vertical Resolution | 8 bits |
| Input Coupling | DC, AC, Ground |
| Maximum Input Voltage | 400 V (DC + AC peak) |
| Automatic Measurements | Vpp, Vamp, Vmax, Vmin, Vtop, Vbase, Vavg, Vrms, Preshoot, Overshoot, Frequency, Period, Rise Time, Fall time, Positive Width, Negative Width, Positive Duty Cycle, Negative Duty Cycle, Delay 1→2 , Delay 1→2 |
| Cursor Measurements | Manual, Track and Auto Measure modes. |

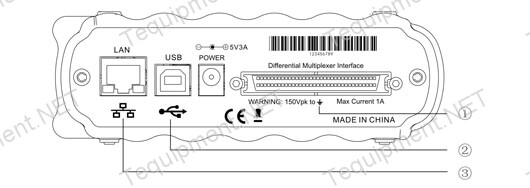

| I/O | USB Device, LAN |
| Power | Power Module: (AC 100 V – 240 V, 50 Hz – 60 Hz) input, DC 5V/3A output |
| Weight | 0.7 kg |
