Rigol VM3051 Discontinued Products

Name: Rigol VM3051 Discontinued Products
Brand: Rigol
SKU: RigolVM3051
Price: 395.00 USD
Availability: InStock

0 reviews | Model: Rigol VM3051

Compare

5 1/2 Digit DVM - Available in October 07

Test resolution: 6½ digits (2,400,000-count), 5¾ digits (500,000-count)
50 K/s maximum sample rate, 1M points of memory depth
16 channels data inspection module: Data acquisition, inspection and programable auto measure.

View Product Details

List Price: $395.00

In Stock:

View Payment Options

Recommended for you

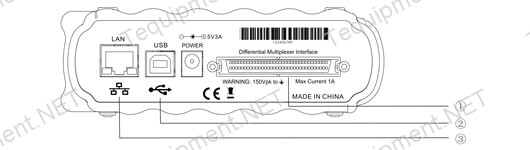

Rear Panel

1. LAN/GPIB interface, remote access and test through LAN interface
2. USB Device to support virtual terminal display and control
3. Inspection Module of 16 channels

Advanced Features

Test resolution: 6½ digits (2,400,000-count), 5¾ digits (500,000-count)
50 K/s maximum sample rate, 1M points of memory depth
16 channels inspection module and Ultralogger software
26 test functions:
- DC voltage and current, AC voltage and current, 2-wire and 4-wire resistance, Capacitance
- Continuity Test, Diode Test
- Frequency, Period, Ratio Test, Temperature, Any Sensor Test
- High Limit, Low Limit and High/Low Limit
- Math: Max, Min, Avg, Null, dBm, dB
- Data Acquisition: Data Record, Inspection, Programmable Auto Measure
Input resistance > 10 GO: DC voltage range up to 48 V (± 24 V)
True RMS AC voltage and current test
Built-in 10 setups storage, 10 data storage, 10 any sensor storage
I/O: LAN, USB Device
Integrated USB Host to support USB disk and USB printer
Easy to use and flexible control software

Typical Measurements


Continuity Test	Frequency Test

DC Voltage Test	Limit Test

Standard Accesories


Power Cord	Test Lead Kit	USB Data Wire	VM3000 Software CD-ROM

User Manual

Model	VM3051
Resolution	5¾
Configuration	Null

Performance Characteristics

Test Resolution - 6½
DC Voltage	200 mV to 1000 V Range: 200 mV, 2 V, 20 V, 200 V, 1000 V
DC Current	20 mA to 10 A Range: 20 mA, 200 mA, 1 A, 10 A
AC Voltage (RMS)	2 V to 750 V Range: 2 V, 20 V, 200 V, 750 V
AC Current (RMS)	20 mA to 10 A Range: 20 mA, 200 mA, 1 A, 10 A
Resistance (2-wire and 4-wire)	200 Ω to 100 MΩ Range: 200 Ω, 2 kΩ, 20 kΩ, 200 kΩ, 2 MΩ, 10 MΩ, 100 MΩ
Capacitance	2 nF to 10000 μF Range: 2 nF, 20 nF, 200 nF, 2 μF, 20 μF, 200 μF, 10000 μF
Test Resolution - 5¾
DC Voltage	400 mV to 1000 V Range: 400 mV, 4 V, 40 V, 400 V, 1000 V
DC Current	40 mA to 10 A Range: 40 mA, 400 mA, 1 A, 10 A
AC Voltage (RMS)	4 V to 750 V Range: 4 V, 40 V, 400 V, 750 V
AC Current (RMS)	40 mA to 10 A Range: 40 mA, 400 mA, 1 A, 10 A
Resistance (2-wire and 4-wire)	400 Ω to 100 MΩ Range: 400 Ω, 4 kΩ, 40 kΩ, 400 kΩ, 4 MΩ, 10 MΩ, 100 MΩ
Capacitance	4 nF to 10000 μF Range: 4 nF, 40 nF, 400 nF, 4 μF, 40 μF, 10000 μF
Common Parameters
Continuity Test	2 kΩ Range, Threshold Range: 1 Ω to 2 kΩ
Diode Test	2 V Range, 1 mA test current, 2.4 V Maximum forward voltage drop
Thermocouple and Any Sensor	Support multiple ANSI standard thermocouple and the sensor with voltage, current or resistance output
Frequency and Period	3 Hz (0.333 s) to 300 kHz (3.33 μs)
Math	Null, Min/Max/Avg, dBm, dB, Limit Test
Data Acquisition	Data Record, Inspection, Programmable Auto Measure
Other Functions	Auto Reading Hold, Ratio Test, Built-in 10 setups storage, 1M points of memory depth
Maximum Sample Rate	50 K/s (High-speed Data Record)
USB Interface	USB Device
Other Interface	LAN
Display	LED state display on Panel
Data Acquisition and Virtual Machine Software	Support Microsoft® Windows 98, Windows Me, Windows 2000, Windows XP
Maximum Input	1,000 V DC, 750 Vrms AC, DC and AC maximum external current 10 A, internal current 12 A Double Fuses
Shock and Vibration	MIL-T-28800, Type III, Class 5
Power	Power Adapter: (AC 100 V – 240 V, 50 Hz – 60 Hz) input, DC 5V/3A output
Weight	0.8 kg
