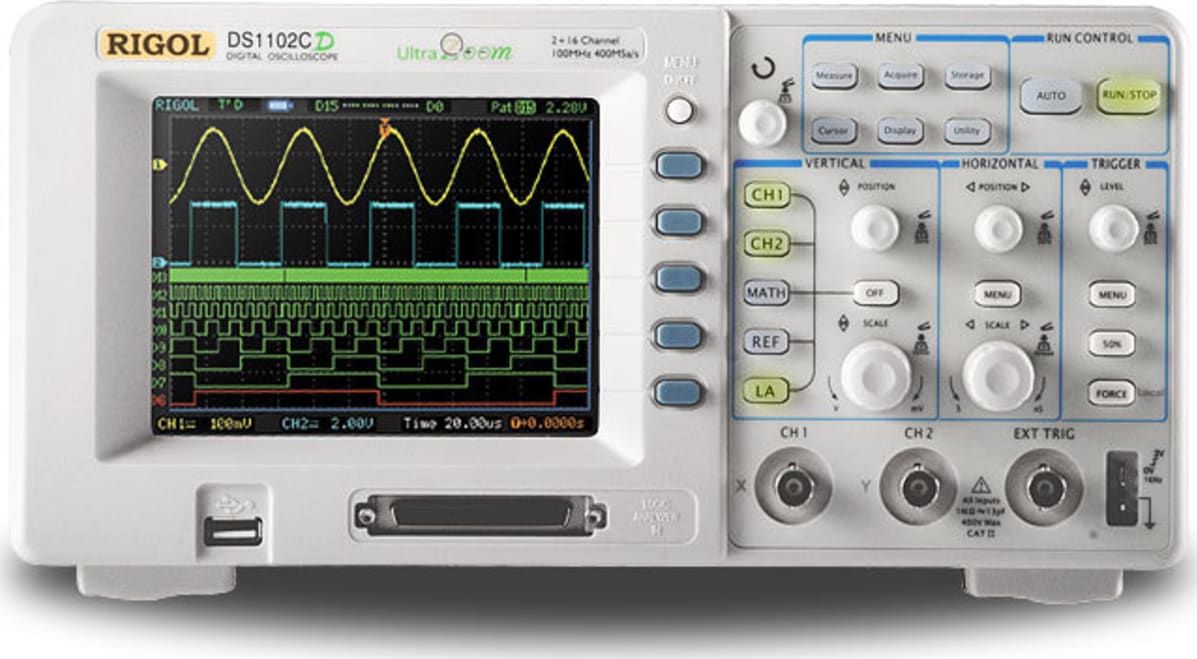

Memory Depth |
1M points (Single Channel), 512K points (Dual Channels), 512K points (Logic Analyzer) |
|
Channels |
Dual Channels + External Trigger + Logic Analyzer |
|
Real-time Sample Rate |
400 MSa/s, 200 MSa/s (Logic Analyzer) |
|
Equivalent Sample Rate |
25 GSa/s |
|
Rise Time |
3.5 ns |
|
Time Base Range |
5 ns/div to 50 s/div |
|
Voltage Level Standards (Logic Analyzer) |
TTL = 1.4 V, CMOS = 2.5 V, ECL = - 1.3 V, USER = - 8.0 V to + 8.0 V |
|
Trigger Modes |
Edge, Video, Pulse Width, Slope, Alternative, Pattern and Duration |
|
Trigger Sources |
CH1, CH2, Ext, Ext/5, AC Line, D0 to D15 |
|
Input Impedance |
1 MΩ || 15 pF |
|
Vertical Sensitivity |
2 mV/div to 5 V/div |
|
Vertical Resolution |
8 bits |
|
Input Coupling |
DC, AC, Ground |
|
Maximum Input Voltage |
400 V (DC + AC peak) |
|
Roll Range |
500 ms/div to 50 s/div |
|
Automatic Measurements |
Vpp, Vamp, Vmax, Vmin, Vtop, Vbase, Vavg, Vrms, Preshoot, Overshoot, Frequency, Period, Rise Time, Fall time, Positive Width, Negative Width, Positive Duty Cycle, Negative Duty Cycle, Delay 1→2 , Delay 1→2 |
|
Cursor Measurements |
Manual, Track and Auto Measure modes. |
|
Math |
Add, Subtract, Multiply, FFT |
|
Storage |
Internal - 10 Waveforms and Setups / USB - BMP, CSV, Waveforms and Setups |
|
I/O |
USB Device, USB Host, RS-232, P/F Out (Isolated) |
|
Display |
TFT (64K, Color LCD), 320 x 234 |
|
Power |
Worldwide Use, 100 ? 240 V / 50 VA Max |
|
Weight |
2.3 kg |
