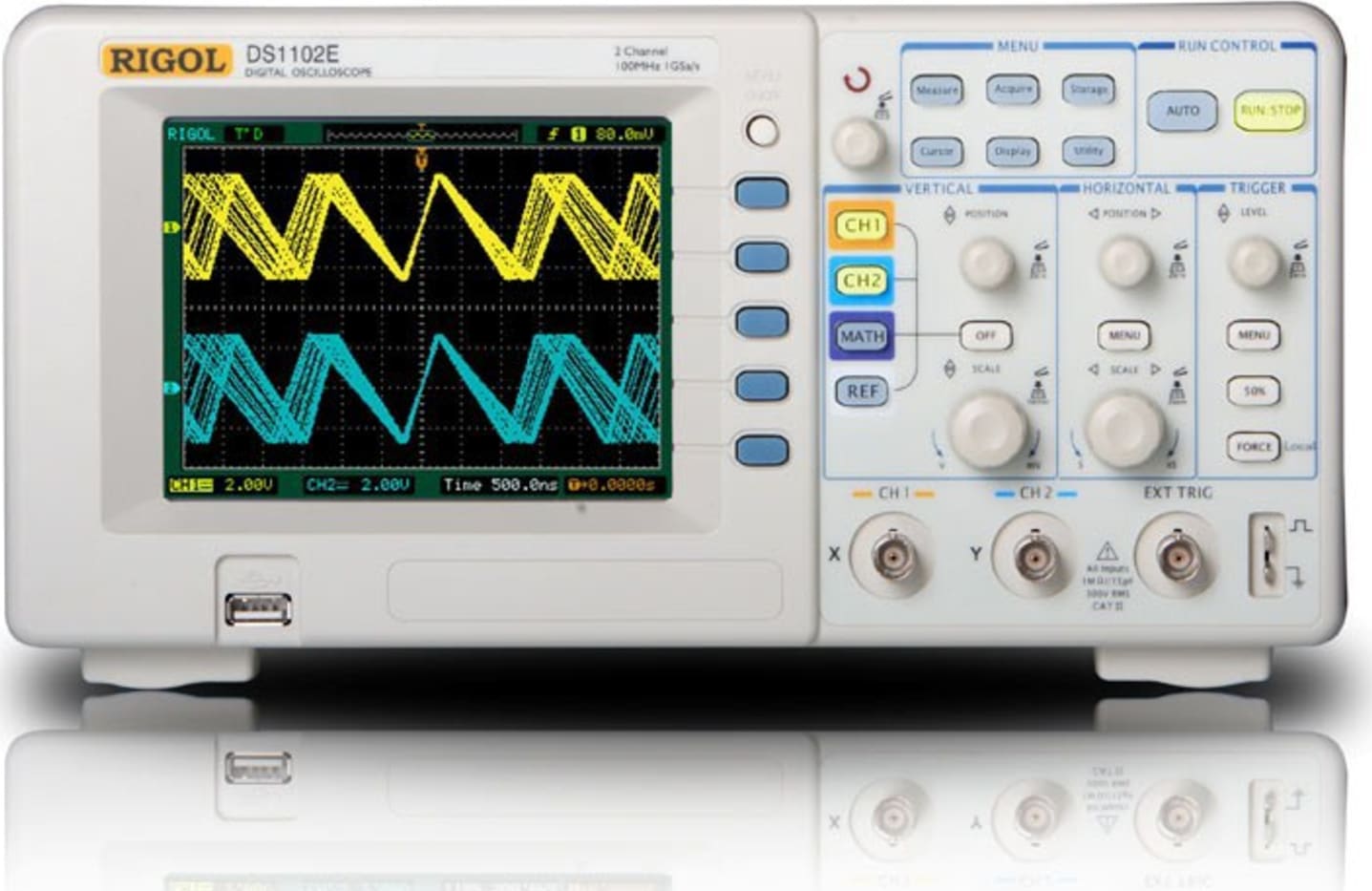

| Memory Depth |
10 kpts (Single Channel), 5 kpts (Dual Channel) |
| Channels |
Dual Channels + External Trigger |
| Real-time Sample Rate |
2 GSa/s (Single Channel) , 1 GSa/s (Dual Channel) |
| Equivalent Sample Rate |
50 GSa/s |
| Rise Time |
3.5 ns |
| Time Base Range |
5 ns/div to 50 s/div |
| Trigger Modes |
Edge, Video, Pulse Width, Slope, Alternative |
| Trigger Sources |
CH1, CH2, Ext, Ext/5, AC Line |
| Input Impedance |
1 MΩ || 15 pF |
| Vertical Sensitivity |
2 mV/div to 10 V/div |
| Vertical Resolution |
8 bits |
| Input Coupling |
DC, AC, Ground |
| Maximum Input Voltage |
300 V (DC + AC peak) |
| Roll Range |
500 ms/div to 50 s/div |
| Automatic Measurements |
Vpp, Vamp, Vmax, Vmin, Vtop, Vbase, Vavg, Vrms, Preshoot, Overshoot, Frequency, Period, Rise Time, Fall time, Positive Width, Negative Width, Positive Duty Cycle, Negative Duty Cycle, Delay 1→2 , Delay 1→2 |
| Cursor Measurements |
Manual, Track and Auto Measure modes. |
| Math |
Add, Subtract, Multiply, FFT |
| Storage |
Internal - 10 Waveforms and Setups |
| I/O |
USB Device, USB Host, RS-232, P/F Out (Isolated) |
| Display |
TFT (64K, Color LCD), 320 x 234 |
| Power |
Worldwide Use, 100 ? 240 V / 50 VA Max |
| Weight |
2.3 kg |
