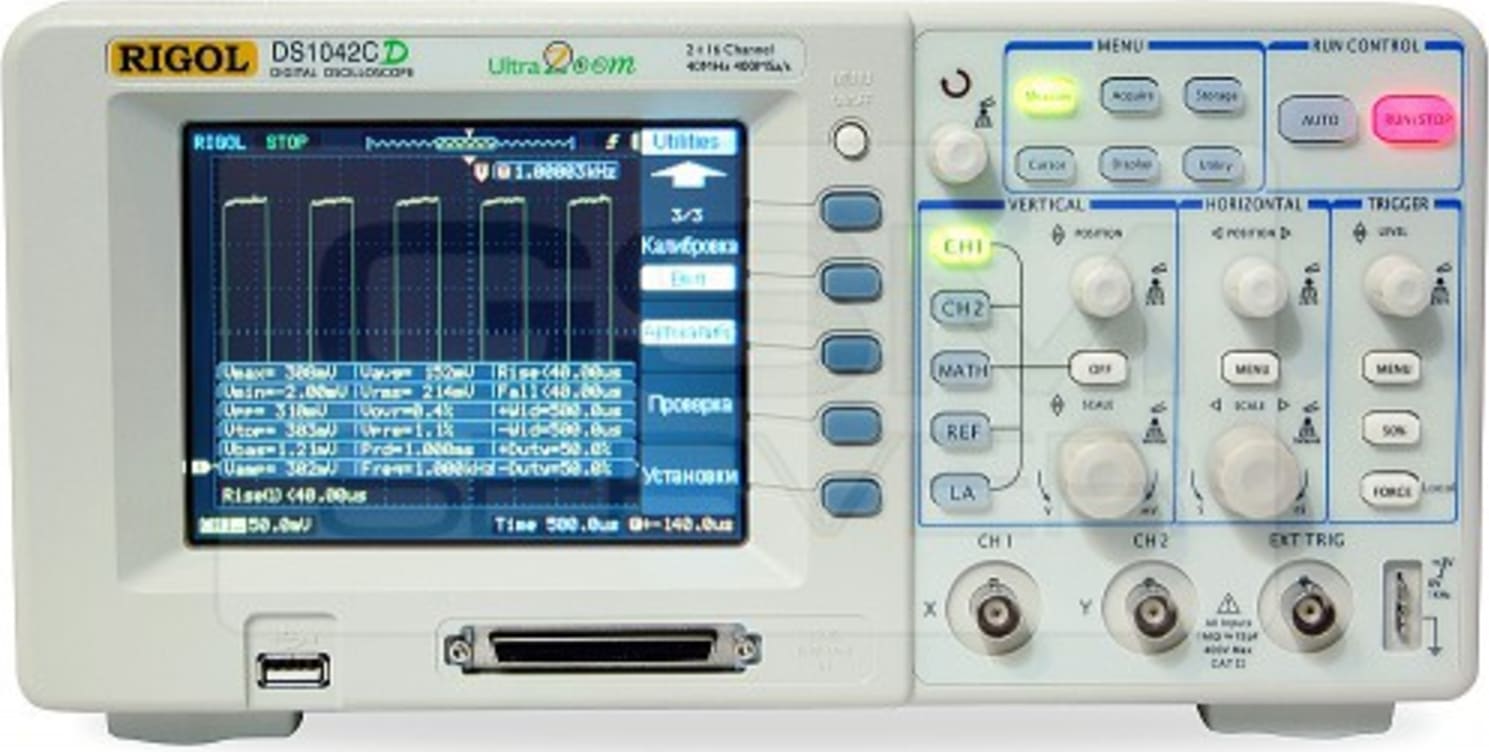

Rigol DS1022CD Discontinued Products

Name: Rigol DS1022CD Discontinued Products
Brand: Rigol
SKU: RigolDS1022CD
Price: 699.00 USD
Availability: InStock

0 reviews | Model: Rigol DS1022CD

Compare

25 MHz MSO - 2 + 16 digital Channels

1M points of memory depth
5.7’ 64K TFT color LCD, bright and vivid waveform display
Versatile trigger modes: Edge, Video, Pulse Width, Slope, Alternative, Pattern and Duration
400 MSa/s maximum real-time sample rate and 25 GSa/s maximum equivalent sample rate
Built-in USB Host to support USB disk, USB printer and direct system upgrade
A true Mixed Signal Oscilloscope with 16 channels Logic Analyzer
Ultra compact design, small dimensions, to save your desktop space

View Product Details

List Price: $699.00

In Stock:

Recommended for you

Versatile Trigger Modes

	Adjustable Trigger Sensitivity: Effectively filter noise from trigger signal and avoid fault trigger.
	Alternative Trigger: Dual Time-Base Display which was never used in analog oscilloscope.
	Rise Edge and Fall Edge Trigger: Mainly used to observe eye-diagram, only in advanced oscilloscopes.
	Slope Trigger: Trigger by signal rise time or fall time.

Human-Oriented Design


Waveform Intensity Adjustable waveform intensity, more effective waveform display	Ultrazoom Survey macroscopically, observe microscopically	File System Easy-to-use, support USB disk and local files storage	Built-in Help System Press current key for 3 seconds to enter help system

Logic Analyzer Module


Logic Analyzer Module It becomes a true Mixed Signal Oscilloscope (MSO) with 16 channels Logic Analyzer (LA). LA is divided into two groups: D7-D0, D15-D8. Each works separately.	Pattern Trigger Trigger condition is the combination of level and edge.	Duration Trigger Combination of Pattern Trigger and Pulse Width Trigger.

Memory Depth	1M points (Single Channel), 512K points (Dual Channels), 512K points (Logic Analyzer)
Channels	Dual Channels + External Trigger + Logic Analyzer
Real-time Sample Rate	400 MSa/s, 200 MSa/s (Logic Analyzer)
Equivalent Sample Rate	25 GSa/s
Rise Time	14 ns
Time Base Range	20 ns/div to 50 s/div
Voltage Level Standards (Logic Analyzer)	TTL = 1.4 V, CMOS = 2.5 V, ECL = - 1.3 V, USER = - 8.0 V to + 8.0 V
Trigger Modes	Edge, Video, Pulse Width, Slope, Alternative, Pattern and Duration
Trigger Sources	CH1, CH2, Ext, Ext/5, AC Line, D0 to D15
Input Impedance	1 MΩ \|\| 15 pF
Vertical Sensitivity	2 mV/div to 5 V/div
Vertical Resolution	8 bits
Input Coupling	DC, AC, Ground
Maximum Input Voltage	400 V (DC + AC peak)
Roll Range	500 ms/div to 50 s/div
Automatic Measurements	Vpp, Vamp, Vmax, Vmin, Vtop, Vbase, Vavg, Vrms, Preshoot, Overshoot, Frequency, Period, Rise Time, Fall time, Positive Width, Negative Width, Positive Duty Cycle, Negative Duty Cycle, Delay 1→2 , Delay 1→2
Cursor Measurements	Manual, Track and Auto Measure modes.
Math	Add, Subtract, Multiply, FFT
Storage	Internal - 10 Waveforms and Setups / USB - BMP, CSV, Waveforms and Setups
I/O	USB Device, USB Host, RS-232, P/F Out (Isolated)
Display	TFT (64K, Color LCD), 320 x 234
Power	Worldwide Use, 100 ? 240 V / 50 VA Max
Weight	2.3 kg
