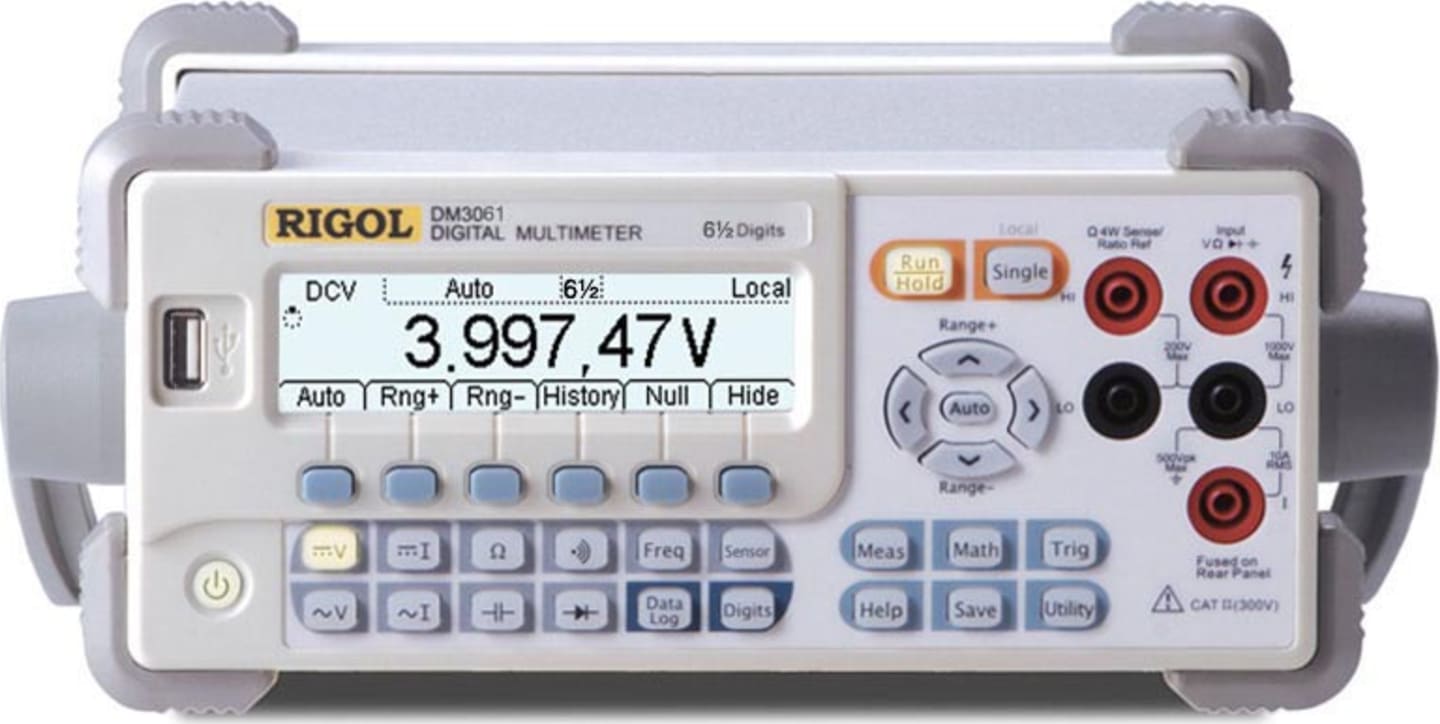

Rigol DM3061 Discontinued Products

Name: Rigol DM3061 Discontinued Products
Brand: Rigol
SKU: RigolDM3061
Price: 795.00 USD
Availability: InStock

0 reviews | Model: Rigol DM3061

Compare

6 1/2 Digit DVM w USB

16 channels data inspection module: Data acquisition, inspection and programable auto measure.
256 × 64 pixels LCD display, to support muilti-display and screen menu
I/O: GPIB, LAN, RS-232 and USB Device
Built-in USB Host to support USB disk and USB printer
Test resolution: 6½ digits (2,400,000-count), 5¾ digits (500,000-count)
50 K/s maximum sample rate, 1M points of memory depth

View Product Details

List Price: $795.00

In Stock:

View Payment Options

Recommended for you

Rear Panel

1. LAN/GPIB interface, remote access and test through LAN interface
2. USB Device to support virtual terminal display and control
3. Inspection Module of 16 channels

Advanced Features

Test resolution: 6½ digits (2,400,000-count), 5¾ digits (500,000-count)
50 K/s maximum sample rate, 1M points of memory depth
256 × 64 pixels LCD display to support multi-display and screen menu
16 channels inspection module and Ultralogger software
Input resistance > 10 GO: DC voltage range up to 48 V (± 24 V)
True RMS AC voltage and current test
Built-in 10 setups storage, 10 data storage, 10 any sensor storage
I/O: GPIB, LAN, RS-232, USB Device
Integrated USB Host to support USB disk and USB printer
Easy to use and flexible control software
26 test functions:
- DC voltage and current, AC voltage and current, 2-wire and 4-wire resistance, Capacitance
- Continuity Test, Diode Test
- Frequency, Period, Ratio Test, Temperature, Any Sensor Test
- High Limit, Low Limit and High/Low Limit
- Math: Max, Min, Avg, Null, dBm, dB
- Data Acquisition: Data Record, Inspection, Programmable Auto Measure

Standard Accesories


Power Cord	Test Lead Kit	USB Data Wire	User Manual

Model	DM3061	DM3062	DM3063	DM3064
Resolution	6½
Configuration	Null	LAN/GPIB	IM	LAN/GPIB and IM
Model	DM3051	DM3052	DM3053	DM3054
Resolution	5¾
Configuration	Null	LAN/GPIB	IM	LAN/GPIB and IM

Performance Characteristics

Test Resolution - 6½
DC Voltage	200 mV to 1000 V Range: 200 mV, 2 V, 20 V, 200 V, 1000 V
AC Current (RMS)	20 mA to 10 A Range: 20 mA, 200 mA, 1 A, 10 A
DC Current	20 mA to 10 A Range: 20 mA, 200 mA, 1 A, 10 A
AC Voltage (RMS)	2 V to 750 V Range: 2 V, 20 V, 200 V, 750 V
Resistance (2-wire and 4-wire)	200 Ω to 100 MΩ Range: 200 Ω, 2 kΩ, 20 kΩ, 200 kΩ, 2 MΩ, 10 MΩ, 100 MΩ
Capacitance	2 nF to 10000 μF Range: 2 nF, 20 nF, 200 nF, 2 μF, 20 μF, 200 μF, 10000 μF
Test Resolution - 5¾
DC Voltage	400 mV to 1000 V Range: 400 mV, 4 V, 40 V, 400 V, 1000 V
DC Current	40 mA to 10 A Range: 40 mA, 400 mA, 1 A, 10 A
AC Voltage (RMS)	4 V to 750 V Range: 4 V, 40 V, 400 V, 750 V
AC Current (RMS)	40 mA to 10 A Range: 40 mA, 400 mA, 1 A, 10 A
Resistance (2-wire and 4-wire)	400 Ω to 100 MΩ Range: 400 Ω, 4 kΩ, 40 kΩ, 400 kΩ, 4 MΩ, 10 MΩ, 100 MΩ
Capacitance	4 nF to 10000 μF Range: 4 nF, 40 nF, 400 nF, 4 μF, 40 μF, 10000 μF
Common Parameters
Continuity Test	2 kΩ Range, Threshold Range: 1 Ω to 2 kΩ
Diode Test	2 V Range, 1 mA test current, 2.4 V Maximum forward voltage drop
Thermocouple and Any Sensor	Support multiple ANSI standard thermocouple and the sensor with voltage, current or resistance output
Frequency and Period	3 Hz (0.333 s) to 300 kHz (3.33 μs)
Math	Null, Min/Max/Avg, dBm, dB, Limit Test
Data Acquisition	Data Record, Inspection, Programmable Auto Measure
Other Functions	Auto Reading Hold, Ratio Test, Built-in 10 setups storage, 1M points of memory depth
Maximum Sample Rate	50 K/s (High-speed Data Record)
USB Interface	USB Host, to support USB disk and USB printer; USB Device
Other Interface	RS-232
Display	256×64 pixels LCD Display to support multi-display, menu, multi-language help and waveform display
Data Acquisition and Virtual Machine Software	Support Microsoft® Windows 98, Windows Me, Windows 2000, Windows XP
Maximum Input	1,000 V DC, 750 Vrms AC, DC and AC maximum external current 10 A, internal current 12 A Double Fuses
Shock and Vibration	MIL-T-28800, Type III, Class 5
Power	115 / 230 V, 45 Hz – 65 Hz, 20 VA Max
Weight	2.5 kg
