Rigol DG3101 Discontinued Products

Name: Rigol DG3101 Discontinued Products
Brand: Rigol
SKU: RigolDG3101
Price: 2495.00 USD
Availability: InStock

0 reviews | Model: Rigol DG3101

Compare

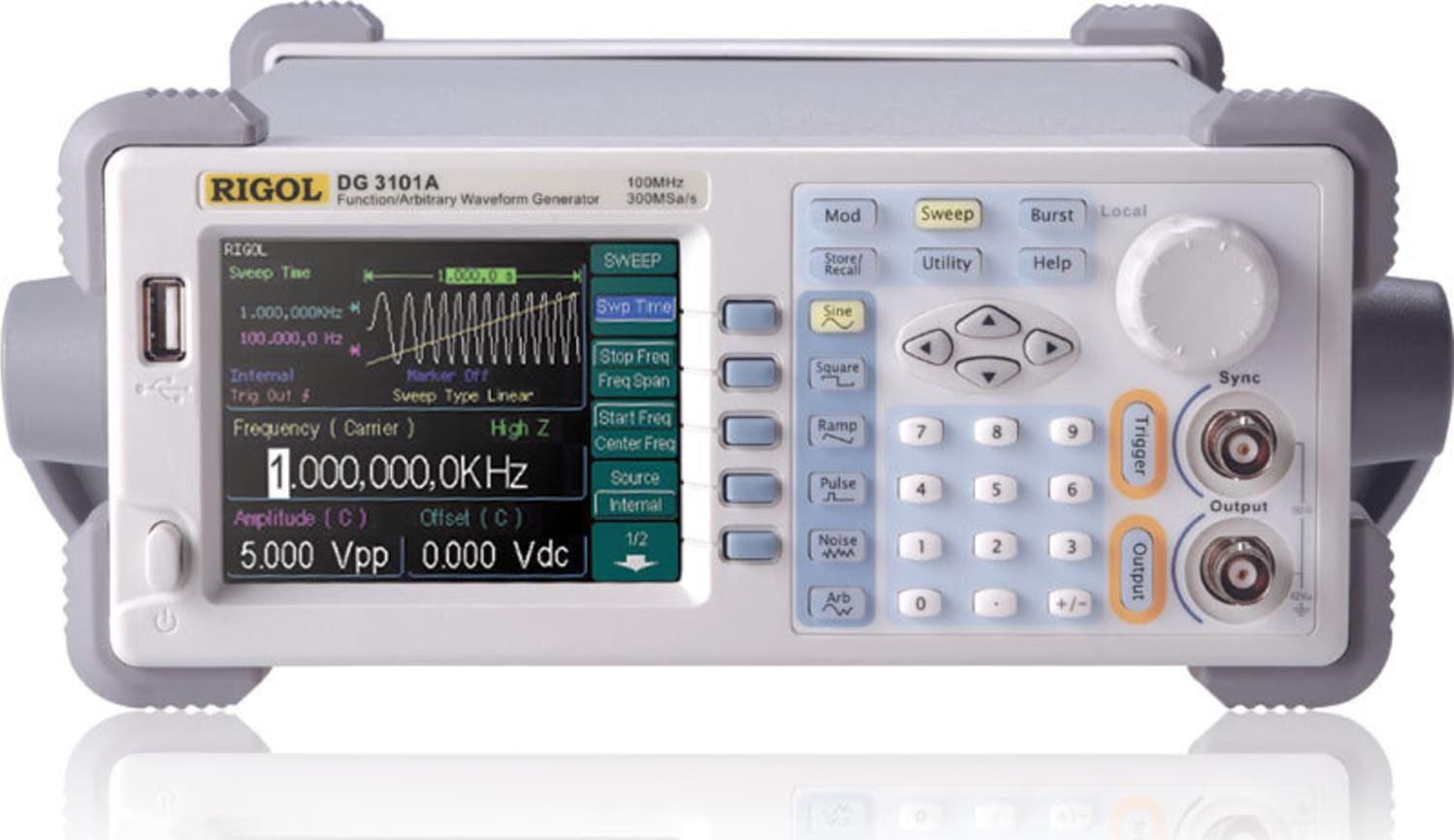

100MHz Function Generator (USB/RS-232)

The world’s first Mixed Signal Generator with digital logic output (16 data channels and 2 clock channels)
Built-in pulse generator with adjustable width and edge
Built-in PWM generator
Versatile interface configuration: USB Device, LAN, GPIB, RS-232; USB Host to support USB disk, USB printer and seamless connectivity with DS series products
Advanced DDS technology, 300 MSa/s maximum sample rate and 120 MHz maximum output rate, 14 bits vertical resolution, 1M points of memory depth
Arbitrary Waveforms

View Product Details

List Price: $2,495.00

In Stock:

Recommended for you

Rear Panel

1. Clock reference, multiple machines synchronization
2. Interface: LAN/GPIB interface, web remote access
3. Optional configuration: Digital Logic Output Module, true Mixed Signal Generator
4. USB Device, virtual terminal display and control
5. External source input, external modulation and trigger

Typical Output

Digital Logic Output Module


Digital Logic Output Module	WEB Access Interface

*This Module is Optional

Standard Accesories


Power Cord	USB Data Wire	Ultrawave Software	User Manual

Model	DG3121	DG3061	DG3101	DG3121A	DG3061A	DG3101A
Maximum Output Frequency	120MHz	100MHz	60MHz	120MHz	100MHz	60MHz
I/O	USB Device, RS-232			USB Device, RS-232, LAN/GPIB

Performance Characteristics

Waveforms
Standard Waveforms	Sine, Square, Ramp, Pulse, Noise, Exponential Rise, Exponential Fall, Sin(x)/x, Cardiac, DC
Arbitrary Waveform
Waveform Length	1 to 512K points
Non-Volatile Memory	Maximum 4 waveforms
Pulse
Period	100.0 ns to 2000.0 s
Pulse Width	20.0 ns to 1999.9 s
Variable Edge Time	10.0 ns to 1.00 ms
Vertical Resolution	14 bits
Sample Rate	100 MSa/s
Frequency Characteristics
Sine	1 µHz to 40 MHz
Square	1 µHz to 40 MHz
Ramp	1 µHz to 400 kHz
White Noise	20 MHz of bandwidth
Resolution	1 µHz; except Pulse, 5 bits
Other Characteristics
Amplitude (into 50 Ω)	10 mVpp to 10 Vpp
Accuracy (1 kHz)	± 1% of setting ± 1 mVpp
AM Modulation
Modulating Waveforms	Any internal waveform
Modulating Frequency	2 mHz to 20 kHz
Depth	0% to 120%
FM Modulation
Modulating Frequency	2 mHz to 20 kHz
Deviation	DC to 40 MHz
Modulating Waveforms	Any internal waveform

FSK Modulation
Internal Frequency	2 mHz to 1 MHz
Frequency Range	1 µHz to 40 MHz
PM Modulation
Modulating Waveforms	Any internal waveform
Modulating Frequency	2 mHz to 20 kHz
Deviation	0° to 360°
PWM
Carrier Waveforms	Pulse
Modulating Source	Internal/External
Internal Modulation	Sine, Square, Ramp, Noise, Arbitrary Waveform(2 mHz to 20 kHz)
Duty Cycle	0% to 100%
Sweep
Type	Linear or Logarithmic
Direction	Up or Down
Start/Stop Frequency	100 µHz to 40 MHz
Sweep Time	1 ms to 500 s
Marker	Fall Edge of Sync Signal
Burst
Frequency	1 µHz to 40 MHz
Burst Count	1 to 1,000,000 cycles or infinite
Start/Stop Phase	- 360°to + 360°
Internal Period	1 µs to 500 s
Other Parameters
Clock Reference	10 MHz
I/O	USB Host,USB Device,RS-232
Built-in Help	Multiple languages
