Rigol T2R1000-OB Adapter Kits

Name: Rigol T2R1000-OB Adapter Kits
Brand: Rigol
SKU: RigolT2R1000-OB
Price: 314.00 USD
Availability: InStock

0 reviews | Catalog: T2R1000-OB | Model: Rigol T2R1000-OB

Compare

Active probe adaptor for connecting TekProbe-BNC probes to a DS6000 or MSO/DS4000 - <span style="color:#FF0000;"><strong>This open box item may be missing original packaging, missing some small accessories or a lightly used demo unit.</strong></span>

This open box item may be missing original packaging, missing some small accessories or a lightly used demo unit.
Converts your Tek probes with TekProbe-BNC type connector
Supplies power calibration and DC offset functions as described in datasheet
Quickly fits onto front of Rigol scope once Tek probe is connected to adapter
RIGOL Scopes supporting this are all: DS4000-series, MSO4000-series, DS6000-series

View Product Details

List Price: $314.00

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

Adapter Kits

for the Rigol T2R1000-OB

Cal Test CT4103 Universal Adapter Kit

Catalog: CT4103

(9)

In Stock!

Add to Cart

Rigol T2R1000 active probe adaptor can be used to connect the TekProbe-BNC level II probe with RIGOL DS6000 series or MSO4000/DS4000 series digital oscilloscope.

T2R1000 converts the TekProbe-BNC interface to RIGOL-Probe interface and supplies power, calibration and DC offset adjustment function for probe.

Connection Method
Firstly, connect the probe with TekProbe-BNC interface to T2R1000. Then, connect the other terminal of T2R1000 to the analog input terminal of the oscilloscope with RIGOL-Probe.

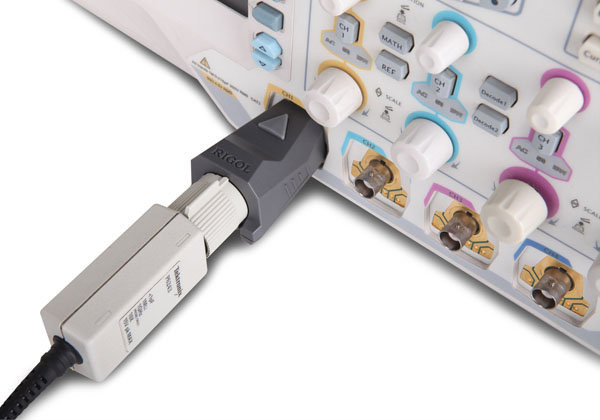

Rigol T2R1000 Connection Method

Selecting the corresponding probe model from the oscilloscope menu, the scope will automatically set the input impedance, attention ratio and unit. In additional, connecting the probe input terminal to ground and selecting self-calibration function from the oscilloscope menu can provide zero offset calibration function for the probes which support calibration function.

Bandwidth	>4GHz (T2R1000 only)
Power Supplies	±5V, ±15V
Max Output Current	150mA
DC Offset Range	<±1V (from the output terminal of T2R1000)
Max Input Voltage	42Vpk, 30Vrms
Temperature Operation	0℃-50℃; Non-operation: -40℃-70℃
Humidity	95%RH at 50℃
Altitude	4000m
Size	60mm (length)×33.7mm (width)×29.5mm (Depth)
Weight	132g (with package); 41g (without package)

Tech Specs

General Attributes
Shipping Weight	0.29101 LBS
Product Height	29.5 MM (1.16 IN)
Product Length	60 MM (2.36 IN)
Product Width	33.7 MM (1.33 IN)
Shipping Height	3.00 IN
Shipping Length	6.00 IN
Shipping Width	6.00 IN
Country of Origin	China
Test Equipment General Attributes
HTS/Schedule B Number	9030908961
ECCN Number	EAR99
