Rigol DG2000 series function/arbitrary waveform generators use Direct Digital Synthesis (DDS) technology. They could generate accurate, stable, clean, low distortion signals.
Advanced Features
- Optional digital logic module: more actual mixed signals can be recurred together with analog channels
- DDS technology: Output signals become more accurate and stable with lower distortion
- 300 MSa/s of sample rate, 14 bits of vertical resolution, 1M points of memory depth
- 10 standard waveforms: Sine, Square, Ramp, Pulse, Noise, Exponential Rise, Exponential Fall, Sin(x)/x, Cardiac, DC
- Arbitray waveform defined by user
- Versatile modulation and variety of waveforms: AM, FM, PM, FSK, PWM, SWEEP, BURST
- Versatile input and output signals: Waveforms output, Digital synchronous signals output, External modulation source, External clock reference (10 MHz), External trigger and internal clock output (10 MHz)
- I/O: USB Device, RS-232, GPIB, LAN
- USB Host, to support USB disk, USB printer and direct system upgrade
- Seamless connectivity with DS series digital oscilloscopes: Lossless recurrence of stored waveforms obtained from DS oscilloscopes
- Multi-language user interface, built-in help system

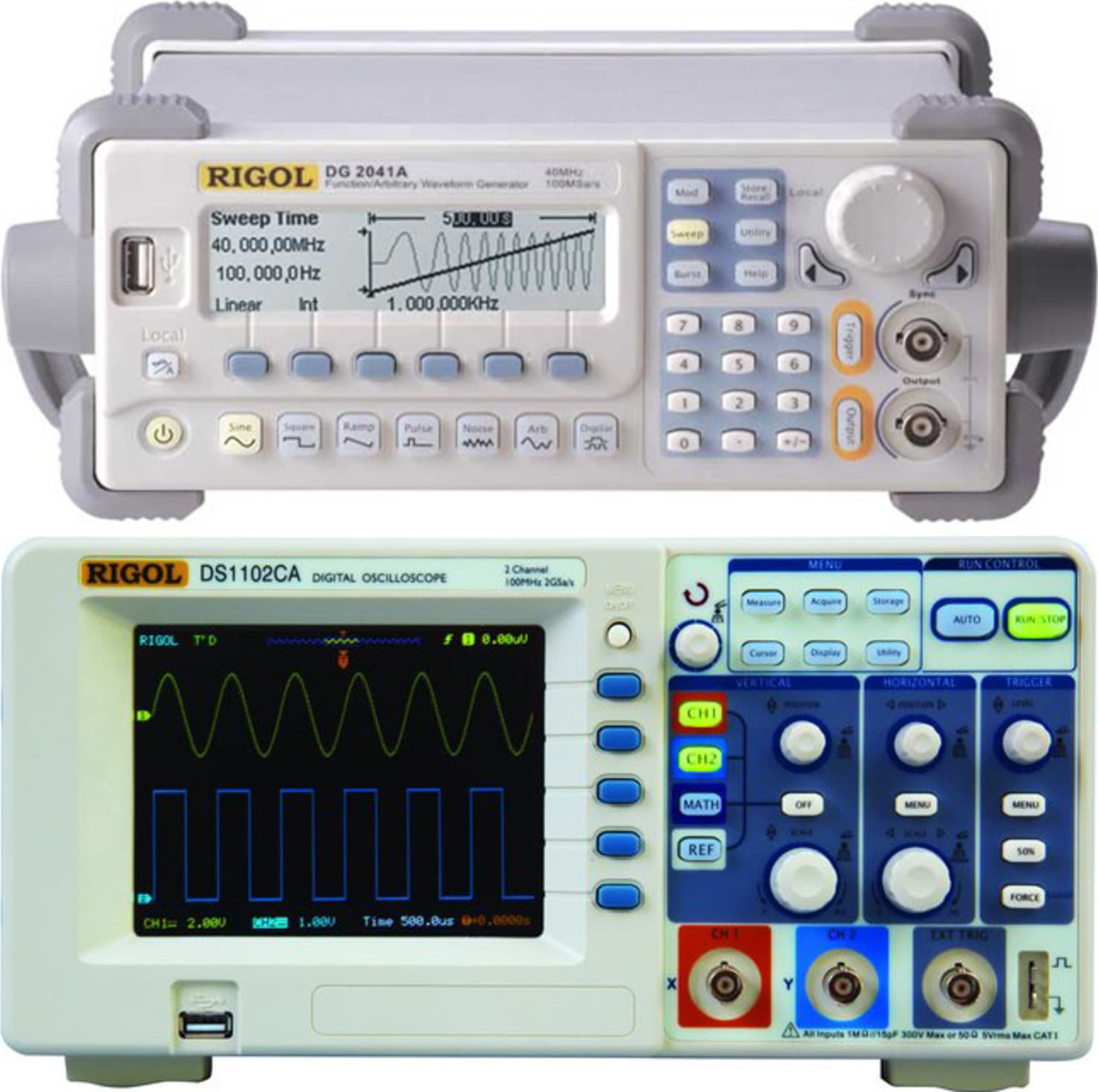

Rigol DS1102CA 100 MHz Digital Oscilloscope
The Rigol DS1000A series is the first oscilloscope with a 2GSa/s real-time sample rate, and up to 300MHz bandwidth. These high performances ensure capture of real-time instantaneous signals and observation of detailed repeated signals. The DS100A series have up to 2000 wfms/s refresh rate, which enables users to capture signals quickly. The information is displayed on a bright 64K color 5.7" color LCD. FOr the price, nothing compares to the performance and value of the DS1000A series of oscilloscopes.
Application Areas
- Design and Debug
- Manufacturing
- Education and Training
- Service and Repair
The DS1000CA Series Digital Oscilloscopes set a new standard for technology and capability. With features including 2GSa/s sample rate, FFTs, record and replay, roll mode, alternate trigger mode, adjustable trigger sensitivity, and PictBridge printing the DS1000CA is the new bench standard.
Intuitive User Interface
- Display Intensity Control Adjustable display intensity makes the waveform observations easier
- File System Easy to Use file system supports USB flash drive and local file storage
- Built-in Help System
- Easy access to the Built-in help system by pressing and holding the key for 3 seconds
Advanced trigger modes
- Rising & Falling Edge trigger Mainly used to view special signals such as eye-diagrams, formally only available in more advanced digital oscilloscopes
- Pulse Width Trigger Triggers on the conditions of special pulses
- Slope Trigger Triggers on the signals rise time or fall time that is user defined
- Video Trigger Trigger according to the selected video signal
- Alternate Trigger Provides a true dual time base display that was common in analog oscilloscopes
