Active, differential, 800 MHz probe

Bandwidth: DC~800MHz
Damping factor: 10:1
Input resistance: Differential: 50 kΩhm ±2%
Single-ended: 24 kΩhm ±2%
Maximum Input voltage: ~30 Vp; CAT I

View Product Details

Your Price: $2,099.00

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded.
Request a Demo

View Payment Options

Request Quote

Items in This Series



Product	Rigol RP7080 Active, differential, 800 MHz probe	Rigol RP7150 1.5 GHz Bandwidth Active Probe Kit option for DS6000 Series Oscilloscopes	Rigol RP7080S Active single-ended, 800 MHz probe for DS6000 pr DS/MSO4000 Series Oscillosc ...	Rigol RP7150S Active single-ended,1.5GHz probe for DS6000 pr DS/MSO4000 Series Oscilloscop ...
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Rigol RP7080 - 800 MHz Active Differential Oscilloscope Probe

Bandwidth: DC~800MHz
Damping factor: 10:1
Input resistance: Differential: 50 kΩhm ±2%
Single-ended: 24 kΩhm ±2%
Maximum Input voltage: ~30 Vp; CAT I

RP7000, with more than 1.5GHz bandwidth, is an active probe solution for high frequency application. It can be used to measure differential and single-ended signals with better common mode rejection.

RP7000 uses plug-on socket probe head and supports 4 types of interchangeable probe heads to optimize the performance and usability. Besides, its replaceable probe tip prolongs the service life of the probe and the probe tip spacing can be precisely adjusted to fit different test point spacing.

The RP7000 provides various accessories and options and multiple replaceable components which make it applicable to be used in different tests and measurements.

For digital oscilloscopes, the signal under test needs to be connected to the measurement channel via various oscilloscope probes or 50 ohm cables.The Probing is very important to making quality measurements. If the probe performance is not adequate or if you did not select the proper probe for your application, you will see distorted or misleading signals on your oscilloscope.

There are two kinds of probes, one is passive probe, another one is active probe. active probe requires power while passive probe does not. For general-purpose measurements(<600MHz), passive high-impedance resistor divider probes are good choices in general. For high-frequency applications (>600 MHz), active probes are the way to go. They cost more than passive probe and their input voltage is limited, but because of their significantly lower capacitive loading, they give you more accurate insight into fast signals.

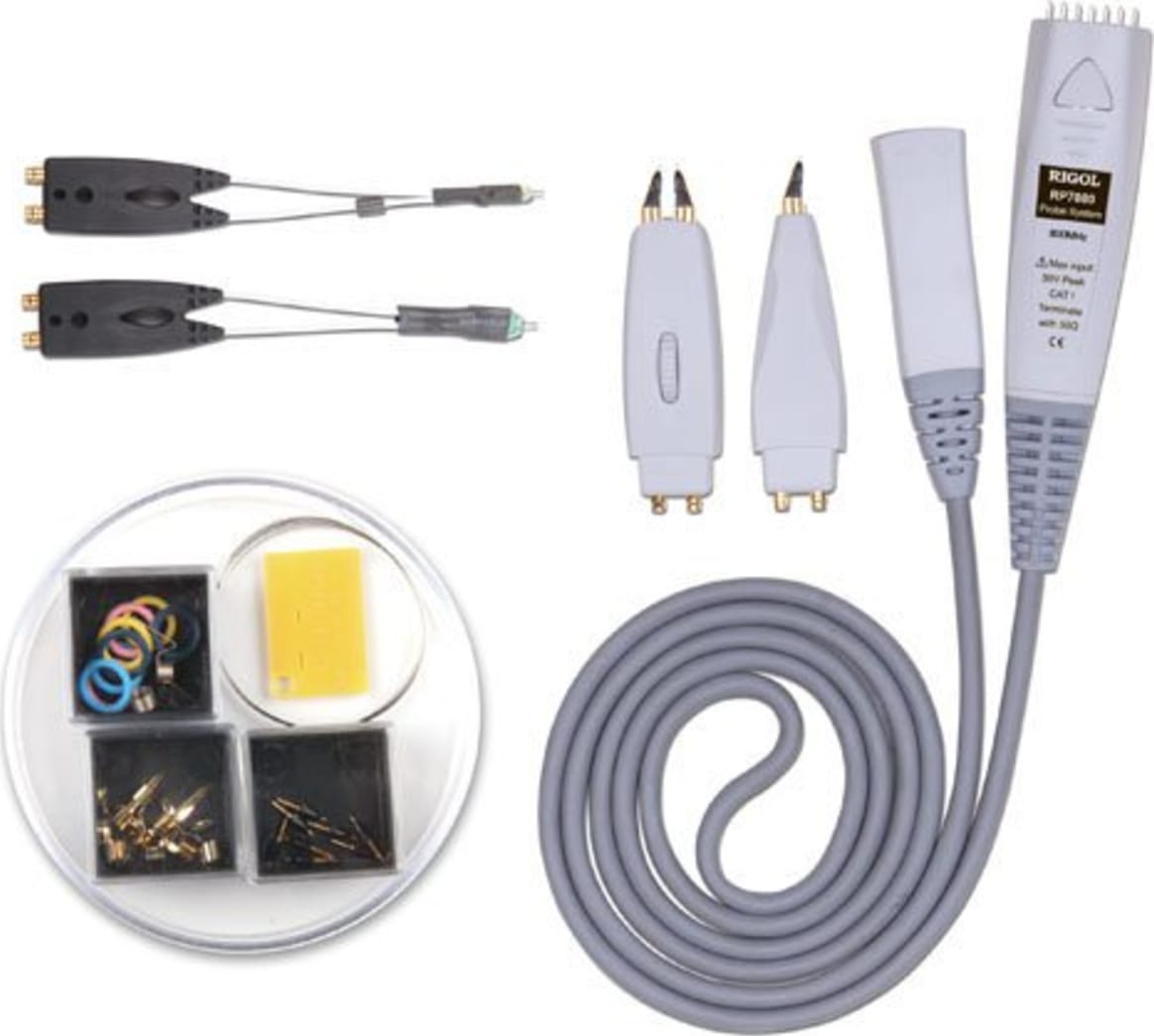

PCK100 Active Differential Probe Calibration Kit
RP7150 Active Probe Amplifier
Solder-in Differential Probe Head
Solder-in Single-ended Probe Head
Hand-held Differential Probe Head
Hand-held Single-ended Probe Head
0.2mm Nickel Wire
Trim Gauge
91Ω Probe Tip
Straight Acuminate Ground Collar
Curved Acuminate Ground Collar
Straight Dentiform Ground Collar
Curved Dentiform Ground Collar
Marker Rings (Yellow/Pink/Light Blue/Dark Blue)
User’s Guide
Probe Bag
Storage Box

Technical Specification
Item	RP7150	RP7080
Bandwidth	>1.5GHz	>0.8GHz
Rise Time	<265ps	<465ps
System Bandwidth	1GHz (DS6104 or DS6102)	0.8GHz (DS6104 or DS6102)
Input Capacitance	<1pF
Input Resistance	50kΩ±2% Differential 25kΩ±4% Single-ended
Input Dynamic Range	±6.25V
Input Common mode Range	±6.75V DC to 100Hz ±1.25V >100Hz
Common Mode Rejection Ratio	>45dB@1MHz
Zero Offset Error [1]	<30mV before calibration <5mV after calibration
Offset Voltage Range	±12V
Offset Accuracy [1]	<3% of current range before calibration <1% of current range after calibration
Input Noise	45mVpp
Propagation Delay	7ns
Max Input Voltage	30V Peak CAT I [2]
Electrostatic Protection	>8kV

General Characteristics
Environmental Conditions	Operating	Non-operating
Temperature	+5°C to +40°C	-40°C to +70°C
Humidity	0 RH to 80% RH	0 RH to 90% RH
Altitude	4600m	15300m
Power Consumption	1.2W	N/A
Weights	147g±10g [3] 530g±50g [4]
Wire Length	1.4m
[1] Typical value. The specifications would change when different scales are selected. [2] CAT I and CAT II Definitions Installation Category (Overvoltage Category) I: signal level, special equipment or parts of equipment, telecommunication, electronic, etc., with smaller transient voltages than installation category Overvoltage Category) II. Installation Category (Overvoltage Category) II: local level, appliance, portable equipment etc., with smaller transient voltages than installation category (Overvoltage Category) III. [3] The weight of the probe with the hand-held differential probe head. [4] The weight of the RP7000 series Active Probe Kit with the probe bag.

Rigol Probes - Overview Specification
Model number	Attenuation ratio	Bandwidth	Input R	Max. Input voltage	Rigol scope compatibility	Recommended applications
Passive high resistance probe
RP2200	1:1 or 10:1	1x: DC...7 MHz 10x: DC...150 MHz	1x: 1 MΩhm ±2% 10x: 10 MΩhm ±2%	1x: CAT II 150 VAC 10x: CAT II 300 VAC	All Rigol scopes	Small signal test (1x), general purpose test
RP3300A	10:1	10x: DC...350 MHz	10x: 10 MΩhm ±2%	10x: CAT II 300 VAC	All Rigol scopes	Small signal test (1x), general purpose test
RP3500A	10:1	DC...500 MHz	10 MΩhm ±2%	CAT II 300 VAC	All Rigol scopes	General purpose test
RP5600A	10:1	DC...600 MHz	10 MΩhm ±2%	CAT II 300 VAC	DS4000 series*, DS6000 series	General purpose test
Passive low resistance probe
RP6150A	10:1	DC...1.5 GHz	500 Ωhm ±10 Ωhm	CAT I 7 VAC	DS4000 series*, DS6000 series	High frequency signal ended small signal test
Passive high voltage probe
RP1300H	100:1	DC...300 MHz	100 MΩhm	CAT I 2000 V(DC+AC) CAT II 1500 V(DC+AC)	All Rigol scopes	High voltage test
RP1010H	1000:1	DC...40 MHz	100 MΩhm, 3 pF ±0.5 pF	0...10 kVDC, AC pulse ≤20 kVpp/sine =7 kVRMS	All Rigol scopes	High voltage test
RP1018H	1000:1	DC....150 MHz	200 MΩhm, 1.5 pF	CAT II 18 kV(DC+AC) CAT III 12 kV(ACRMS)	All Rigol scopes	High voltage test
Active differential probe
RP7150	10:1	DC...1500 MHz	Differential 50 kΩhm ±2% Single-ended 25 kΩhm ±2%	~30 Vp; CAT I	DS4000 series*, DS6000 series	Differential/single-ended high frequency signal test
RP7080	10:1	DC...800 MHz	Differential 50 kΩhm ±2% Single-ended 24 kΩhm ±2%	~30 Vp; CAT I	DS4000 series*, DS6000 series	Differential/single-ended high frequency signal test
Active single-ended probe
RP7150S	10:1	DC...1500 MHz	100 kΩhm ±1%	~30 Vp; CAT I	DS4000 series*, DS6000 series	Single-ended high frequency signal test
RP7080S	10:1	DC...800 MHz	100 kΩhm ±1%	~30 Vp; CAT I	DS4000 series*, DS6000 series	Single-ended high frequency signal test
High voltage differential
RP1025D	x20, x50, x200	25 MHz	Differential 4 MΩhm/1.2 pF Single-ended 2 MΩhm/2.3 pF	x20: =140 V_pp, (45 V_rms or DC) x50: =350 V_pp, (110 V_rms or DC) x200: =1400 V_pp, (450 V_rms or DC)	All Rigol scopes	High voltage differential/single-ended signal test
RP1050D	x100, x200, x1000	50 MHz	Differential 100 MΩhm/1.2 pF Single-ended 50 MΩhm/2.3 pF	x100: =700 V_pp, (230 V_rms or DC x200: =1400 V_pp, (460 V_rms or DC) x500: =3500 V_pp, (1140 V_rms or DC) x1000: =7000 V_pp, (2300 V_rms or DC)	All Rigol scopes	High voltage differential/single-ended signal test
RP1100D	x100, x200, x1000	100 MHz	Differential 100 MΩhm/1.2 pF Single-ended 50 MΩhm/2.3 pF	x100: =700 V_pp, (230 V_rms or DC) x200: =1400 V_pp, (460 V_rms or DC) x500: =3500 V_pp, (1140 V_rms or DC) x1000: =7000 V_pp, (2300 V_rms or DC)	All Rigol scopes	High voltage differential/single-ended signal test
* incl. MSO4000

Tech Specs

Accessories/Probes/Oscilloscope Probes/Active Differential Oscilloscope Probes Template
Rise Time	465 ps (0.465 ns)
CAT Voltage Rating	I, II, III
Test Equipment General Attributes
Unique Features	Bandwidth >0.8GHz Rise Time 465ps Altitude 15300m Max Input Voltage 30V Peak CAT I
Product Weight	1.16 LBS
Product Height	5.25 IN
Product Length	13.50 IN
Product Width	9.75 IN
Data Logging	No
HTS/Schedule B Number	9030908961
ECCN Number	3A992.a
Country of Origin	China
