Rigol RP3300A Oscilloscope 300 MHz Passive High Resistance Probe

Name: Rigol RP3300A Oscilloscope 300 MHz Passive High Resistance Probe
Brand: Rigol
SKU: RigolRP3300A
Price: 47.00 USD
Availability: InStock
Rating: 4.00 (3 reviews)

4 (3 Reviews) | Catalog: RP3300A | Model: Rigol RP3300A

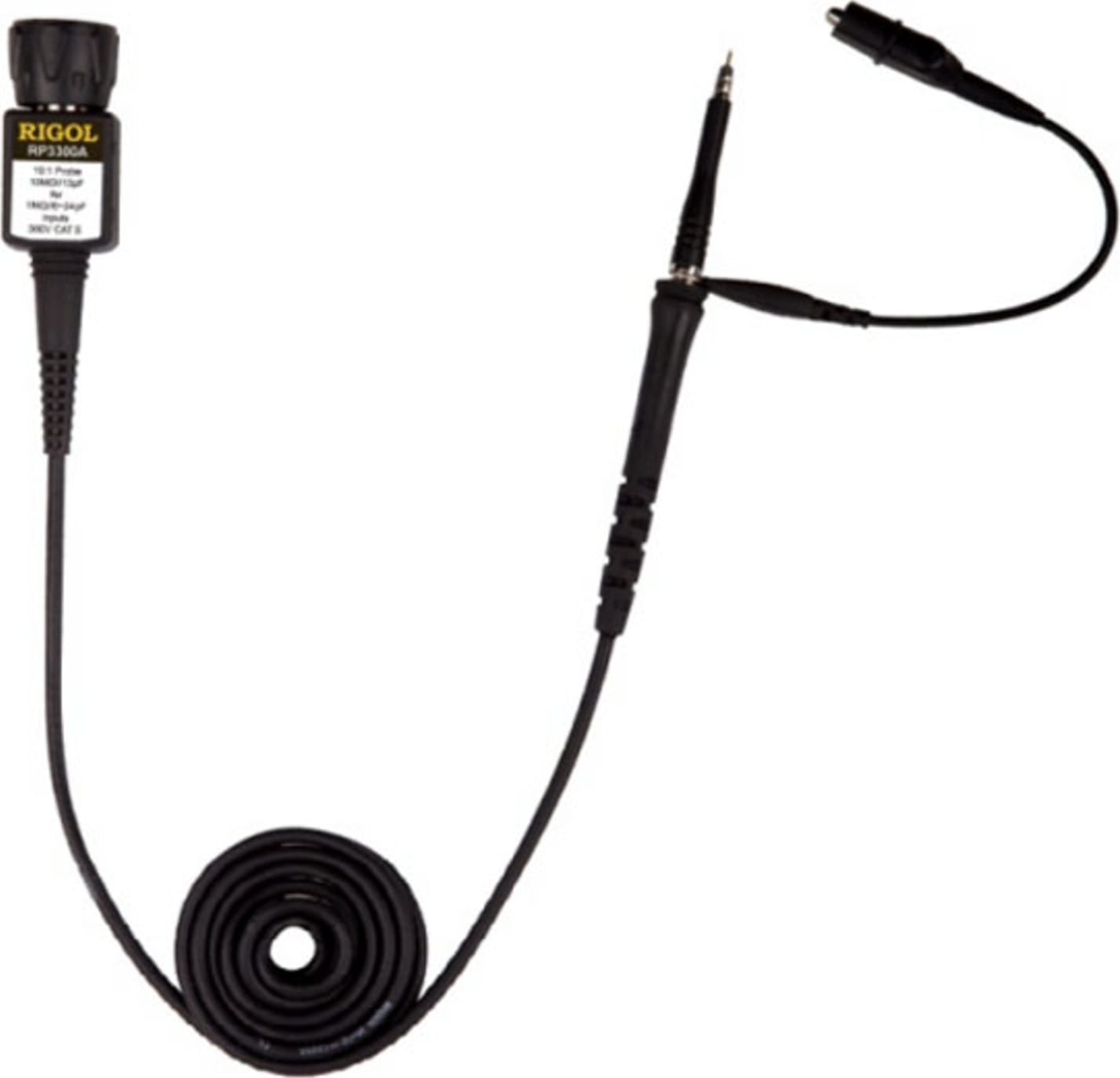

Rigol RP3300A Passive High Resistance Probe

Compare

300 MHZ PASSIVE PROBE with 10:1 fixed attenuation

Bandwidth: DC ~ 300MHz
Damping Factor: 10: 1
Input Resistance: 10ΩM ± 2%
Input Capacitance: 13pF ± 3pF
Maximum Input Voltage: CAT II 300 VAC
Compensation Range: 6PF ~ 24pF

View Product Details

List Price: $47.00

In Stock:

View Payment Options

Recommended for you

Rigol RP3300A Oscilloscope 300 MHz Passive High Resistance Probe

For digital oscilloscopes, the signal under test needs to be connected to the measurement channel via various oscilloscope probes or 50 ohm cables.The Probing is very important to making quality measurements. If the probe performance is not adequate or if you did not select the proper probe for your application, you will see distorted or misleading signals on your oscilloscope.

There are two kinds of probes, one is passive probe, another one is active probe. active probe requires power while passive probe does not. For general-purpose measurements(<600MHz), passive high-impedance resistor divider probes are good choices in general. For high-frequency applications (>600 MHz), active probes are the way to go. They cost more than passive probe and their input voltage is limited, but because of their significantly lower capacitive loading, they give you more accurate insight into fast signals.

Specification
Performance Specification
Bandwidth	DC to 300 MHz
Attenuation Ratio	10:1(fixed)
Input Impedance	10 M Ohm
Input Capacitance	13pF +/- 3pF
Max. Input: AC RMS.	12kV CAT II
Maximum Input	CAT II 300VAC
Compensation Range	6pF ~ 24 pF
General Specification
Operation Environment	0~50 Celsius,0~80%RH
Storage Environment	-20~60 Celsius,0~90%RH
Cable Length	Approximate 1.40 meter
Weight	56g
Packaging Details
Package Weight	0.220kg (0.49lb.)
Package Size	16cm x 10cm x 3cm (6.30in x 3.94in x 1.18in)

Rigol Probes - Overview Specification
Model number	Attenuation ratio	Bandwidth	Input R	Max. Input voltage	Rigol scope compatibility	Recommended applications
Passive high resistance probe
RP2200	1:1 or 10:1	1x: DC...7 MHz 10x: DC...150 MHz	1x: 1 MΩhm ±2% 10x: 10 MΩhm ±2%	1x: CAT II 150 VAC 10x: CAT II 300 VAC	All Rigol scopes	Small signal test (1x), general purpose test
RP3300A	10:1	10x: DC...350 MHz	10x: 10 MΩhm ±2%	10x: CAT II 300 VAC	All Rigol scopes	Small signal test (1x), general purpose test
RP3500A	10:1	DC...500 MHz	10 MΩhm ±2%	CAT II 300 VAC	All Rigol scopes	General purpose test
RP5600A	10:1	DC...600 MHz	10 MΩhm ±2%	CAT II 300 VAC	DS4000 series*, DS6000 series	General purpose test
Passive low resistance probe
RP6150A	10:1	DC...1.5 GHz	500 Ωhm ±10 Ωhm	CAT I 7 VAC	DS4000 series*, DS6000 series	High frequency signal ended small signal test
Passive high voltage probe
RP1300H	100:1	DC...300 MHz	100 MΩhm	CAT I 2000 V(DC+AC) CAT II 1500 V(DC+AC)	All Rigol scopes	High voltage test
RP1010H	1000:1	DC...40 MHz	100 MΩhm, 3 pF ±0.5 pF	0...10 kVDC, AC pulse ≤20 kVpp/sine =7 kVRMS	All Rigol scopes	High voltage test
RP1018H	1000:1	DC....150 MHz	200 MΩhm, 1.5 pF	CAT II 18 kV(DC+AC) CAT III 12 kV(ACRMS)	All Rigol scopes	High voltage test
Active differential probe
RP7150	10:1	DC...1500 MHz	Differential 50 kΩhm ±2% Single-ended 25 kΩhm ±2%	~30 Vp; CAT I	DS4000 series*, DS6000 series	Differential/single-ended high frequency signal test
RP7080	10:1	DC...800 MHz	Differential 50 kΩhm ±2% Single-ended 24 kΩhm ±2%	~30 Vp; CAT I	DS4000 series*, DS6000 series	Differential/single-ended high frequency signal test
Active single-ended probe
RP7150S	10:1	DC...1500 MHz	100 kΩhm ±1%	~30 Vp; CAT I	DS4000 series*, DS6000 series	Single-ended high frequency signal test
RP7080S	10:1	DC...800 MHz	100 kΩhm ±1%	~30 Vp; CAT I	DS4000 series*, DS6000 series	Single-ended high frequency signal test
High voltage differential
RP1025D	x20, x50, x200	25 MHz	Differential 4 MΩhm/1.2 pF Single-ended 2 MΩhm/2.3 pF	x20: =140 V_pp, (45 V_rms or DC) x50: =350 V_pp, (110 V_rms or DC) x200: =1400 V_pp, (450 V_rms or DC)	All Rigol scopes	High voltage differential/single-ended signal test
RP1050D	x100, x200, x1000	50 MHz	Differential 100 MΩhm/1.2 pF Single-ended 50 MΩhm/2.3 pF	x100: =700 V_pp, (230 V_rms or DC x200: =1400 V_pp, (460 V_rms or DC) x500: =3500 V_pp, (1140 V_rms or DC) x1000: =7000 V_pp, (2300 V_rms or DC)	All Rigol scopes	High voltage differential/single-ended signal test
RP1100D	x100, x200, x1000	100 MHz	Differential 100 MΩhm/1.2 pF Single-ended 50 MΩhm/2.3 pF	x100: =700 V_pp, (230 V_rms or DC) x200: =1400 V_pp, (460 V_rms or DC) x500: =3500 V_pp, (1140 V_rms or DC) x1000: =7000 V_pp, (2300 V_rms or DC)	All Rigol scopes	High voltage differential/single-ended signal test
* incl. MSO4000

Tech Specs

Test Equipment General Attributes
Unique Features	Bandwidth DC ~ 300 MHz Maximum Input voltage 10x: CAT II 300 VAC Cable Length 1.4 m
Safety Approval	CE
Product Weight	0.12 LBS
Shipping Weight	0.49 LBS
Data Logging	No
HTS/Schedule B Number	9030908961
ECCN Number	3A992.a
Country of Origin	China

4

Out of 5

Average Customer Review

Share your thoughts with other customers

Write a Review

Displaying all 3 reviews

Most Helpful First | Newest First

Recommend to a Friend

Probe vs. frequency

4.0

Think about a conventional scope probe.

Alligator ground lead is about 250 nH. That is about j470 ohms at 300 MHz. The short spring ground is about 70 nH which is about j130 ohms at 300 MHz.

The probe capacitance load from ground shield to tip is 13 pF which is -j40 ohm capacitance load at 300 MHz.

Even with spring ground the accuracy is bad at 300 MHz. You will also need a very low circuit impedance to stand the heavy reactive load of the probe.

This goes for any passive probe like this one. Don't think it really works well above about 100 MHz.

RCinFLA on Sep 13, 2016

Recommend to a Friend

Rigol Scope Probe Review

4.0

Overall, this is a good scope probe. I purchased this to replace a hoaky probe that came with my new Rigol scope to get me by until Rigol sent me a new one. The adjustment pot on my original probe wasn't linear. Rigol came thru quickly and all is good now.

Anonymous on Jun 06, 2015

Recommend to a Friend

O-scope Probe

4.0

Nice probe. Tested on a 500Mhz scope and this probe did fine up to 350Mhz. Nice.

Verified Purchase Anonymous on Sep 10, 2014
