Rigol RP1010H Oscilloscope 40 MHz Passive High Voltage Probe

Name: Rigol RP1010H Oscilloscope 40 MHz Passive High Voltage Probe
Brand: Rigol
SKU: RigolRP1010H
Price: 524.00 USD
Availability: InStock

0 reviews | Catalog: RP1010H | Model: Rigol RP1010H

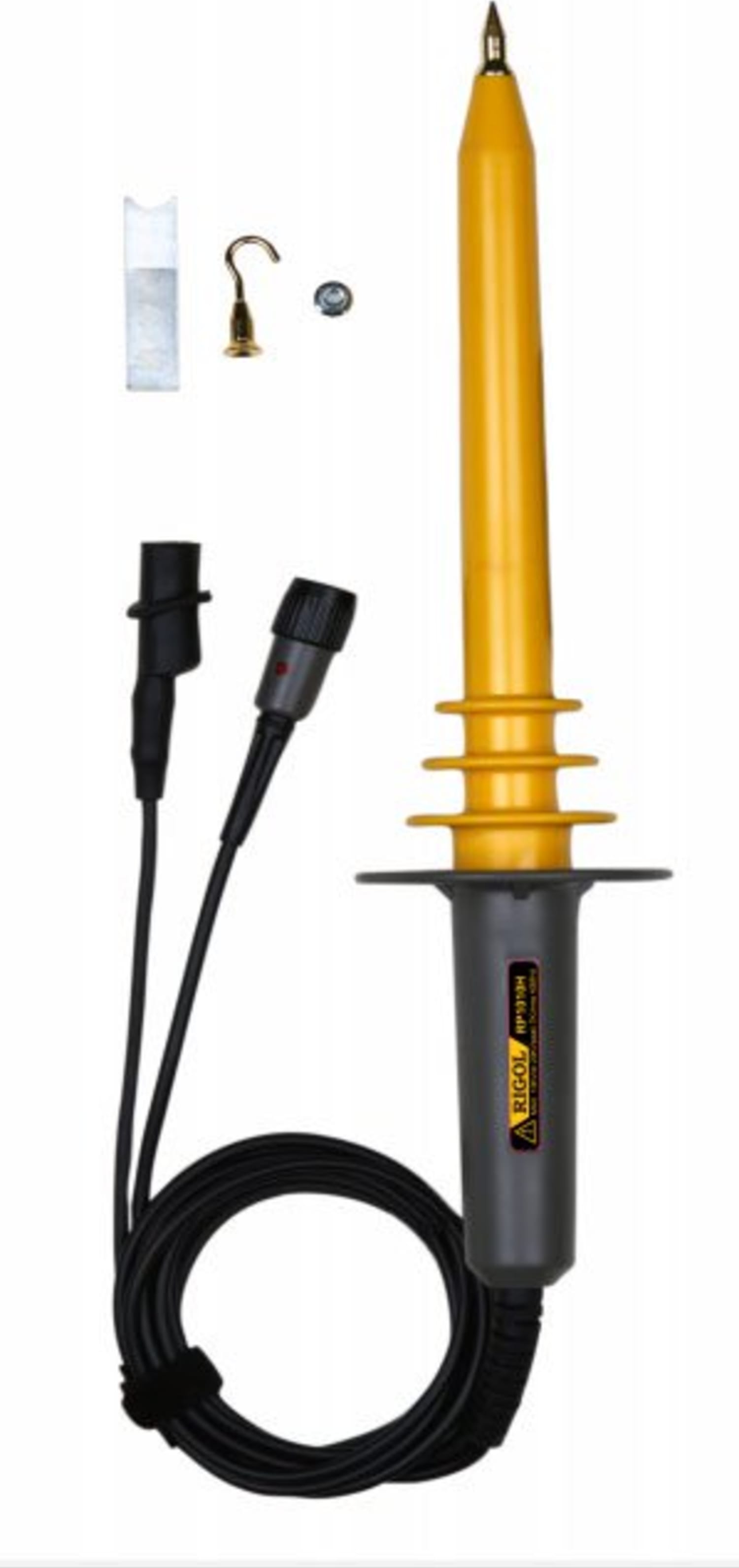

Rigol RP1010H Passive High Voltage Probe

Compare

High Voltage Probe with 40MHz bandwidth, 10kV max DC voltage, 1000:1

Bandwidth: DC ~ 40MHz
Damping factor: 1000: 1
Input resistance: 100 MW ± 5%
Input capacity: 3pF ± 0,5pF
Maximum working voltage: DC: 0 ~ 10 kV; AC: = 20kVpp pulse; AC: sine wave = 7kVrms
Compensation range: 5pF ~ 50pF

View Product Details

Your Price: $524.00

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded.
Request a Demo

View Payment Options

Request Quote

Items in This Series



Product	Rigol RP1010H High Voltage Probe with 40MHz bandwidth, 10kV max DC voltage, 1000:1	Rigol RP1300H 100:1 300 MHz TO 2KV PASSIVE PROBE	Rigol RP1018H High Voltage Probe with 150MHz bandwidth, 18kV max DC voltage, 1000:1
Price
In Stock
Bandwidth Range Max	40 MHz (0.04 GHz)	300 MHz (0.3 GHz)	150 MHz (0.15 GHz)
Compare	Add to compare	Add to compare	Add to compare

Recommended for you

Rigol RP1010H Oscilloscope 40 MHz Passive High Voltage Probe

Bandwidth: DC ~ 40MHz
Damping factor: 1000: 1
Input resistance: 100 MW ± 5%
Input capacity: 3pF ± 0,5pF
Maximum working voltage: DC: 0 ~ 10 kV; AC: = 20kVpp pulse; AC: sine wave = 7kVrms

Passive probe - 10kV high voltage, compatible with all of RIGOL oscilloscopes.

For digital oscilloscopes, the signal under test needs to be connected to the measurement channel via various oscilloscope probes or 50 ohm cables.The Probing is very important to making quality measurements. If the probe performance is not adequate or if you did not select the proper probe for your application, you will see distorted or misleading signals on your oscilloscope.

There are two kinds of probes, one is passive probe, another one is active probe. active probe requires power while passive probe does not. For general-purpose measurements(<600MHz), passive high-impedance resistor divider probes are good choices in general. For high-frequency applications (>600 MHz), active probes are the way to go. They cost more than passive probe and their input voltage is limited, but because of their significantly lower capacitive loading, they give you more accurate insight into fast signals.

Specification
Max. Working Voltage	DC: 0 ~ 10 KV DC AC: pulse ≤ 20 KV peak to peak AC: sine wave = 7 KVrms
Signal/Noise	DC ≥ 60 dB (1 KHz), ≥ 50 dB (1 MHz)
Bandwidth	DC ~40 MHz (-3 dB)
Division Ratio	1:1000
Rise Time	≤ 8.8 ns
Input Impedance	100 MΩ ± 5%
Input Capacitance	3.0 pF ± 0.5 pF
Compensation Range	5 pF ~ 50 pF
Cable Length	2.0 meter (± 0.2 M)
Temperature Coefficient	≤ 200 PPM /°C
Safety App.	CE
Operating Temperature	0 ~ 50°C
Storage Temperature	-20 ~ +70°C
Weight / Dimension	250 g /F75 x 340 mm L

Rigol Probes - Overview Specification
Model number	Attenuation ratio	Bandwidth	Input R	Max. Input voltage	Rigol scope compatibility	Recommended applications
Passive high resistance probe
RP2200	1:1 or 10:1	1x: DC...7 MHz 10x: DC...150 MHz	1x: 1 MΩhm ±2% 10x: 10 MΩhm ±2%	1x: CAT II 150 VAC 10x: CAT II 300 VAC	All Rigol scopes	Small signal test (1x), general purpose test
RP3300A	10:1	10x: DC...350 MHz	10x: 10 MΩhm ±2%	10x: CAT II 300 VAC	All Rigol scopes	Small signal test (1x), general purpose test
RP3500A	10:1	DC...500 MHz	10 MΩhm ±2%	CAT II 300 VAC	All Rigol scopes	General purpose test
RP5600A	10:1	DC...600 MHz	10 MΩhm ±2%	CAT II 300 VAC	DS4000 series*, DS6000 series	General purpose test
Passive low resistance probe
RP6150A	10:1	DC...1.5 GHz	500 Ωhm ±10 Ωhm	CAT I 7 VAC	DS4000 series*, DS6000 series	High frequency signal ended small signal test
Passive high voltage probe
RP1300H	100:1	DC...300 MHz	100 MΩhm	CAT I 2000 V(DC+AC) CAT II 1500 V(DC+AC)	All Rigol scopes	High voltage test
RP1010H	1000:1	DC...40 MHz	100 MΩhm, 3 pF ±0.5 pF	0...10 kVDC, AC pulse ≤20 kVpp/sine =7 kVRMS	All Rigol scopes	High voltage test
RP1018H	1000:1	DC....150 MHz	200 MΩhm, 1.5 pF	CAT II 18 kV(DC+AC) CAT III 12 kV(ACRMS)	All Rigol scopes	High voltage test
Active differential probe
RP7150	10:1	DC...1500 MHz	Differential 50 kΩhm ±2% Single-ended 25 kΩhm ±2%	~30 Vp; CAT I	DS4000 series*, DS6000 series	Differential/single-ended high frequency signal test
RP7080	10:1	DC...800 MHz	Differential 50 kΩhm ±2% Single-ended 24 kΩhm ±2%	~30 Vp; CAT I	DS4000 series*, DS6000 series	Differential/single-ended high frequency signal test
Active single-ended probe
RP7150S	10:1	DC...1500 MHz	100 kΩhm ±1%	~30 Vp; CAT I	DS4000 series*, DS6000 series	Single-ended high frequency signal test
RP7080S	10:1	DC...800 MHz	100 kΩhm ±1%	~30 Vp; CAT I	DS4000 series*, DS6000 series	Single-ended high frequency signal test
High voltage differential
RP1025D	x20, x50, x200	25 MHz	Differential 4 MΩhm/1.2 pF Single-ended 2 MΩhm/2.3 pF	x20: =140 V_pp, (45 V_rms or DC) x50: =350 V_pp, (110 V_rms or DC) x200: =1400 V_pp, (450 V_rms or DC)	All Rigol scopes	High voltage differential/single-ended signal test
RP1050D	x100, x200, x1000	50 MHz	Differential 100 MΩhm/1.2 pF Single-ended 50 MΩhm/2.3 pF	x100: =700 V_pp, (230 V_rms or DC x200: =1400 V_pp, (460 V_rms or DC) x500: =3500 V_pp, (1140 V_rms or DC) x1000: =7000 V_pp, (2300 V_rms or DC)	All Rigol scopes	High voltage differential/single-ended signal test
RP1100D	x100, x200, x1000	100 MHz	Differential 100 MΩhm/1.2 pF Single-ended 50 MΩhm/2.3 pF	x100: =700 V_pp, (230 V_rms or DC) x200: =1400 V_pp, (460 V_rms or DC) x500: =3500 V_pp, (1140 V_rms or DC) x1000: =7000 V_pp, (2300 V_rms or DC)	All Rigol scopes	High voltage differential/single-ended signal test
* incl. MSO4000

Tech Specs

Accessories/Probes/Oscilloscope Probes/Oscilloscope High Voltage Probes Template
Bandwidth Range Max	40 MHz (0.04 GHz)
Maximum Voltage	10 kV (10000 V)
Impedance	100 Ohms
Test Equipment General Attributes
Product Height	4.00 IN
Product Length	19.00 IN
Product Width	5.00 IN
HTS/Schedule B Number	9030908961
ECCN Number	3A992.a
Country of Origin	China
