Model |

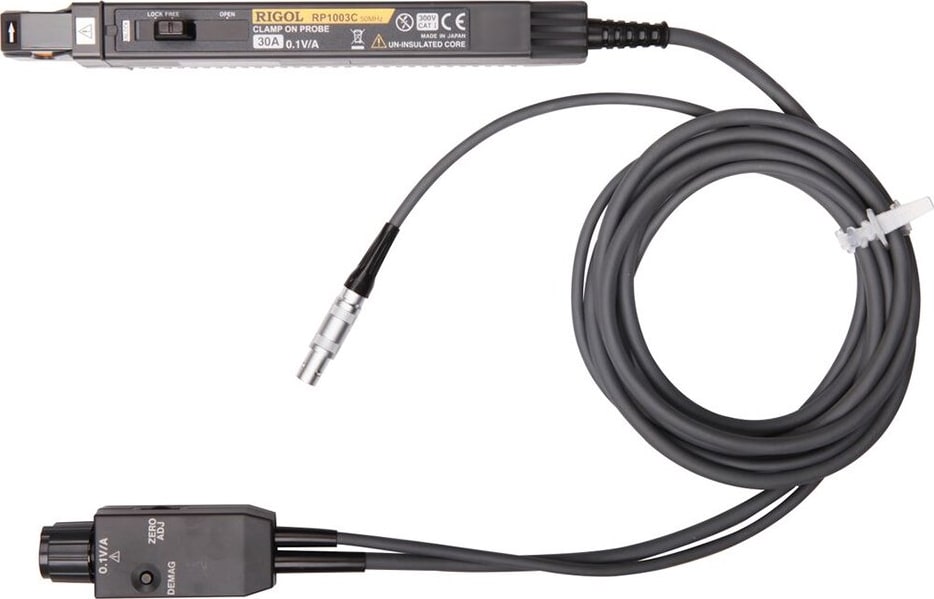

RP1003C |
RP1004C |
RP1005C |
Bandwidth |
DC to 50MHz (-3dB), refer to Appendix 1 Amplitude Characteristics (RP1003C) |
DC to 100MHz (-3dB), refer to Appendix 1 Amplitude Characteristics (RP1004C) |
DC to 100MHz (-3dB), refer to Appendix 1 Amplitude Characteristics (RP1005C) |
Rise Time |
≤7ns |
≤5ns |
≤35ns |
Linear Response Range of Input Current |
30Arms, refer to Appendix 2 Relation between Max Input Current and Frequency (RP1003C) |
30Arms, refer to Appendix 2 Relation between Max Input Current and Frequency (RP1004C) |
150Arms, refer to Appendix 2 Relation between Max Input Current and Frequency (RP1005C) |
Maximum Peak Current |
50A peak, non-continuous |
50A peak, non-continuous |
300A peak, non-continuous
500A peak, pulse width≤30μs |
Gain |
0.1V/A |
0.1V/A |
0.1V/A |
Gain Accuracy |
±1.0%rdg±1mV, ≤30A
±2.0%rdg, 30A to 50A peak
non-continuous (DC and 45Hz to 66Hz, within the linear response range of the input current) |
±1.0%rdg±1mV, ≤30A
±2.0%rdg, 30A to 50A peak
non-continuous (DC and 45Hz to 66Hz, within the linear response range of the input current) |
±1.0%rdg±1mV, ≤150A
±2.0%rdg, 150A to 300A peak (DC and 45Hz to 66Hz) |
Noise |
≤2.5mArms (for 20MHz band measuring instrument) |
≤2.5mArms (for 20MHz band measuring instrument) |
≤25mArms (for 20MHz band measuring instrument) |
Input Impedance |
Refer to Appendix 3 Input Impedance (Typical) (RP1003C) |
Refer to Appendix 3 Input Impedance (Typical) (RP1004C) |
Refer to Appendix 3 Input Impedance (Typical) (RP1005C) |
Gain Accuracy Drift |
≤±2% (0°C to 40°C temperature, input of 50Hz, 30A) |
≤±2% (0°C to 40°C temperature, input of 50Hz, 30A) |
≤±2% (0℃ to 40℃ temperature, input of 55Hz, 150A) |
Rated Power |
5.6W |
5.3W |
5.5W |
Supply Voltage |
+12V±0.5V |
+12V±0.5V |
+12V±1V |
Maximum Rated Voltage |
300V, CAT I (insulated conductor) |
300V, CAT I (insulated conductor) |
600V: CATII;
300V: CATIII (insulated conductor) |
Gain Accuracy Period |
1 year (opening/closing up to 10,000 times) |
1 year (opening/closing up to 10,000 times) |
1 year (opening/closing up to 10,000 times) |
Effect of External Magnetic Fields |
≤20mA (DC and 60Hz, magnetic field of 400A/m) |
≤5mA (DC and 60Hz, magnetic field of 400A/m) |
≤150mA (DC and 60Hz, magnetic field of 400A/m) |
