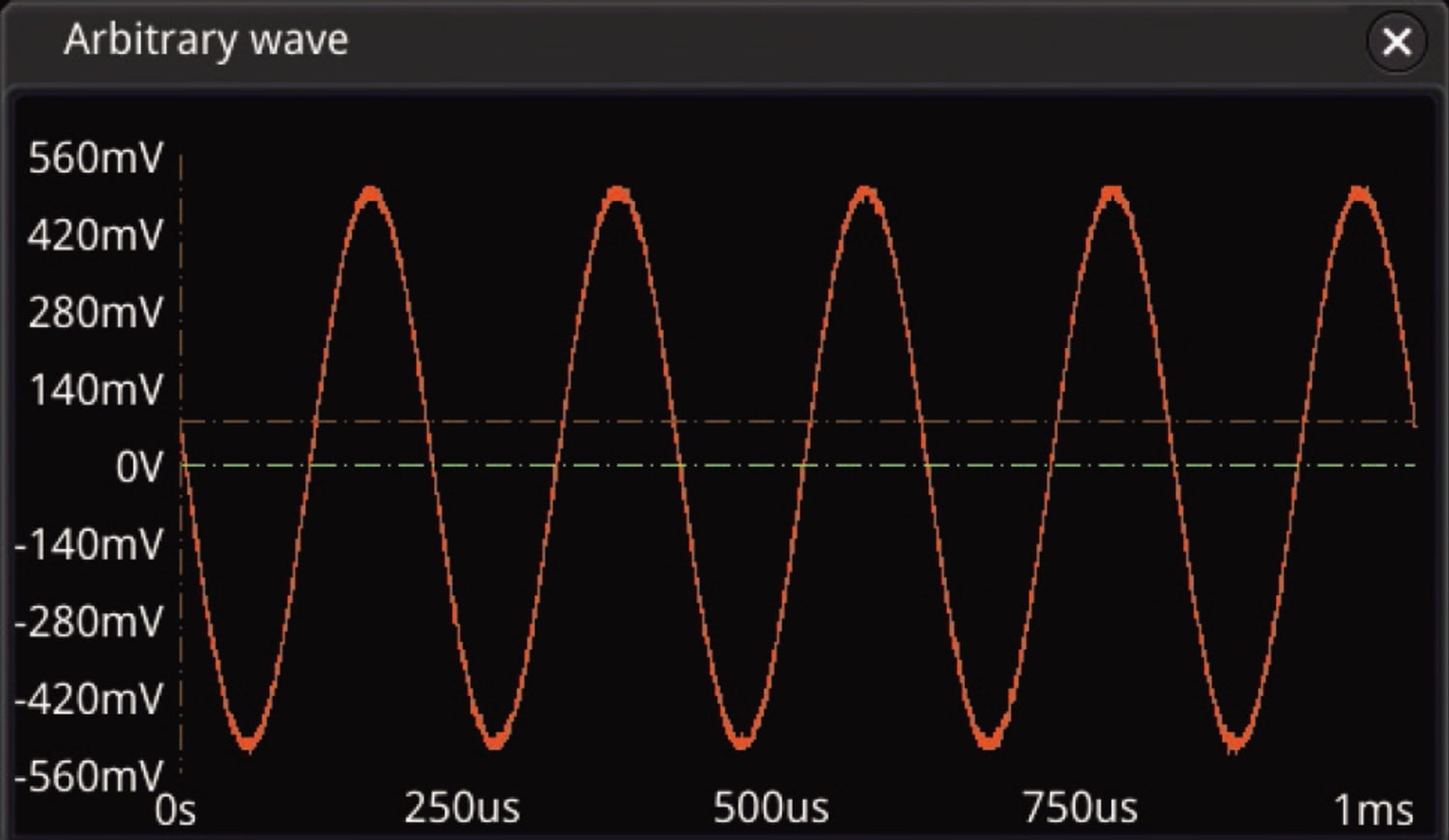

| Arbitrary Waveform Generator (technical specifications are typical values) (option) |
| Number of Channels |
2 |
| Output Mode |
normal (2-channel output) |
| Sample Rate |
200 MSa/s |
| Vertical Resolution |
14 bits |
| Max. Frequency |
25 MHz |
| Standard Waveform |
Sine, Square, Ramp, Pulse, DC, Noise |
| Built-in Waveform |
Sinc, Exp.Rise, Exp.Fall, ECG, Gauss, Lorentz, and Haversine |
| Sine |
Frequency Range |
100 mHz to 25 MHz |
| Flatness |
±0.5 dB (relative to 1 kHz) |
| Harmonic Distortion |
-40 dBc |
| Spurious (non-harmonics) |
-40 dBc |
| Total Harmonic Distortion |
1% |
| S/N Ratio |
40 dB |
| Square/Pulse |
Frequency Range |
Square: 100 mHz to 15 MHz |
| Pulse: 100 mHz to 1 MHz |
| Rise/Fall Time |
<15 ns |
| Overshoot |
<5% |
| Duty |
Square: always be 50% |
| Pulse: 10% to 90%, adjustable |
| Duty Cycle Resolution |
1% or 10 ns (whichever is greater) |
| Min. Pulse Width |
20 ns |
| Pulse Width Resolution |
5 ns |
| Jitter |
5 ns |
| Ramp |
Frequency Range |
100 mHz to 100 kHz |
| Linearity |
1% |
| Symmetry |
1% to 100% |
| Noise |
Bandwidth |
>25 MHz |
| Built-in Waveform |
Frequency Range |
100 mHz to 1 MHz |
| Arbitrary Waveform |
Frequency Range |
100 mHz to 10 MHz |
| Waveform Length |
2 ~ 16 kpts |
| support loading channel waveforms and stored waveforms |
| Frequency |
Accuracy |
100 ppm (<10 kHz), 50 ppm (>10 kHz) |
| Resolution |
100 mHz or 4 bits (whichever is greater) |
| Amplitude |
Output Range |
20 mVpp ~ 5 Vpp (HighZ), 10 mVpp ~ 2.5 Vpp (50 Ω) |
| Resolution |
100 uV or 3 bits (whichever is greater) |
| Accuracy |
±(2% of setting+1 mV) (Frequency=1 kHz) |
| DC Offset |
Range |
±2.5 V (HighZ), ±1.25 V (50 Ω) |
| Resolution |
100 uV or 3 bits (whichever is greater) |
| Accuracy |
±(2% of offset setting+5 mV+0.5% of amplitude) |
| Modulation |
AM, FM, FSK |
| AM |
Modulating Waveforms: Sine, Square, Triangle, and Noise. |
| Modulation Frequency: 1 Hz to 50 kHz |
| Modulation Depth: 0% to 120% |
| FM |
Modulating Waveforms: Sine, Square, Triangle, and Noise. |
| Modulation Frequency: 1 Hz to 50 kHz |
| Modulation Offset: 1 Hz to carrier frequency |
| FSK |
Modulating Waveforms: 50% duty cycle square |
| Modulation Frequency: 1 Hz to 50 kHz |
| Hopping Frequency: 100 mHz to max. carrier frequency |
| Sweep |
Linear, Log, and Step |
| Sweep Time |
1 ms to 500 s |
| Start Frequency and End Frequency |
any frequencies within the waveform range |
| Burst |
N Cycle, Infinite |
| Cycle Count |
1 to 1000000 |
| Burst Period |
1 μs to 500 s |
| Burst Delay |
0 s to 100 s |
| Trigger Source |
Internal, Manual |
