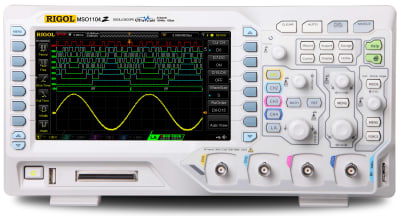

Rigol MSO1104Z-B 100 MHz Mixed Signal Oscilloscope with 4 Analog

Name: Rigol MSO1104Z-B 100 MHz Mixed Signal Oscilloscope with 4 Analog
Brand: Rigol
SKU: RIGOLMSO1104Z-OB
Price: 799.00 USD
Availability: InStock
Rating: 5.00 (1 reviews)

5 (1 Review) | Model: Rigol MSO1104Z-OB

Compare

100 MHz Mixed Signal Oscilloscope with 4 analog channels as well as 16 digital logic channels plus 12 Mpt memory and 1 GSa/sec sampling - This open box item may be missing original packaging, missing some small accessories or a lightly used demo unit.

This open box item may be missing original packaging, missing some small accessories or a lightly used demo unit.
100MHz Bandwidth
4 Analog channels
16 Digital channels MSO
Max. Sample Rate up to 1G Sa/s
Memory Depth up to12Mpts /24Mpts(Opt.)
Innovative "UltraVision" technology
Up to 30,000wfms/s Waveform Capture Rate
Up to 60,000frames Real-time Waveform Record(Opt.)
Low noise floor, Dynamic Range: 1mV/div to 10V/div
Optional Serial Buses Triggering and Decoding(RS232,I2C,SPI)
Multi- Levels intensity grading waveform display
Complete Connectivity: LAN(LXI),USB Host & Device,AUX,
USB-GPIB(Opt.)
Compact size, light weight, easy to use
7 Inch WVGA (800x480), multiple intensity levels waveform display

View Product Details

List Price: $799.00

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

for the Rigol MSO1104Z-OB

Rigol RP1100D High Voltage Differential Probe, DC-100 MHz, 7000 Vpp

Catalog: RP1100D

(0)

In Stock!

Add to Cart

Cal Test CT4103 Universal Adapter Kit

Catalog: CT4103

(9)

In Stock!

Add to Cart

Rigol CB-USBA-USBB-FF-150 USB Cable

Catalog: CB-USBA-USBB-FF-150

(0)

In Stock!

Add to Cart

Rigol ADP0150BNC 50 Ohm impedance adapter for oscilloscopes or generators

Catalog: ADP0150BNC

(30)

In Stock!

Add to Cart

Rigol RPL1116 RPL1116 Standard logic probe for MSO1000Z. Upgrades a DS1000Z Plus or...

Catalog: RPL1116

(6)

In Stock!

Add to Cart

Cal Test CT4042 Oscilloscope Accessory Kit. Get the most out of your scope with this...

Catalog: CT4042

(24)

In Stock!

Add to Cart

Aim-TTi Iprober 520 Positional Current/Field Probe DC-5MHz 5mA-20A

Catalog: 58250-0010

(5)

In Stock!

Add to Cart

Rigol RP1003C Current Probe, DC-50 MHz,50A peak. Requires RP1000P power supply.

Catalog: RP1003C

(0)

In Stock!

Add to Cart

Auburn P-20A 3GHz RF Probe BNC. (adaptor for SMA not included )

Catalog: P-20A

(3)

In Stock!

Add to Cart

Rigol PVP2150 150 MHz Passive Probe with 1x:10x selector. With bandwidth of 35 MHz in...

Catalog: PVP2150

(2)

In Stock!

Add to Cart

Rigol PVP2350 PVP2350 -- 350 MHz Passive Probe with 1x:10x selector. With bandwidth of...

Catalog: PVP2350

(3)

In Stock!

Add to Cart

Rigol RP6150A 1.5GHz Passive Probe

Catalog: RP6150A

(0)

In Stock!

Add to Cart

Rigol MSO1104Z-B 100 MHz Mixed Signal Oscilloscope with 4 Analog

MSO/DS1000Z Series is the new mainstream digital scope to meet the customer's applications with its innovative technology. MSO1000Z Series has 16channels, target for the embedded design and test market with its industry leading specifications, powerful trigger functions and broad analysis capabilities.

Innovative UltraVision technology(Analog Channel)

Deeper Memory Depth (Std.12Mpts,Opt.24Mpts)
Higher Waveform Capture Rate (Up to 30,000 wfms/s)
Real Time Waveform Record&Replay (Up to 60,000 frames, opt.)
Multi-level Intensity Grading Display

Besides the powerful functions of DS1000Z, you could get more from MSO1000Z with:

16 Digital channels
Sample rate of Digital channel up to 1 GSa/s
Memory depth of Digital channel up to 24Mpts
Waveform capture rate of Digital channel up to 30,000wfms/s
Real Time Waveform Record, Replay and analysis functions, up to 60,000 frames
Triggering and Decoding across Analog and Digital channels
Easy to be grouped for digital channels
Support a variety of logic levels
Time correlation display for both analog and digital signals

Innovative UltraVision technology(Digital Channel)

Deeper Memory Depth( Up to 24Mpts )
Higher Waveform capture rate(Up to 30,000wfms/s)
Real Time waveform record & replay(Up to 60,000 frames)
Multi-level intensity grading display

Model Number	DS1074Z	DS1074Z-S	DS1104Z	DS1104Z-S
	MSO1074Z	MSO1074Z-S	MSO1104Z	MSO1104Z-S
Analog BW	70 MHz		100MHz
Analog Channels	4
Digital Channel(MSO)	16
Max. Sample rate	Analog Channel:1GSa/s (1 CH),500MSa/s(2 CH),250MSa/s(3/4 CH); Digital Channel: 1GSa/s (8 CH),500MSa/s(16 CH)
Max. Memory Depth	Analog Channel: 12Mpts(1 CH), 6Mpts(2 CH), 3Mpts(3/4 CH)Std.; 24Mpts(1 CH), 12Mpts(2 CH), 6Mpts(3/4 CH) Opt. Digital Channel: 12Mpts(8 CH) / 6Mpts(16 CH) Std.; 24Mpts(8 CH) / 12Mpts(16 CH) Opt.
Max. Waveform Capture rate	Up to 30,000 wfms/s
Real Time waveform Record, Replay and Analysis function	Up to 60, 000 Frames(Opt.)
Std. Probes	RP2200 150MHz BW Passive Probe:4 sets;1 set RPL1116 LA Probe(MSO only)
Built-in 2Ch 25MHz Source	No	Yes	No	Yes

Sample
Sample Mode	Real-time sample
Real-time Sample Rate	Analog channel: 1 GSa/s (single-channel), 500 MSa/s (dual-channel), 250 MSa/s (four-channel) Digital channel: 1 GSa/s (8-channel),500 MSa/s (16-channel)
Peak Detect	Analog channel: 4 ns Digital channel: 4 ns
Averaging	After both the channels finish N samples at the same time, N can be 2, 4, 8, 16, 32, 64, 128, 256, 512, 1024.
High Resolution	The highest resolution is 12 bit
Interpolation	Sin(x)/x (selectable)
Minimum Detectable Pulse Width	Digital channel: 10 ns
Memory Depth	Analog channel: Single-channel: Auto, 12k pts, 120k pts, 1.2M pts, 12M pts and 24M pts (opt.) are available Dual-channel: Auto, 6k pts, 60k pts, 600k pts, 6M pts and 12M pts (opt.) are available Four-channel: Auto, 3k pts, 30k pts, 300k pts, 3M pts and 6M pts (opt.) are available Digital channel: 12Mpts(8 CH) / 6Mpts(16 CH) Std.; 24Mpts(8 CH) / 12Mpts(16 CH) Opt.
Input
Number of Channels	MSO1XX4Z/1XX4Z-S: 1,2 analog-channel + 16-digital-channel DS1XX4Z/1XX4Z-S: 4-analog-channel
Input Coupling	DC, AC or GND
Input Impedance	Analog channel: (1 MO±1%) \|\| (15 pF±3 pF) Digital channel: (100 kO±1%) \|\| 8 pF±3 pF)
Probe Attenuation Coefficient Analog channel	0.01X-1000X, 1-2-5 step
Max Input Voltage (1MO)	Analog channel: CAT I 300 Vrms, CAT II 100 Vrms, transient overvoltage 1000 Vpk With RP2200 10:1 probe: CAT II 300 Vrms Digital channel: CAT I 40 Vrms, transient overvoltage 800 Vpk
Horizontal
Time Base Scale	5 ns/div to 50 s/div
Time Base Accura cy[ 1]	≤ ± 25 ppm
Time Base Drift	≤ ± 5 ppm/year
Max Delay Range	negative delay: ≥1 screen width positive delay: 1 s to 100,000 s
Time Base Mode	Y-T, X-Y, Roll, Delayed
Number of X-Ys	1 path
Waveform Capture Rate ^[2]	30,000 wfms/s (dots display)
Vertical
Bandwidth (-3dB)	MSO1104Z/1104Z-S/DS1104Z/1104Z-S: DC to 100 MHz MSO1074Z/1074Z-S/DS1074Z/1074Z-S: DC to 70 MHz
Single Bandwidth	MSO1104Z/1104Z-S/DS1104Z/1104Z-S: DC to 100 MHz MSO1074Z/1074Z-S/DS1074Z/1074Z-S: DC to 70 MHz
Vertical Resolution	Analog channel: 8 bits Digital channel: 1 bit
Vertical Scale	1 mV/div to 10 V/div
Offset Range	1 mV/div to 499 mV/div: ± 2 V 500 mV/div to 10 V/div: ± 100 V
Bandwidth Limit ^[1]	20 MHz
Low Frequency Response (AC coupling, -3dB)	≤5 Hz (on BNC)
Rise Time ^[1]	MSO1074Z/1074Z-S/DS1074Z/1074Z-S: 3.5 ns MSO1074Z/1074Z-S/DS1074Z/1074Z-S: 5 ns
DC Gain Accuracy [3]	<10 mV: ±4% full scale ≥10 mV: ±3% full scale
DC Offset Accuracy	±0.1 div ± 2 mV ± 1% offset
Channel to Channel Isolation	DC to maximum bandwidth: >40 dB
Vertical (Digital Channel)
Threshold	1 group with 8 channels adjustable threshold
LevelType	TTL (1.4 V) 5.0 V CMOS (+2.5 V), 3.3 V CMOS (+1.65 V) 2.5 V CMOS (+1.25 V), 1.8 V CMOS (+0.9 V) ECL (-1.3 V) PECL (+3.7 V) LVDS (+1.2 V) 0 V User
Threshold range	±15.0 V, in 10 mV step
Threshold accuracy	±(100 mV + 3% of threshold setting)
Dynamic range	±10 V + threshold
Min Voltage Swing	500 mVpp
Vertical resolution	1 bit
Trigger
Trigger Level Range	±5 div from the center of the screen
Trigger Mode	Auto, Normal, Single
Holdoff Range	16 ns to 10 s
High Frequency Rejection ^[1]	75 kHz
Low Frequency Rejection ^[1]	75 kHz
Trigger Sensitivity ^[1]	1.0div (below 5mV or noise rejection is enabled) 0.3div (above 5mV and noise rejection is disabled)
Edge Trigger
Edge Type	Rising, Falling, Rising/Falling
Pulse Trigger
Pulse Condition	Positive Pulse Width (greater than, lower than, within specified interval) Negative Pulse Width (greater than, lower than, within specified interval)
Pulse Width Range	8 ns to 10 s
Pulse Width Range	8 ns to 10 s
Runt Trigger
Pulse Condition	None, > (greater than), < (lower than), <> (within the specified interval)
Polarity	Positive, Negative
Pulse Width Range	8 ns to 4 s
Windows Trigger
Windows Type	Rising, Falling, Rising/Falling
Trigger Position	Enter, Exit, Time
Windows Time	8 ns to 10 s
Nth Edge Trigger
Edge Type	Rising, Falling
Idle Time	16 ns to 10 s
Number of Edges	1 to 65535
Slope Trigger
Slope Condition	Positive Slope (greater than, lower than, within specified interval) Negative Slope (greater than, lower than, within specified interval)
Time Setting	8 ns to 10 s
Video Trigger
Signal Standard	Support standard NTSC, PAL and SECAM broadcasting standards Support 480P, 576P HDTV standards
Pattern Trigger
Pattern Setting	H, L, X, Rising Edge, Falling Edge
Delay Trigger
Edge Type	Rising, Falling
Delay Type	> (greater than), < (lower than), <> (within the specified interval), >< (outside the specified interval)
Delay Time	8 ns to 10 s
TimeOut Trigger
Edge Type	Rising, Falling, Rising & Falling
TimeOut Value	16 ns to 10 s
Duration Trigger
Pattern Setting	H, L, X
Trigger Condition	> (greater than), < (lower than), <> (within the specified interval)
Duration Time	8 ns to 10 s
Setup/Hold Trigger
Edge Type	Rising, Falling
Data Pattern	H, L,X
Setup Time	8 ns to 1 s
Hold Time	8 ns to 1 s
RS232/UART Trigger
Polarity	Normal, Invert
Trigger Condition	Start, Error, Check Error, Data
Baud	2400 bps, 4800 bps, 9600 bps, 19200 bps, 38400 bps, 57600 bps, 115200 bps, User
Data Bits	5 bits, 6 bits, 7 bits, 8 bits
I2C Trigger
Trigger Condition	Start, Restart, Stop, Missing Ack, Address, Data, A&D
Address Bits	7 bits, 8 bits, 10 bits
Address Range	0x0 to 0x7F, 0x0 to 0xFF, 0x0 to 0x3FF
Byte Length	1 to 5
SPI Trigger
Trigger Condition	TimeOut, CS
Timeout Value	16 ns to 10 s
Data Bits	4 bit to 32 bit
Data Line Setting	H, L, X

Measure
Cursor	Manual mode	Voltage deviation between cursors ( △ V) Time deviation between cursors ( △ T) Reciprocal of △ T (Hz) (1/ △ T)
	Track mode	Voltage and time values of the waveform point
	Auto mode	Allow to display cursors during auto measurement
Auto Measurement	Measurements of Maximum, Minimum, Peak-Peak Value, Top Value, Bottom Value, Amplitude, Average, Mean Square Root, Overshoot, Pre-shoot, Area, Period Area, Frequency, Period, Rise Time, Fall Time, Positive Pulse Width, Negative Pulse Width, Positive Duty Cycle, Negative Duty Cycle, Delay AB , Delay AB , Phase AB , Phase AB
Number of Measurements	Display 5 measurements at the same time
Measurement Range	Screen Region or Cursor Region
Measurement Statistic	Average, Max, Min, Standard Deviation, Number of Measurements
Counter	Hardware 6 bits counter (channels are selectable)
Math
Waveform Operation	A+B, A-B, A×B, A/B, FFT, &&, \|\|, ^, !, intg, diff, sqrt, lg, ln, exp, abs
FFT Window	Rectangle, Hanning, Blackman, Hamming,Flat Top,Triangle
FFT Display	Split, Full Screen
FFT Vertical Scale	dB/dBm, Vrms
Number of Buses for Decoding	2
Decoding Type	Parallel (standard), RS232/UART (option), I2C (option), SPI (option)
Display
Display Type	7.0 inches TFT LCD display
Display Resolution	800 horizontal×RGB×480 vertical pixel
Display Color	160,000 Color (TBD)
Persistence Time	Min, 50 ms, 100 ms, 200 ms, 500 ms, 1 s, 2 s, 5 s, 10 s, 20 s, Infinite
Display Type	Dots, Vectors
I/O
Standard Ports	USB HOST, USB DEVICE, LAN, Aux (TrigOut /PassFail)
Signal Source (MSO/DS1000Z-S)
Number of Channels	2
Sample Rate	200 MSa/s
Vertical Resolution	14 bits
Highest Frequency	25 MHz
Standard Waveform	Sine, Square, Pulse, Triangle, Noise, DC
Arbitrary Waveform	Since, Exp.Rise, EXP.Fall, ECG, Gauss, Lorentz, Haversine
Sine	Frequency Range	0.1 Hz to 25 MHz
	Flatness	±0.5 dB (relative to 1 kHz)
	Harmonic Distortion	-40 dBc
	Stray (Non-Harmonic)	-40 dBc
	Total Harmonic Distortion	1%
	Signal-to-Noise ratio	40 dB
Square/Pulse	Frequency Range	0.1 Hz to 15 MHz
	Rise/Fall time	<15 ns
	Overshoot	<5%
	Duty Cycle	10% to 90%
	Duty Cycle Resolution	1% to 10 ns (select the greater one)
	Minimum Pulse Width	20 ns
	Pulse Width Resolution	10 ns or 5 bits (select the greater one)
	Jitter	500 ps
Triangle	Frequency Range	0.1 Hz to 100 kHz
	Linearity	1%
	Symmetry	0 to 100%
Noise^[1]	Bandwidth	25 MHz
Internal Generated waveforms	Frequency Range	0.1 Hz to 1 MHz
Arbitrary Waveforms	Frequency Range	0.1 Hz to 10 MHz
Arbitrary Waveforms	Waveform Length	2 to 16k pts
Frequency	Accuracy	100 ppm (lower than 10 kHz) 50 ppm (greater than 10 kHz)
Frequency	Resolution	0.1 Hz or 4 bit, select the greater one
Amplitude	Output Range	20 mVpp to 5 Vpp, High-resistance 10 mVpp to 2.5 Vpp, 50 Ω
	Resolution	100 µV or 3 bit, select the greater one
	Accuracy	2% (1 kHz)
DC Offset	Range	±2.5 V, High-resistance ±1.25 V, 50 Ω
	Resolution	100 µV or 3 bit, select the greater one
	Accuracy	2% (1 kHz)
Modulation	AM, FM

GENERAL SPECIFICATIONS
Probe Compensation Output
Output Voltage [1]	About 3 V, peak-peak
Frequency [1]	1 kHz
Power
Power Voltage	100-240 V, 45-440 Hz
Power	Maximum 50 W
Fuse	2 A, T degree, 250 V
Environment
Temperature Range	In operation: 0℃ to +50℃ Out of operation: -40℃ to +70℃
Cooling Method	Fan
Humidity Range	0℃ to +30℃ : ≤95℃ relative humidity +35℃ to +40℃ : ≤75℃ relative humidity +40℃ to +50℃ : ≤45℃ relative humidity
Altitude	In operation: under 3,000 meters Out of operation: under 15,000 meters
Mechanical
Dimensions [4	Width×Height×Depth =313.1 mm× 160.8 mm×122.4 mm
Weight [4]	Without package	3.2 kg ± 0.2 kg
	With package	3.8 kg ± 0.5 kg
Adjustment Interval
The recommended calibration interval is one year.
Regulation Standards
Electromagnetic Compatibility	2004/108/EC Execution standard EN 61326-1:2006 EN 61326-2-1:2006
Safety	UL 61010-1:2004; CAN/CSA-C22.2 NO. 61010-1-2004; EN 61010-1:2001; IEC 61010-1:2001

Note
[1]: Typical.
[2]: Maximum value with 50 ns, single-channel, dots display and auto memory depth.
[3]: Tilt tabs and handle folded, knob height included.
[4]: Standard configuration.

Tech Specs

Oscilloscopes/Mixed Signal Oscilloscopes (MSO) Template
Channels	4
Bandwidth	100 MHz
Sampling Rate	1000 MSa/S (1 GS/S) Sampling Rate 1GSa/s sample rate
Screen Size	7.0 IN
Rise Time	3.5 ns
Memory	12 MB
# Logic Channels	16 EA
Bits	8
General Attributes
Warranty	3 YEARS
Product Weight	3.4 KILOS (7.50 LBS)
Shipping Weight	4.3 KILOS (9.48 LBS)
Product Height	160.8 MM (6.33 IN)
Product Length	122.4 MM (4.82 IN)
Product Width	313.1 MM (12.33 IN)
Country of Origin	China
Test Equipment General Attributes
Safety Approval	CE, CSA
Interfaces I/O	LAN / Ethernet, LXI, USB Host, USB
Storage	Internal Memory
Data Logging	No
HTS/Schedule B Number	9030201500
ECCN Number	3A992
Calibration Included	Factory Calibration
Power Supply Voltage	120V 50/60 Hz, 120V/220V Universal

5

Out of 5

Average Customer Review

Share your thoughts with other customers

Write a Review

Displaying 1 review

Most Helpful First | Newest First

Recommend to a Friend

MSO1104Z 100 MHz Mixed Signal Oscilloscope

5.0

This is a great scope for the price. It has so much capability built in, but with all of the software upgrades available, it is a great way to get started with out breaking the bank. There are over 40 videos that do a good job of explaining the use of the different functions. The screen is easy to read and the multi-color display lets you know at a glance the channel displayed. I don't like having all of my eggs in one basket, so I choose to purchase a separate function generator. It is a scope with 4 analog channels and 16 data channels, with the ability to display both the analog and digital channels at the same time makes the MSO1104Z A great feature.

Verified Purchase Larry W Millholland Sr on Feb 27, 2019

Compare

Real people, here to help you.

Get Connected

Join the community and find out what we're up to, experience live product releases, webinars and more!

How Can We Help You?

Questions?

Log in to Your Account

Not a member yet? It's FREE!

Top Categories

Rigol MSO1104Z-B 100 MHz Mixed Signal Oscilloscope with 4 Analog

Recommended for you

Accessories

for the Rigol MSO1104Z-OB

Rigol RP1100D High Voltage Differential Probe, DC-100 MHz, 7000 Vpp

Cal Test CT4103 Universal Adapter Kit

Rigol CB-USBA-USBB-FF-150 USB Cable

Rigol ADP0150BNC 50 Ohm impedance adapter for oscilloscopes or generators

Rigol RPL1116 RPL1116 Standard logic probe for MSO1000Z. Upgrades a DS1000Z Plus or...

Cal Test CT4042 Oscilloscope Accessory Kit. Get the most out of your scope with this...

Aim-TTi Iprober 520 Positional Current/Field Probe DC-5MHz 5mA-20A

Rigol RP1003C Current Probe, DC-50 MHz,50A peak. Requires RP1000P power supply.

Auburn P-20A 3GHz RF Probe BNC. (adaptor for SMA not included )

Rigol PVP2150 150 MHz Passive Probe with 1x:10x selector. With bandwidth of 35 MHz in...

Rigol PVP2350 PVP2350 -- 350 MHz Passive Probe with 1x:10x selector. With bandwidth of...

Rigol RP6150A 1.5GHz Passive Probe

Rigol MSO1104Z-B 100 MHz Mixed Signal Oscilloscope with 4 Analog

Innovative UltraVision technology(Analog Channel)

Besides the powerful functions of DS1000Z, you could get more from MSO1000Z with:

Innovative UltraVision technology(Digital Channel)

Tech Specs

Oscilloscopes/Mixed Signal Oscilloscopes (MSO) Template

General Attributes

Test Equipment General Attributes

5

Featured Review

We'd love to hear from you

Real people, here to help you.

Get Connected

My Account

Promotions & Offers

Resources

Company
