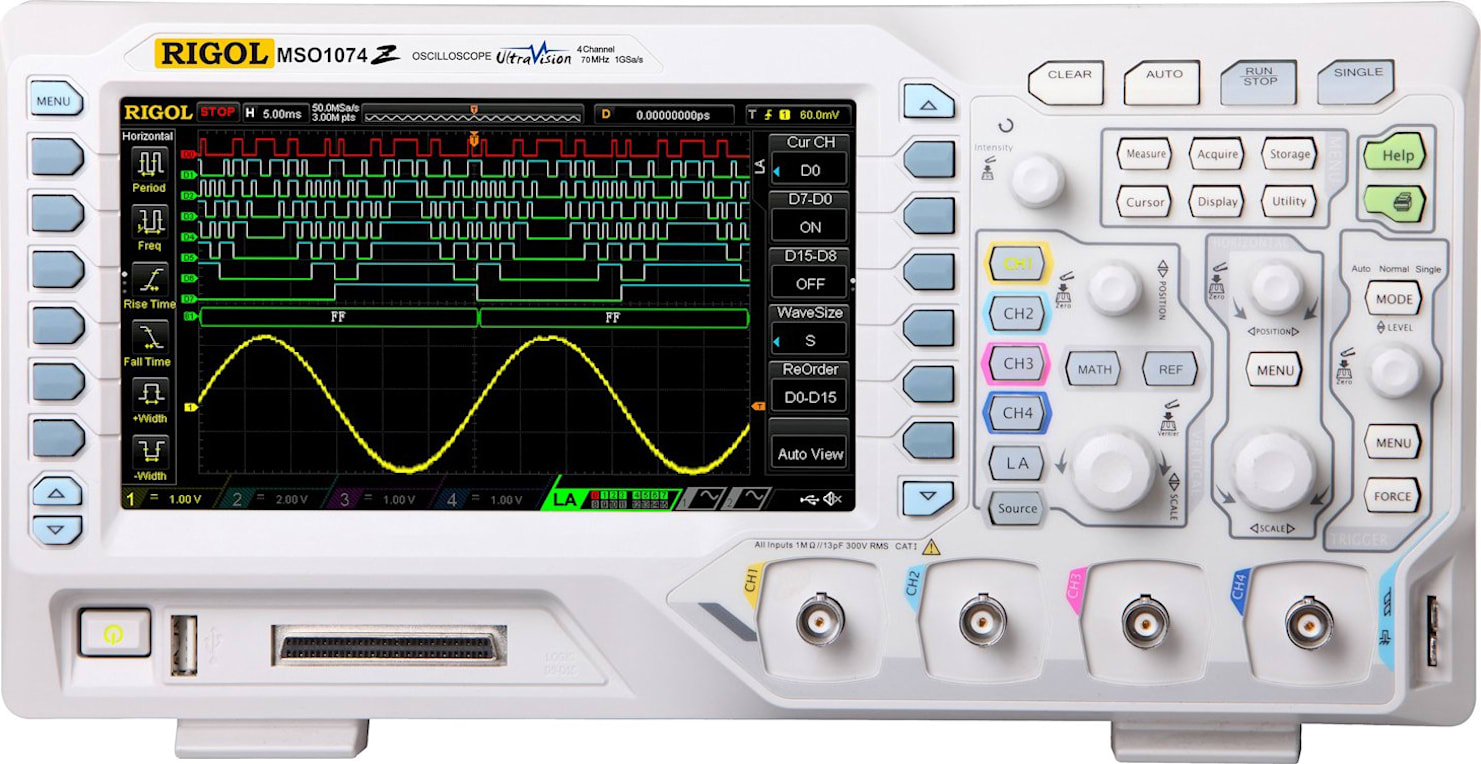

| Sample |
| Sample Mode |
Real-time sample |
| Real-time Sample Rate |
Analog channel: 1 GSa/s (single-channel), 500 MSa/s (dual-channel), 250 MSa/s (four-channel)
Digital channel: 1 GSa/s (8-channel),500 MSa/s (16-channel) |
| Peak Detect |
Analog channel: 4 ns
Digital channel: 4 ns |
| Averaging |
After both the channels finish N samples at the same time, N can be 2, 4, 8, 16, 32, 64, 128, 256, 512, 1024. |
| High Resolution |
The highest resolution is 12 bit |
| Interpolation |
Sin(x)/x (selectable) |
| Minimum Detectable Pulse Width |
Digital channel: 10 ns |
| Memory Depth |
Analog channel:
Single-channel: Auto, 12k pts, 120k pts, 1.2M pts, 12M pts and 24M pts (opt.) are available
Dual-channel: Auto, 6k pts, 60k pts, 600k pts, 6M pts and 12M pts (opt.) are available
Four-channel: Auto, 3k pts, 30k pts, 300k pts, 3M pts and 6M pts (opt.) are available
Digital channel:
12Mpts(8 CH) / 6Mpts(16 CH) Std.; 24Mpts(8 CH) / 12Mpts(16 CH) Opt. |
| Input |
| Number of Channels |
MSO1XX4Z/1XX4Z-S: 1,2 analog-channel + 16-digital-channel
DS1XX4Z/1XX4Z-S: 4-analog-channel |
| Input Coupling |
DC, AC or GND |
| Input Impedance |
Analog channel: (1 MO±1%) || (15 pF±3 pF)
Digital channel: (100 kO±1%) || 8 pF±3 pF) |
Probe Attenuation Coefficient
Analog channel |
0.01X-1000X, 1-2-5 step |
| Max Input Voltage (1MO) |
Analog channel:
CAT I 300 Vrms, CAT II 100 Vrms, transient overvoltage 1000 Vpk With RP2200 10:1 probe: CAT II 300 Vrms
Digital channel: CAT I 40 Vrms, transient overvoltage 800 Vpk |
| Horizontal |
| Time Base Scale |
5 ns/div to 50 s/div |
| Time Base Accura cy[ 1] |
≤ ± 25 ppm |
| Time Base Drift |
≤ ± 5 ppm/year |
| Max Delay Range |
negative delay: ≥1 screen width
positive delay: 1 s to 100,000 s |
| Time Base Mode |
Y-T, X-Y, Roll, Delayed |
| Number of X-Ys |
1 path |
| Waveform Capture Rate [2] |
30,000 wfms/s (dots display) |
| Vertical |
| Bandwidth (-3dB) |
MSO1104Z/1104Z-S/DS1104Z/1104Z-S: DC to 100 MHz
MSO1074Z/1074Z-S/DS1074Z/1074Z-S: DC to 70 MHz |
| Single Bandwidth |
MSO1104Z/1104Z-S/DS1104Z/1104Z-S: DC to 100 MHz
MSO1074Z/1074Z-S/DS1074Z/1074Z-S: DC to 70 MHz |
| Vertical Resolution |
Analog channel: 8 bits
Digital channel: 1 bit |
| Vertical Scale |
1 mV/div to 10 V/div |
| Offset Range |
1 mV/div to 499 mV/div: ± 2 V
500 mV/div to 10 V/div: ± 100 V |
| Bandwidth Limit [1] |
20 MHz |
| Low Frequency Response (AC coupling, -3dB) |
≤5 Hz (on BNC) |
| Rise Time [1] |
MSO1074Z/1074Z-S/DS1074Z/1074Z-S: 3.5 ns
MSO1074Z/1074Z-S/DS1074Z/1074Z-S: 5 ns |
| DC Gain Accuracy [3] |
<10 mV: ±4% full scale
≥10 mV: ±3% full scale |
| DC Offset Accuracy |
±0.1 div ± 2 mV ± 1% offset |
| Channel to Channel Isolation |
DC to maximum bandwidth: >40 dB |
| Vertical (Digital Channel) |
| Threshold |
1 group with 8 channels adjustable threshold |
| LevelType |
TTL (1.4 V)
5.0 V CMOS (+2.5 V), 3.3 V CMOS (+1.65 V)
2.5 V CMOS (+1.25 V), 1.8 V CMOS (+0.9 V)
ECL (-1.3 V)
PECL (+3.7 V)
LVDS (+1.2 V)
0 V
User |
| Threshold range |
±15.0 V, in 10 mV step |
| Threshold accuracy |
±(100 mV + 3% of threshold setting) |
| Dynamic range |
±10 V + threshold |
| Min Voltage Swing |
500 mVpp |
| Vertical resolution |
1 bit |
| Trigger |
| Trigger Level Range |
±5 div from the center of the screen |
| Trigger Mode |
Auto, Normal, Single |
| Holdoff Range |
16 ns to 10 s |
| High Frequency Rejection [1] |
75 kHz |
| Low Frequency Rejection [1] |
75 kHz |
| Trigger Sensitivity [1] |
1.0div (below 5mV or noise rejection is enabled)
0.3div (above 5mV and noise rejection is disabled) |
| Edge Trigger |
| Edge Type |
Rising, Falling, Rising/Falling |
| Pulse Trigger |
| Pulse Condition |
Positive Pulse Width (greater than, lower than, within specified interval)
Negative Pulse Width (greater than, lower than, within specified interval) |
| Pulse Width Range |
8 ns to 10 s |
| Pulse Width Range |
8 ns to 10 s |
| Runt Trigger |
| Pulse Condition |
None, > (greater than), < (lower than), <> (within the specified interval) |
| Polarity |
Positive, Negative |
| Pulse Width Range |
8 ns to 4 s |
| Windows Trigger |
| Windows Type |
Rising, Falling, Rising/Falling |
| Trigger Position |
Enter, Exit, Time |
| Windows Time |
8 ns to 10 s |
| Nth Edge Trigger |
| Edge Type |
Rising, Falling |
| Idle Time |
16 ns to 10 s |
| Number of Edges |
1 to 65535 |
| Slope Trigger |
| Slope Condition |
Positive Slope (greater than, lower than, within specified interval)
Negative Slope (greater than, lower than, within specified interval) |
| Time Setting |
8 ns to 10 s |
| Video Trigger |
| Signal Standard |
Support standard NTSC, PAL and SECAM broadcasting standards
Support 480P, 576P HDTV standards |
| Pattern Trigger |
| Pattern Setting |
H, L, X, Rising Edge, Falling Edge |
| Delay Trigger |
| Edge Type |
Rising, Falling |
| Delay Type |
> (greater than), < (lower than), <> (within the specified interval), >< (outside the specified interval) |
| Delay Time |
8 ns to 10 s |
| TimeOut Trigger |
| Edge Type |
Rising, Falling, Rising & Falling |
| TimeOut Value |
16 ns to 10 s |
| Duration Trigger |
| Pattern Setting |
H, L, X |
| Trigger Condition |
> (greater than), < (lower than), <> (within the specified interval) |
| Duration Time |
8 ns to 10 s |
| Setup/Hold Trigger |
| Edge Type |
Rising, Falling |
| Data Pattern |
H, L,X |
| Setup Time |
8 ns to 1 s |
| Hold Time |
8 ns to 1 s |
| RS232/UART Trigger |
| Polarity |
Normal, Invert |
| Trigger Condition |
Start, Error, Check Error, Data |
| Baud |
2400 bps, 4800 bps, 9600 bps, 19200 bps, 38400 bps, 57600 bps, 115200 bps, User |
| Data Bits |
5 bits, 6 bits, 7 bits, 8 bits |
| I2C Trigger |
| Trigger Condition |
Start, Restart, Stop, Missing Ack, Address, Data, A&D |
| Address Bits |
7 bits, 8 bits, 10 bits |
| Address Range |
0x0 to 0x7F, 0x0 to 0xFF, 0x0 to 0x3FF |
| Byte Length |
1 to 5 |
| SPI Trigger |
| Trigger Condition |
TimeOut, CS |
| Timeout Value |
16 ns to 10 s |
| Data Bits |
4 bit to 32 bit |
| Data Line Setting |
H, L, X |
