Rigol Kelvin Probe Set-OB Kelvin Test Leads

Name: Rigol Kelvin Probe Set-OB Kelvin Test Leads
Brand: Rigol
SKU: RigolKelvin Probe Set-OB
Price: 120.00 USD
Availability: InStock

0 reviews | Catalog: L=2.5M | Model: Rigol Kelvin Probe Set-OB

Compare

Kelvin Probe Set for 4 wire resistance measurements with a - This open box item may be missing original packaging, missing some small accessories or a lightly used demo unit.

This open box item may be missing original packaging, missing some small accessories or a lightly used demo unit.
Kelvin probe set
1000 V, CAT II
250 cm lead length

View Product Details

List Price: $120.00

In Stock:

View Payment Options

Recommended for you

Rigol Kelvin Probe Set

The Kelvin leads have been specially developed for four-wire measurement. The handling of the Kelvin clips is just as simple as in two-wire measurement.

Important Notes

When connecting the Kelvin leads to the test instrument, please follow the instructions of the instrument manufacturer.

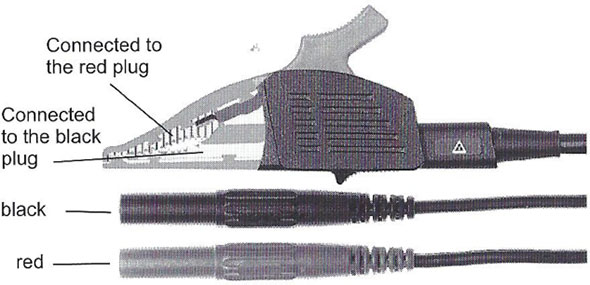

In order to obtain better heat dissipation, we recommend using the shield of the coaxial cable to carry the current (black arm, black plug) and the internal conductor (red arm, red plug) for the voltage connection.
In all Kelvin measurements with one pair of XDK-KELVIN, the arms of a given color (red or black) should point in the same direction in order to ensure maximum precision of measurement.

Principle of Four-Wire Measurement

A defined current I_constant flows through the resistance R, coming from a constant current source. The voltage U over the resistance R can be very accurately measured, as due to the high inner resistance of the voltmeter, the voltage drop on the circuits can be disregarded (see sketch). According to Ohm's law R = U/ I_constant.

XDK-KELVIN Kelvin Probe Set
Rated voltage
with respect to outside	1000 V, CAT II
between opened arms	Max. 600 V
Rated current	2 x 20 A (inner conductor and shield)
Connection to equipment	2xØ 4 mm safety plugs
Lead length	250 cm

Technical Data XDK-KELVIN
Rated voltage
with respect to outside	1000 V, CAT II
between opened arms	Max. 600 V
Rated current	2 x 20 A (inner conductor and shield)
Connection to equipment	2xØ 4 mm safety plugs
Lead length	250 cm

General Attributes
Country of Origin	China
Test Equipment General Attributes
HTS/Schedule B Number	9030908961
ECCN Number	EAR99
