Rigol DSG821A - RF Signal Source for 9kHz to 2.1GHz with IQ Modulation

Name: Rigol DSG821A - RF Signal Source for 9kHz to 2.1GHz with IQ Modulation
Brand: Rigol
SKU: RigolDSG821A
Price: 3699.00 USD
Availability: InStock

0 reviews | Catalog: DSG821A | Model: Rigol DSG821A

Compare

RF Signal Source from 9kHz-2.1GHz with IQ modulation

DSG800A series RF signal generator
9 kHz to 2.1 GHz frequency range with IQ Modulation
Highly cost-effective economical RF signal generator
Superb signal stability
Flexible frequency and amplitude sweep functions
Complete AM/FM/ØM analog modulation functions
Standard LF output function
Powerful pulse modulation function
Small size occupies less bench space
Specially designed to ensure reliability and durability
OCXO option is no longer sold separately. Please see OCXO version of this model for factory installed clock

View Product Details

Your Price: $3,699.00

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded.
Request a Demo

View Payment Options

Request Quote

Items in This Series



Product	Rigol DSG821A RF Signal Source from 9kHz-2.1GHz with IQ modulation	Rigol DSG815 RF Signal Source from 9kHz-1.5GHz, with -100dBc/Hz Phase Noise,+13dBm to -110 ...	Rigol DSG830 RF Signal Source from 9kHz-3GHz, with -100dBc/Hz Phase Noise,+13dBm to -110dB ...	Rigol DSG821 RF Signal Source from 9kHz-2.1GHz	Rigol DSG836 RF Signal Source from 9kHz-3GHz	Rigol DSG836A RF Signal Source from 9kHz-3GHz with IQ modulation
Price
In Stock
Type(Generator)	Bench	Bench	Bench	Bench	Bench	Bench
Minimum Frequency Range (kHz)	9 kHz (0.009 MHz)	9 kHz (0.009 MHz)	9 kHz (0.009 MHz)	9 kHz (0.009 MHz)	9 kHz (0.009 MHz)	9 kHz (0.009 MHz)
Maximum Frequency Range	2.1 GHz (2100 MHz)	1.5 GHz (1500 MHz)	3 GHz (3000 MHz)	2.1 GHz (2100 MHz)	3.6 GHz (3600 MHz)	3.6 GHz (3600 MHz)
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Rigol DSG821A Accessories

Choose a Category

Options
Rack Mounts

for the Rigol DSG821A

Rigol DSG800-PUG Pulse Train Generator option for the DSG800 Series RF signal sources....

Catalog: DSG800-PUG

(0)

In Stock!

Add to Cart

Rigol DSG800-PUM Pulse modulation option for the DSG800 Series RF signal sources

Catalog: DSG800-PUM

(0)

In Stock!

Add to Cart

Rigol RM-1-DG1000Z Rack Mounting Kit for one DG1000Z

Catalog: RM-1-DG1000Z

(0)

In Stock!

Add to Cart

Rigol RM-2-DG1000Z Rack Mounting Kit for two DG1000Z

Catalog: RM-2-DG1000Z

(0)

In Stock!

Add to Cart

Rigol DSG821A - RF Signal Source for 9kHz to 2.1GHz with IQ Modulation

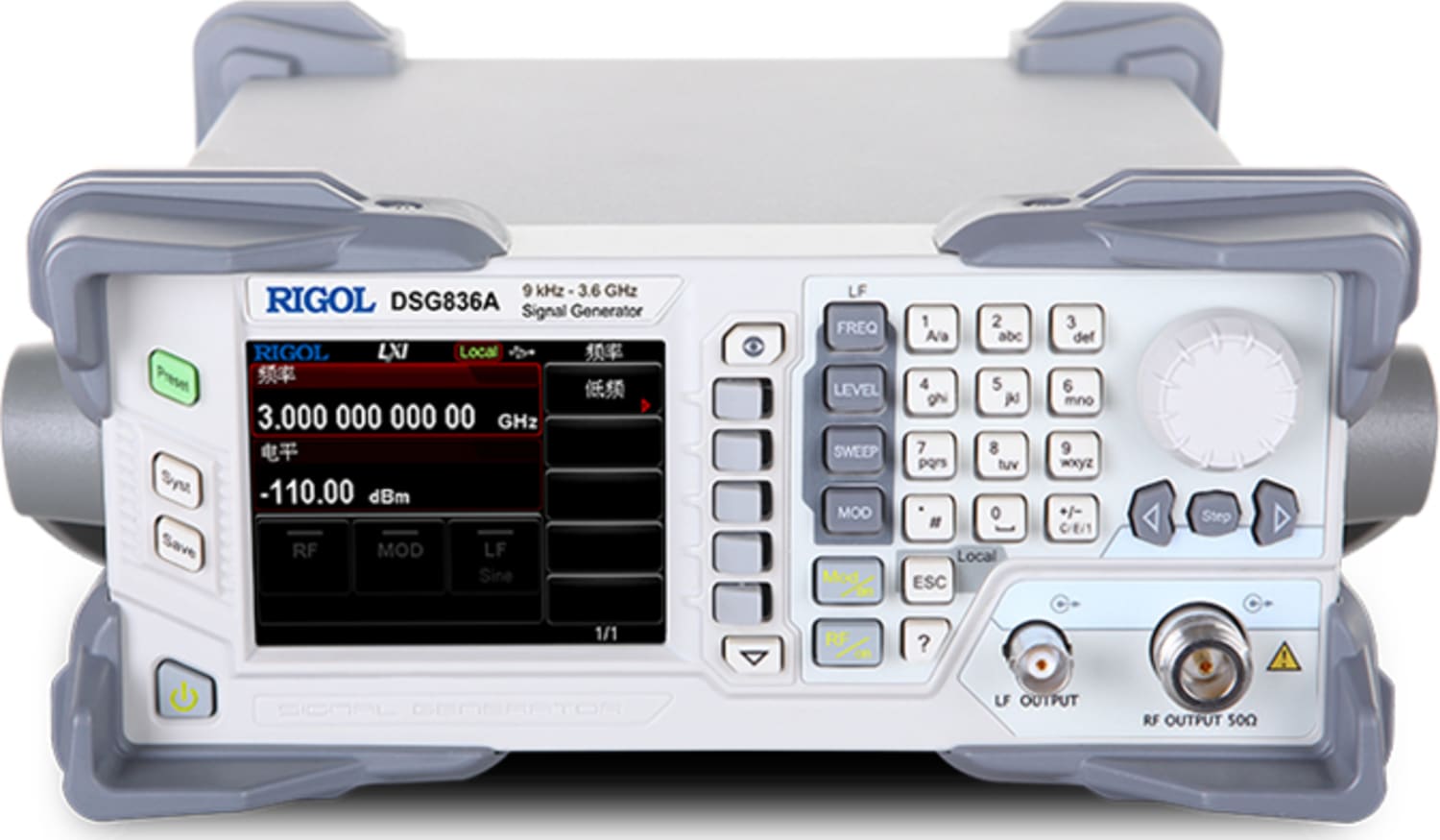

DSG800A series RF signal generator
9 kHz to 2.1 GHz frequency range with IQ Modulation
Highly cost-effective economical RF signal generator

Rigol DSG800 series RF signal generators are available in a variety of bandwidth ranges, as well as with optional IQ modulation capability. The DSG800 set a new standard for price and performance in a small form factor, providing low price, along with high capability and reliability.

The following is an overview of available models:

Model	Frequency Range
DSG815	9 kHz-1.5 GHz
DSG821	9 kHz-2.1 GHz
DSG821A	9 kHz-2.1 GHz with IQ modulation
DSG830	9 kHz-3 GHz
DSG836	9 kHz-3.6 GHz
DSG836A	9 kHz-3.6 GHz with IQ modulation

Functions similar to those of high-level RF signal generators:

Flexible frequency and amplitude sweep functions
Complete AM/FM/ØM analog modulation functions
Standard LF output function
Powerful pulse modulation function
Open vector modulation function
System flatness calibration function
Simple and easy to operate

Measured at 0 dBm, Harmonics vs. frequency

Measured SSB phase noise

Maximum and minimum level vs. frequency

Measured maximum level vs. frequency

Frequency Range
DSG815	9 kHz to 1.5 GHz
DSG821(A)	9 kHz to 2.1 GHz
DSG830	9 kHz to 3 GHz
DSG836(A)	9 kHz to 3.6 GHz
Frequency
Frequency resolution	0.01 Hz
Setting time ⁽¹⁾	< 10 ms (typ.)
Frequency Band
Band	Frequency range	N ⁽²⁾
1	f < 227.5 MHz	0.25
2	227.5 MHz ≤ f < 455 MHz	0.125
3	455 MHz ≤ f < 910 MHz	0.25
4	910 MHz ≤ f < 1820 MHz	0.5
5	1820 MHz ≤ f ≤ 3600 MHz	1
Internal Reference Frequency
Reference frequency	10 MHz
Temperature stability	In temperature range 0° to 50° , reference to 25°	< 2 ppm
	With option OCXO-B08	< 5 ppb
Aging rate		< 1 ppm/year
	With option OCXO-B08	< 30 ppb/year
Internal reference frequency output	Frequency	10 MHz
	Level	+5 dBm to +10 dBm
External reference frequency input	Frequency	10 MHz
	Level	0 dBm to +10 dBm
	Maximum deviation	±5 ppm
Frequency Sweep
Sweep type	Step sweep (equally or logarithmically spaced frequency steps) List sweep (list with arbitrary frequency steps)
Sweep mode	Single, continuous
Sweep range	Full frequency range
Sweep shape	Triangle, ramp
Step change	Linear or logarithmic
Number of points	Step sweep	2 to 65535
	List sweep	1 to 6001
Dwell time	20 ms to 100 s
Trigger mode	Auto, key, external, bus (USB, LAN)

⁽¹⁾ Time from receipt of SCPI command or trigger signal to within 0.1 ppm of final frequency (final frequency ≥ 227.5 MHz) or within 100 Hz (final frequency < 227.5 MHz).
⁽²⁾ N is a factor used to help define certain specifications within the manual.

Tech Specs

Generators / Counters/RF Signal Generator Template
Type(Generator)	Bench
Minimum Frequency Range (kHz)	9 kHz (0.009 MHz)
Maximum Frequency Range	2.1 GHz (2100 MHz)
Modulation Types (generator)	AM, CW, FM, Other, PM
Output dB Range Min	-110 dBm (-110 dB)
Output dB Range Max	20 dBm (20 dB)
Memory for Presets	No
Stereo	No
Test Equipment General Attributes
Unique Features	-High Power Output with no external amplifier needed -Engineers can generate more complex signals without additional hardware using the advanced modulation schemes including IQ Modulation - High accuracy timebase option for demanding applicaitons
Warranty	3 YEARS
Safety Approval	CE
Interfaces I/O	LXI, RF, USB
Storage	Internal Memory, USB Flash Drive
Product Weight	9.3 LBS
Product Height	4.41 IN
Product Length	12.54 IN
Product Width	10.3 IN
Shipping Weight	15 LBS
HTS/Schedule B Number	9030400000
ECCN Number	3A992.a
Calibration Included	Factory Calibration
Power Supply Voltage	120V/220V Universal
Country of Origin	China
Shipping Height	10.00 IN
Shipping Length	18.00 IN
Shipping Width	14.00 IN
