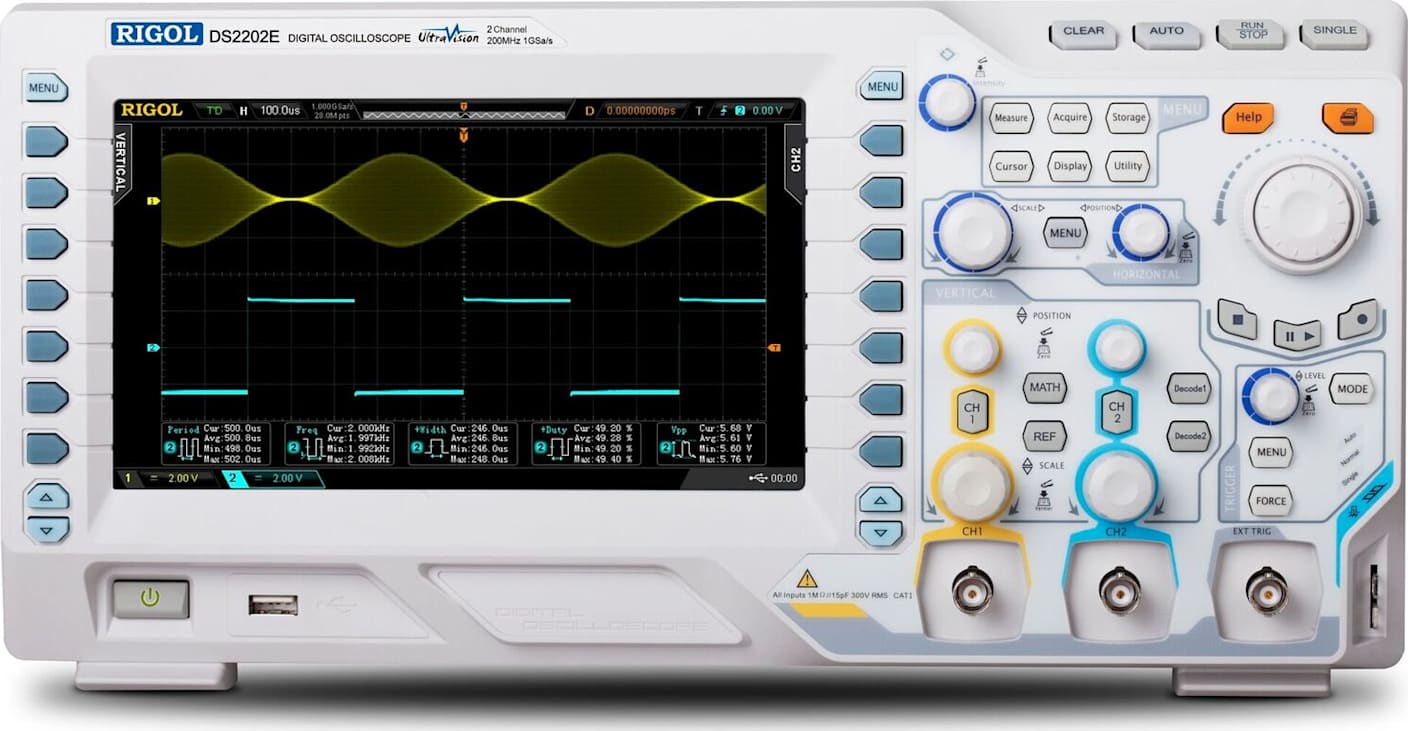

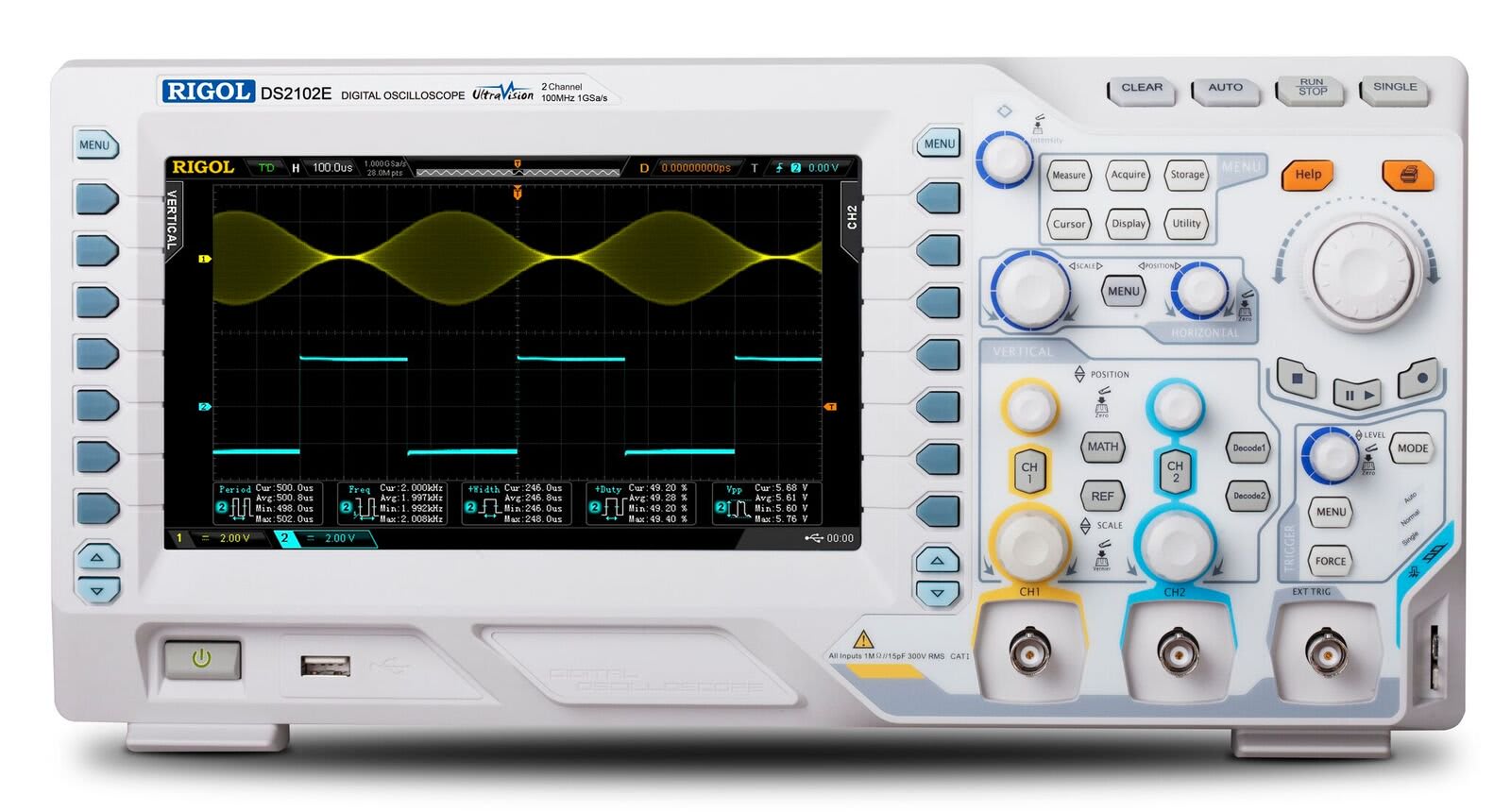

| Rigol DS2000E Series Specifications |
| Sample Mode |
Real-time Sampling |
Real-time Sample
Rate |
1 GSa/s on both channels |
| Peak Detection |
500 ps |
| Averaging |
After all the channels have reached N times of sampling at the same time, N can be 2, 4, 8, 16, 32, 64, 128, 256,
512, 1024, 2048, 4096, or 8192. |
| High Resolution |
12-bit resolution when ≥5 µs/div @ 1 GSa/s |
| Memory Depth |
Auto, 7 kpts, 70 kpts, 700 kpts, 7 Mpts, and 28 Mpts |
| Number of Channels |
2 analog channels |
| Input Coupling |
DC, AC or GND |
| Input Impedance |
(1 MΩ±1%)||(16 pF±3 pF) or 50 Ω±1.5% |
Probe Attenuation
Coefficient |
0.01X-1000X, at 1-2-5 step |
Maximum Input
Voltage (1 MΩ) |
CAT I 300 Vrms, CAT II 100 Vrms, Transient Overvoltage 1000 Vpk |
| Timebase Scale |
DS2102E: 5.000 ns/div to 1.000 ks/div
DS2202E: 2.000 ns/div to 1.000 ks/div |
Channel to Channel
Skew |
1 ns (typical), 2 ns (maximum) |
| Max. Record Length |
28 Mpts on both channels |
| Timebase Accuracy [1] |
≤±25 ppm |
| Clock Drift |
≤±5 ppm/year |
| Max. Delay Range |
Negative Delay: =1 screen width
Positive Delay: 1 s to 100 ks |
| Timebase Mode |
Y-T, X-Y, Roll |
| Number of X-Ys |
1 path |
Waveform Capture
Rate [2] |
50,000 wfms/s (dots display) |
Bandwidth (-3 dB)
(50 Ω) |
DS2102E: DC to 100 MHz
DS2202E: DC to 200 MHz |
Single-shot Bandwidth
(50 Ω) |
DS2102E: DC to 100 MHz
DS2202E: DC to 200 MHz |
| Vertical Resolution |
8 bit |
| Vertical Scale [3] |
When the input impedance is 50 Ω: 500 µV/div to 1 V/div
When the input impedance is 1 MΩ: 500 µV/div to 10 V/div |
| Offset Range |
When the input impedance is 50 Ω:
500 µV/div to 50 mV/div: ±2 V
51 mV/div to 200 mV/div: ±10 V
205 mV/div to 1 V/div: ±12 V
When the input impedance is 1 MΩ:
500 µV /div to 50 mV/div: ±2 V
51 mV/div to 200 mV/div: ±10 V
205 mV/div to 2 V/div: ±50 V
2.05 V/div to 10 V/div: ±100 V |
| Bandwidth Limit [1] |
DS2102E: 20 MHz
DS2202E: 20 MHz/100 MHz |
Low Frequency
Response (AC
Coupling, -3 dB) |
≤5 Hz (on BNC) |
| Calculated Rise Time [1] |
DS2102E: 3.5 ns
DS2202E: 1.8 ns |
| DC Gain Accuracy [3] |
±2% of full scale |
| DC Offset Accuracy |
±0.1 div±2 mV±1% of offset value |
Channel to Channel
Isolation |
DC to maximum bandwidth: >40 dB |
| Trigger Level Range |
Internal |
± 5 div from the center of the screen |
| EXT |
±4 V |
| Trigger Mode |
Auto, Normal, Single |
| Holdoff Range |
100 ns to 10 s |
High Frequency
Rejection [1] |
75 kHz |
Low Frequency
Rejection [1] |
75 kHz |
| Trigger Sensitivity |
1 div (below 10 mV or noise rejection enabled)
0.3 div (above 10 mV and noise rejection disabled) |
| Edge Trigger |
| Edge Type |
Rising, Falling, Rising/Falling |
| Pulse Trigger |
| Pulse Condition |
Positive Pulse Width (greater than, smaller than, within a specific range)
Negative Pulse Width (greater than, smaller than, within a specific range) |
| Pulse Width |
2 ns to 4 s |
| Runt Trigger |
| Pulse Condition |
None, >, <, <> |
| Pulse Polarity |
Positive, Negative |
| Pulse Width Range |
2 ns to 4 s |
| Windows Trigger (Optional) |
| Windows Type |
Rising, Falling, Rising/Falling |
| Trigger Position |
Enter, Exit, Time |
| Windows Time |
16 ns to 4 s |
| Nth Edge Trigger (Optional) |
| Edge Type |
Rising, Falling |
| Idle Time |
16 ns to 4 s |
| Number of Edges |
1 to 65535 |
| Slope Trigger |
| Slope Condition |
Positive Slope (greater than, smaller than, within a specific range)
Negative Slope (greater than, smaller than, within a specific range) |
| Time Setting |
10 ns to 1 s |
| Video Trigger |
| Polarity |
Positive, Negative |
| Synchrony |
All Lines, Line Num, Odd Field, Even Field |
| Standard |
standard: NTSC, PAL/SECAM, 480P, 576P
optional: 720P, 1080P, 1080I |
| Pattern Trigger |
| Pattern Setting |
H, L, X, Rising Edge, Falling Edge |
| Delay Trigger (Optional) |
| Edge Type |
Rising, Falling |
| Delay Type |
>, <, <>, >< |
| Delay Time |
2 ns to 4 s |
| TimeOut Trigger (Optional) |
| Edge Type |
Rising, Falling, Rising/Falling |
| Timeout Time |
16 ns to 4 s |
| Duration Trigger (Optional) |
| Pattern Setting |
H, L, X |
| Trigger Criteria |
>, <, <> |
| Duration Time |
2 ns to 4 s |
| Setup/Hold Trigger |
| Edge Type |
Rising, Falling |
| Data Type |
H, L |
| Setup Time |
2 ns to 1 s |
| Hold Time |
2 ns to 1 s |
| RS232 Trigger |
| Polarity |
Normal, Invert |
| Trigger Condition |
Start, Error, Check Error, Data |
| Baud |
2400 bps, 4800 bps, 9600 bps, 19200 bps, 38400 bps, 57600 bps, 115200 bps, 230400 bps, 460800 bps, 921600
bps, 1 Mbps, and User |
| Data Bits |
5 bit, 6 bit, 7 bit, 8 bit |
| I2C Trigger |
| Trigger Condition |
Start, Restart, Stop, Missing ACK, Address, Data, A&D |
| Address Bits |
7 bits, 8 bits, 10 bits |
| Address Range |
0 to 127, 0 to 255, 0 to 1023 |
| Byte Length |
1 to 5 |
| SPI Trigger |
| Trigger Condition |
Timeout |
| Timeout Value |
100 ns to 1 s |
| Data Bits |
4 bits to 32 bits |
| Data Setting |
H, L, X |
| CAN Trigger (Optional) |
| Signal Type |
Rx, Tx, CAN_H, CAN_L, Differential |
| Trigger Condition |
SOF, EOF, Frame Type, Frame Error |
| Baud |
10 kbps, 20 kbps, 33.3 kbps, 50 kbps, 62.5 kbps, 83.3 kbps, 100 kbps, 125 kbps, 250 kbps, 500 kbps, 800 kbps, 1
Mbps, User |
| Sample Point |
5% to 95% |
| Frame Type |
Data, Remote, Error, Over Load |
| Error Type |
Bit Fill, Answer Error, Check Error, Format Error, Random Error |
| USB Trigger (Optional) |
| Baud |
Low Speed, Full Speed |
| Trigger Condition |
SOP, EOP, RC, Suspend, Exit Suspend |
| LIN Trigger (Optional) |
| Version |
1.X, 2.X, Both |
| Trigger Condition |
Sync, Identifier, Data, ID&Data, Wakeup, Sleep, Error |
| ID Range |
0 to 63 |
| Data Comparison |
=, ≈, <, >, =, = |
| Data Length |
1 to 8 |
| Data Level |
H, L |
| Baud Rate |
19200 bps, 10417 bps, 9600 bps, 4800 bps, 2400 bps, 1200 bps, User |
| Error Type |
Sync, Even-Odd, Checksum |
| Marker |
Manual Mode |
Voltage Deviation between Cursors ( △ V)
Time Deviation between Cursors ( △ T)
Reciprocal of △ T (Hz) (1/ △ T) |
| Track Mode |
Voltage and Time Values of the Waveform Point |
| Auto Mode |
Allows to display cursors during auto measurement |
| Auto Measurement |
Maximum, Minimum, Peak-Peak Value, Top Value, Bottom Value, Amplitude, Average, Vrms-N, Vrms-1, Overshoot,
Pre-shoot, Area, Period Area, Frequency, Period, Rise Time, Fall Time, Positive Pulse Width, Negative Pulse Width,
Positive Duty Cycle, Negative Duty Cycle, Delay AξB , Delay AξB , Delay AξB , Delay AξB ,
Phase AξB , Phase AξB , Phase AξB , Phase AξB |
Number of
Measurements |
Displays 5 measurements at the same time |
| Measurement Range |
Screen region or cursor region |
| Measurement Statistics |
Current, Average, Max, Min, Standard Deviation, Number of Measurements |
| Frequency Counter |
Hardware 6-bit frequency counter (channels are selectable) |
Waveform
Operation |
A+B, A-B, A×B, A÷B, FFT, Digital Filter, Editable Advanced Operation, Logic Operation |
FFT Window
Function |
Rectangle, Hanning, Blackman, Hamming |
| FFT Display |
Split, Full screen |
FFT Vertical
Scale |
Vrms, dB |
| Logic Operation |
AND, OR, NOT, XOR |
| Math Function |
Intg, Diff, Lg, Exp, Sqrt, Sine, Cosine, Tangent |
Number of
Buses for
Decoding |
2 |
| Decoding Type |
Parallel (standard), RS232/UART (optional), I2C (optional), SPI (optional), CAN (optional),
LIN (optional) |
| Display Type |
8.0-inch (203 mm) TFT LCD |
| Display Resolution |
800 Horizontal ×RGB×480 Vertical Pixel |
| Display Color |
160,000 Color (TFT) |
| Persistence Time |
Min, 50 ms, 100 ms, 200 ms, 500 ms, 1 s, 2 s, 5 s, 10 s, 20 s, Infinite |
| Display Type |
Dots, Vectors |
| Real-time Clock |
Time and Date (adjustable for users) |
| Standard Ports |
USB Host (USB-GPIB supported), USB Device, LAN, Aux Output (TrigOut/PassFail) |
| General Specification |
| Output Voltage [1] |
About 3 V, peak-peak |
| Frequency [1] |
1 kHz |
| Power Voltage |
100 V to 240 V, 45 Hz to 440 Hz |
| Power |
Maximum 50 W |
| Fuse |
2 A, T degree, 250 V |
| Temperature Range |
Operating: 0°C to +50°C |
| Non-operating: -40°C to +70°C |
| Cooling Method |
Fan cooled |
| Humidity Range |
0°C to +30°C : ≤95%RH |
| +30°C to +40°C : ≤75%RH |
| +40°C to +50°C : ≤45%RH |
| Altitude |
Operating: below 3,000 m |
| Non-operating: below 15,000 m |
| Dimensions [4] |
Width×Height×Depth = 361.6 mm×179.6 mm×130.8 mm |
| Weight [5] |
Package Excluded |
3.9 kg±0.2 kg |
| Package Included |
4.5 kg±0.5 kg |
| The recommended calibration interval is 18 months. |
| EMC |
complies with EMC Directive 2014/30/EU,
complies with or above the standard specified in IEC61326-1:2013/EN61326-1:2013 Group 1 Class A |
| CISPR 11/EN 55011 |
|
| IEC 61000-4-2:2008/EN 61000-4-2 |
±4.0 kV (contact discharge), ±8.0 kV (air discharge) |
| IEC 61000-4-3:2002/EN 61000-4-3 |
3 V/m (80 MHz to 1 GHz); 3 V/m (1.4 GHz to 2 GHz);
1 V/m (2.0 GHz to 2.7 GHz) |
| IEC 61000-4-4:2004/EN 61000-4-4 |
1 kV power |
| IEC 61000-4-5:2001/EN 61000-4-5 |
0.5 kV (phase-to-neutral voltage); 1 kV (phase-to-earth voltage);
1 kV (neutral-to-earth voltage) |
| IEC 61000-4-6:2003/EN 61000-4-6 |
3 V, 0.15 to 80 MHz |
| IEC 61000-4-11:2004/EN 61000-4-11 |
voltage dip: 0% UT during half cycle; 0% UT during 1 cycle;
70% UT during 25 cycles
short interruption: 0% UT during 250 cycles |
| Safety |
complies with IEC 61010-1:2010 (Third Edition)/EN 61010-1:2010, UL 61010-1:2012 R4.16 and CAN/CSA-C22.2
No. 61010-1-12+ GI1+ GI2 |
Note [1] : Typical.
Note [2] : Maximum value. 10 ns, dots display, auto memory depth.
Note [3] : 500 µV/div is a magnification of 1 mV/div. When calculating the DC Gain Accuracy, the full scale should be considered as 8 mV (calculated based on 1 mV/div).
Note [4] : Supporting legs and handle folded, knob height included.
Note [5] : Standard configuration. |
