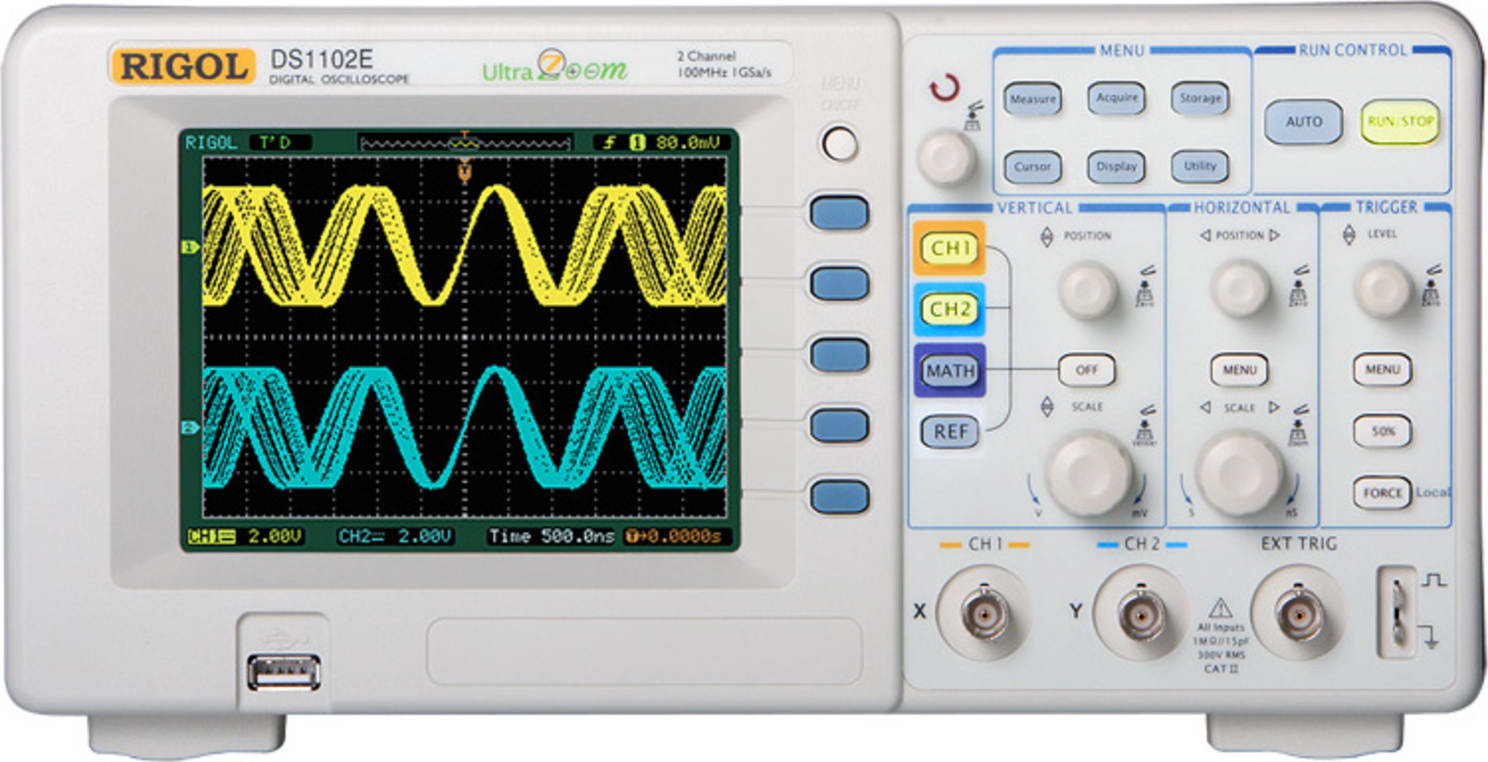

Rigol DS1102E-B

Name: Rigol DS1102E-B
Brand: Rigol
SKU: RIGOLDS1102E-OB
Price: 399.00 USD
Availability: InStock
Rating: 4.50 (2 reviews)

4.5 (2 Reviews) | Model: Rigol DS1102E-OB

Images (7) | Videos (2)

Compare

100 MHZ DSO Oscilloscope 2 CH 1 GHz/s. Full factory warranty. -Not all accessories may be included. Original Box may be missing or damaged Satisfactory Guarantee extended to 90 days

Full manufactures warranty
Satisfaction Guaranteed or your money back - 90 days
Not all accessories may be included
Check out the reviews below. The rigol ds1102e is one of the most popular 100 Mhz scopes in the USA
Buy from the Top Rigol Distributor in the USA.
1 GSa/s maximum real-time sample rate
1Mpts long Memory Depth. ( Compare this to like scopes with just kb memory vs Mb! )
100 MHz Bandwidth
USB host support on the front of the DS1102E
Ultra compact design. Fits on your desktop better
Advanced trigger modes: Edge, Video, Pulse Width, Slope, Alternate
Adjustable bigger sensitivity: Effactively filter noise from bigger signal and avoid false trigger
Cursor measurements: Manual, Track and Auto Measure modes
10 waveforms, 10 setups, BMP and CSV storage.
Math functions:+, -, x, FFT, Invert
Special digital filter and waveform recorder
Built-in hardware frequency counter
Standard interfaces include USB Device, USB Host, RS-232
Abundant trigger types: edge, pulse width, slope, video, alternate trigger
Direct print to PictBridge compatible printers via USB Device interface.
5.6" TFT QVGA (320X240) with 64K color LCD backlit display,Unique/vivd waveform record and replay
Multi-language user interfacebuilt-in help system
Unique adjustable trigger sensitivity enables to meet different demands
Enable to measure 20 types of wave parameters and track measurements via cursor automatically

View Product Details

List Price: $399.00

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

for the Rigol DS1102E-OB

Rigol RP1100D High Voltage Differential Probe, DC-100 MHz, 7000 Vpp

Catalog: RP1100D

(0)

In Stock!

Add to Cart

Cal Test CT4103 Universal Adapter Kit

Catalog: CT4103

(9)

In Stock!

Add to Cart

Rigol ADP0150BNC 50 Ohm impedance adapter for oscilloscopes or generators

Catalog: ADP0150BNC

(30)

In Stock!

Add to Cart

Cal Test CT4042 Oscilloscope Accessory Kit. Get the most out of your scope with this...

Catalog: CT4042

(24)

In Stock!

Add to Cart

Aim-TTi Iprober 520 Positional Current/Field Probe DC-5MHz 5mA-20A

Catalog: 58250-0010

(5)

In Stock!

Add to Cart

Rigol RP1003C Current Probe, DC-50 MHz,50A peak. Requires RP1000P power supply.

Catalog: RP1003C

(0)

In Stock!

Add to Cart

Rigol RP1300H 100:1 300 MHz TO 2KV PASSIVE PROBE

Catalog: RP1300H

(2)

In Stock!

Add to Cart

Auburn P-20A 3GHz RF Probe BNC. (adaptor for SMA not included )

Catalog: P-20A

(3)

In Stock!

Add to Cart

Rigol RP6150A 1.5GHz Passive Probe

Catalog: RP6150A

(0)

In Stock!

Add to Cart

The Rigol DS1102E oscilloscope is one of the most popular 100 Mhz oscilloscopes if not the most single popular 100 Mhz oscilloscope in the USA in 2013. This unit has countless reviews online and many reviews on this page from our customers. You cant go wrong after reading all the reviews and feedback from customers.

Five years ago a scope like this was unheard pf for sub 1000 dollars prices. Now this unit is 399 with free shipping. The unit also comes with 1 MP of memory. This is huge and extremely useful! The ds 1102e is a website best seller. To get this distiction it has to be one of the most popular scopes we sell.

This Rigol DS1102E Model is an economical digital oscilloscope with high-performance, which is designed with dual channels and 1 external trigger channel. It provides 20 types of wave parameters for automatically measuring, which contains 10 Voltage and 10 Time parameters. In cursor mode, users can easily measure by moving cursor. Besides, 3 types of cursor measurement are optional: Manual, Track and Auto. This DS1102E DSO provides powerful PC application software: UltraScope, which enables to: Capture and measure wave; Perform local or remote operation; Save waves as ".bmp" format; Save files as ".txt" or ".xls" format; Print waveforms.

Easy to Use Design

Built-in help menu enables information getting more convenient
Multiple Language User Interface, support Chinese & English input
Support U disk and local files storage
Waveform intensity can be adjusted
To display a signal automatically by AUTO
Pop-up menu makes it easy to read and use function
Fine delayed scan function
Built-in FFT function, hold practical digital filters
Pass/Fail detection function enables to output testing results
Math operations available to multiple waves
Powerful PC application software UltraScope
Standard configuration interface: USB
Device, USB Host , RS-232 and support U disk storage and PictBridge print standards
The new function “Key Lock” can meet the needs of industrial production
Support for remote command control

Applications

Electronic Circuit Test
Circuit Functional Test
Logical Relation Between Singals Verification
Circuit of Mixed Signal Test
Education & Training

Automatically Measure 20 Wave Parameters

Automatic measure

DS1000E, DS1000D series oscilloscopes
provide 20 types of wave parameters for
automatically measuring, which contains
10 Voltage and 10 Time parameters

Cursor Measure

FFT cursor measure

In cursor mode, users can easily
measure by moving cursor. Besides, 3
types of cursor measurement are
optional: Manual, Track and Auto

Multiple Trigger

Pattern trigger

Both DS1000E and DS1000D series contain abundant triggers:

Edge trigger, Pulse Width trigger, Video trigger, Slope trigger
Alternate trigger, Pattern trigger (DS1000D), Duration trigger (DS1000D)

Especially the duration trigger is a new type from perfect combination of patten and pulse width trigger. Unique function of adjustable trigger sensitivity is good for filtering possible noise from signal in order to avoid false triggers.

16 Channels Logic Analyzer

Being equipped with 16 channels logic analyzer, DS1000D series mixed
signal oscilloscopes achieve mixed signal measure coordinating with 2
analog channels.

Each channel can be turned on or off independently, or in groups of
8(D7-D0 and D15-D8); also, you can set waveform size and threshold
types or change the display position on screen for digital channel.

Digital channels setup

Waveform Recording

In virtue of waveform recording function from DS1000E and DS1000D, not
only the outputs from two channels could be recorded, but also the waves
outputted by Pass/Fail test could be easily recorded. Totally, up to 1000
frames of waves are available to record. Besides, users can analyze waves
according to reall or save transient waves so as to get more exact datum.

Waveform recording

Pass/Fail Testing

The Pass/Fail function monitors the changes of signals by comparing
whether the input signal is within the pre-defined mask. The testing results
not only can be displayed on screen or output by isolated pass/fail port, but
also can be alarmed according to turn on system sound.

Pass/Fail testing

UltraScope Software

Measurement window

RIGOL provides powerful PC application software: UltraScope, which
enables to: Capture and measure wave; Perform local or remote
operation; Save waves as “.bmp” format; Save files as “.txt” or “.xls”
format; Print waveforms.

Key Lock

Key Lock function

This function is widely used in most productions. All keys are locked
except F1 to F5 and MENU ON/OFF in this mode.
To lock the keyboard, use menu; to unlock, correct code has to be input.
Also, you can reset a new code if necessary.

Model	DS1102E DS1102D (With Logic Analyzer)		DS1052E DS1052D (With Logic Analyzer)
Bandwidth	100 MHz		50 MHz
Channels	Dual Channels + External Trigger
Real-time Sample Rate	1GS/s
Equivalent Sample Rate	25 GSa/s		10 GSa/s
Rise Time	3.5ns		7ns
Memory Depth	Channel Mode	Sample Rate	Normal Memory	Long Memory
	Single Channel	1 GS/s	16 kpts	N/A
	Single Channel	500MS/s Or lower	16 kpts	1 Mpts
	Dual Channel	500MS/s Or lower	8 kpts	512 kpts
Time Base Range	2 ns/div to 50 s/div		5 ns/div to 50 s/div
Trigger Modes	Edge, Video, Pulse Width, Slope, Alternative
Input Impedance	1 MΩ \|\| 15 pF
Vertical Sensitivity	2 mV/div to 10 V/div
Vertical Resolution	8 bits
Input Coupling	DC, AC, Ground
Maximum Input Voltage	400 V (DC + AC peak)
Roll Range	500 ms/div to 50 s/div
Cursor Measurements	Manual, Track and Auto Measure modes.
Math	Add, Subtract, Multiply, FFT
Storage	Internal - 10 Waveforms and Setups / USB - BMP, CSV, Waveforms and Setups
I/O	USB Device, USB Host, RS-232, P/F Out (Isolated)
Display	5.6"TFT (64K, Color LCD), 320 x 234
Power	Worldwide Use, 100 ? 240 V / 50 VA Max
Weight	2.4 kg

Tech Specs

General Attributes
Warranty	3 YEARS
Product Weight	2.4 KILOS (5.29 LBS) Product Weight Packaged:3.8 kg
Product Height	154 MM (6.06 IN)
Product Length	133 MM (5.24 IN)
Product Width	303 MM (11.93 IN)
Country of Origin	China
Oscilloscopes/Digital Oscilloscopes Template
Bandwidth	100 MHz
Channels	2
Sampling Rate	1 GS/S
Memory	1 MP [megapoints] (1024 kB)
Rise Time	3.5 ns
Screen Size	5.7 IN
Bits	8
Test Equipment General Attributes
Unique Features	1 GSa/s maximum real-time sample rate, 25 GSa/s maximum equivalent-time sample rate 1Mpts long Memory Depth 100 MHz, 50 MHz Bandwidths Ultra compact design: 303mm x 154mm x 133mm (WxHxD) 64 k TFT color LCD, bright and vivid waveform display Advanced trigger modes: Edge, Video, Pulse Width, Slope, Alternate Adjustable bigger sensitivity: Effactively filter noise from bigger signal and avoid false trigger 20 automatic measurements
Safety Approval	CE
Interfaces I/O	RS-232, USB Host, USB
Data Logging	Yes
Calibration Included	Factory Calibration
Power Supply Voltage	120V/220V Universal
