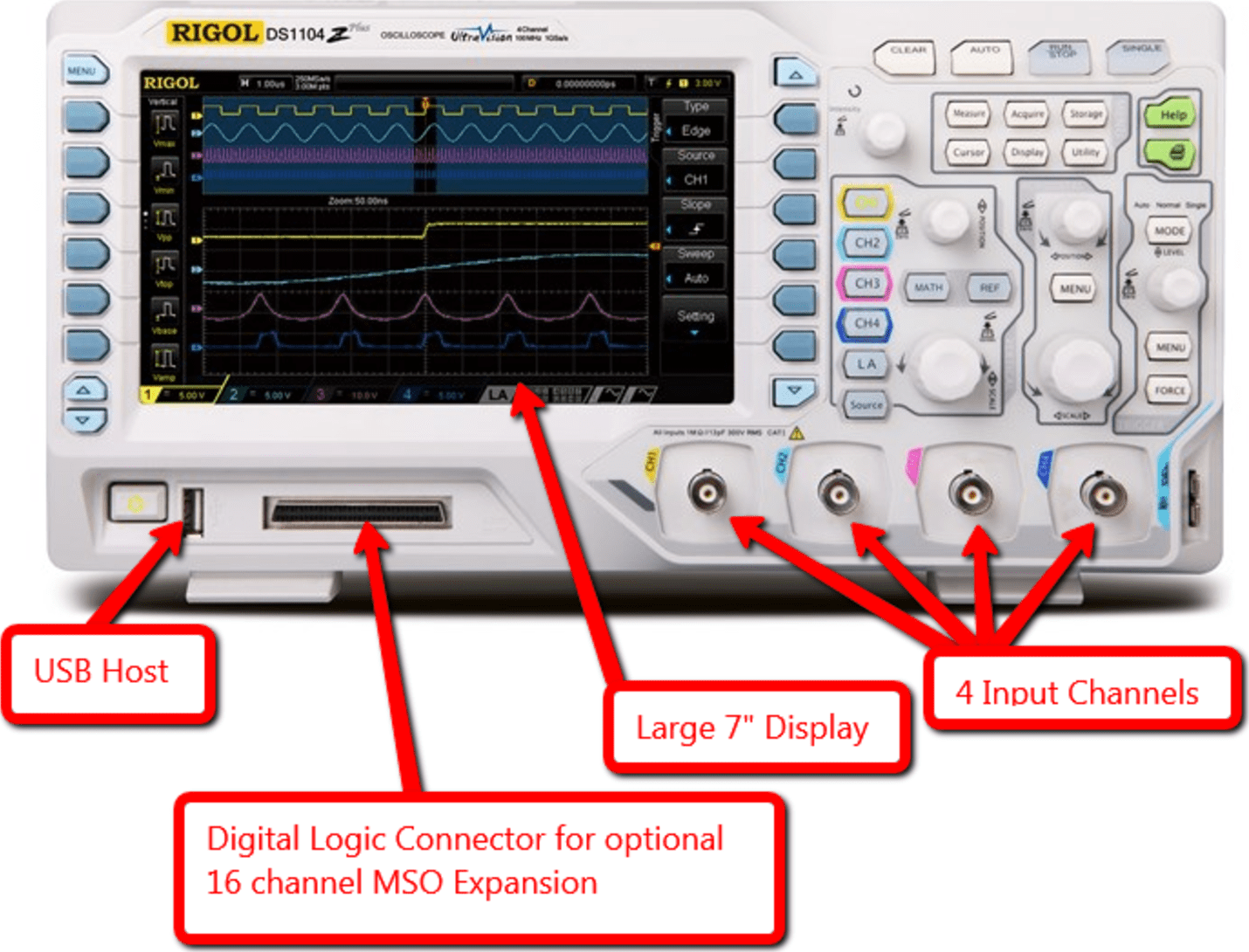

Sample |
Sample Mode |
Real-time Sample |
Real-time Sample Rate |
Analog channel:
1 GSa/s (single-channel), 500 MSa/s (dual-channel), 250 MSa/s (three/four-channel)
Digital channel:
1 GSa/s (8-channel), 500 MSa/s (16-channel) |
Peak Detect |
Analog channel: 4 ns Digital channel: 4 ns |
Averaging |
After all the channels finish N samples at the same time, N can be 2, 4, 8, 16, 32, 64, 128, 256, 512 or 1024 |
High Resolution |
12 bit (max.) |
Interpolation |
Sin(x)/x (optional) |
Minimum Detect Pulse Width |
Digital channel: 10 ns |
Memory Depth |
Analog channel: standard 12 Mpts (single-channel), 6 Mpts (dual-channel), 3 Mpts (three/four-channel); optional 24 Mpts (single-channel), 12 Mpts (dual-channel), 6 Mpts (three/four-channel)
Digital channel:
standard 12 Mpts (8-channel), 6 Mpts (16-channel); optional 24 Mpts (8-channel), 12 Mpts (16-channel) |
Input |
Number of Channels |
MSO1XX4Z/1XX4Z-S: 4 analog channels, 3 analog channels+8 digital channels, 2 analog channels+16 digital channels
DS1XX4Z Plus/1XX4Z-S Plus: 4 analog channels, MSO upgradable
DS1054Z: 4 analog channels |
Input Coupling |
DC, AC or GND |
Input Impedance |
Analog channel:(1 MΩ±1%) || (15 pF±3 pF)
Digital channel:(100 MΩ±1%) || (8 pF±3 pF) |
Probe
Attenuation
Coefficient |
Analog channel:0.01X-1000X, 1-2-5 step |
Maximum Input Voltage (1MΩ) |
Analog channel: CAT I 300 Vrms, CAT II 100 Vrms, transient overvoltage 1000 Vpk With RP2200 10:1 probe: CAT II 300 Vrms
Digital channel: CAT I 40 Vrms, transient overvoltage 800 Vpk |
Horizontal |
Time Base Scale |
5 ns/div to 50 s/div |
Maximum Record Length |
24 Mpts (optional) |
Time Base Accuracy [1] |
≤ ± 25 ppm |
Clock Drift |
≤ ± 5 ppm/Year |
Maximum Delay Range |
Negative delay: 1/2 (Memory Depth/Sample Rate)
Positive delay: 1 s to 500 s |
Time Base Mode |
YT, XY, Roll |
Number of X-Ys |
1 path |
Waveform Capture Rate [2] |
30,000 wfms/s (dots display) |
Zero Offset |
±0.5div*minimum time base scale |
Vertical |
Bandwidth (-3dB) |
MSO1104Z/1104Z-S and DS1104Z Plus/1104Z-S Plus: DC to 100 MHz
MSO1074Z/1074Z-S and DS1074Z Plus/1074Z-S Plus: DC to 70 MHz
DS1054Z: DC to 50 MHz |
Single-shot Bandwidth |
MSO1104Z/1104Z-S and DS1104Z Plus/1104Z-S Plus: DC to 100 MHz
MSO1074Z/1074Z-S and DS1074Z Plus/1074Z-S Plus: DC to 70 MHz
DS1054Z: DC to 50 MHz |
Vertical Resolution |
Analog channel: 8 bits
Digital channel: 1 bit |
Vertical Scale |
1 mV/div to 10 V/div |
Offset Range |
1 mV/div to 499 mV/div: ± 2 V
500 mV/div to 10 V/div: ± 100 V |
Bandwidth Limit1 |
20 MHz |
Low Frequency Response
(AC coupling, -3dB) |
≤5 Hz (on BNC) |
Calculated Rise Time [1] |
MSO1104Z/1104Z-S and DS1104Z Plus/1104Z-S Plus: 3.5 ns
MSO1074Z/1074Z-S and DS1074Z Plus/1074Z-S Plus: 5 ns
DS1054Z: 7 ns |
DC Gain Accuracy [3] |
<10 mV: ±4% full scale
≥10 mV: ±3% full scale |
DC Offset Accuracy |
±0.1 div ± 2 mV ± 1% offset |
Channel to Channel
Isolation |
DC to maximum bandwidth: >40 dB |
Vertical (Digital Channel)(Applicable to MSO1000Z and DS1000Z Plus with MSO Upgrade Option) |
Threshold |
Adjustable threshold of 8 channels per group |
Threshold Selection |
TTL (1.4 V)
5.0 V CMOS (+2.5 V), 3.3 V CMOS (+1.65 V)
2.5 V CMOS (+1.25 V), 1.8 V CMOS (+0.9 V)
ECL (-1.3 V)
PECL (+3.7 V)
LVDS (+1.2 V)
0 V
User |
Threshold Range |
±15.0 V, in 10 mV step |
Threshold Accuracy |
±(100 mV + 3% of threshold setting) |
Dynamic Range |
±10.0 V + threshold |
Minimum Voltage Swing |
500 mVpp |
Vertical Resolution |
1 bit |
Trigger |
Trigger Level Range |
±5 div from the center of the screen |
Trigger Mode |
Auto, Normal, Single |
Holdoff Range |
16 ns to 10 s |
High Frequency
Rejection |
75 kHz |
Low Frequency
Rejection |
75 kHz |
Trigger Sensitivity [1] |
1.0div (below 5mV or noise rejection is enabled)
0.3div (above 5mV and noise rejection is disabled) |
Edge Trigger |
Edge Type |
Rising, Falling, Rising&Falling |
Pulse Trigger |
Pulse Condition |
Positive Pulse Width (greater than, lower than, within specified interval)
Negative Pulse Width (greater than, lower than, within specified interval) |
Pulse Width Range |
8 ns to 10 s |
Runt Trigger |
Pulse Condition |
None, > (greater than), < (lower than), <> (within the specified interval) |
Polarity |
Positive, Negative |
Pulse Width Range |
8 ns to 10 s |
Windows Trigger |
Windows Type |
Rising, Falling, Rising&Falling |
Trigger Position |
Enter, Exit, Time |
Windows Time |
8 ns to 10 s |
Nth Edge Trigger |
Edge Type |
Rising, Falling |
Idle Time |
16 ns to 10 s |
Number of Edges |
1 to 65535 |
Slope Trigger |
Slope Condition |
Positive Slope (greater than, lower than, within specified interval)
Negative Slope (greater than, lower than, within specified interval) |
Time Setting |
8 ns to 10 s |
Video Trigger |
Signal Standard |
Support standard NTSC, PAL and SECAM broadcasting standards
Support 480P, 576P HDTV standards |
Pattern Trigger |
Pattern Setting |
H, L, X, Rising Edge, Falling Edge |
Delay Trigger |
Edge Type |
Rising, Falling |
Delay Type |
> (greater than), < (lower than), <> (within the specified interval), >< (outside the specified interval) |
Delay Time |
8 ns to 10 s |
TimeOut Trigger |
Edge Type |
Rising, Falling, Rising&Falling |
TimeOut Value |
16 ns to 10 s |
Duration Trigger |
Pattern Setting |
H, L, X |
Trigger Condition |
> (greater than), < (lower than), <> (within the specified interval) |
Duration Time |
8 ns to 10 s |
Setup/Hold Trigger |
Edge Type |
Rising, Falling |
Data Pattern |
H, L,X |
Setup Time |
8 ns to 1 s |
Hold Time |
8 ns to 1 s |
RS232/UART Trigger |
Polarity |
Normal, Invert |
Trigger Condition |
Start, Error, Check Error, Data |
Baud |
2400 bps, 4800 bps, 9600 bps, 19200 bps, 38400 bps, 57600 bps, 115200 bps, User |
Data Bits |
5 bits, 6 bits, 7 bits, 8 bits |
I2C Trigger |
Trigger Condition |
Start, Restart, Stop, Missing Ack, Address, Data, A&D |
Address Bits |
7 bits, 8 bits, 10 bits |
Address Range |
0x0 to 0x7F, 0x0 to 0xFF, 0x0 to 0x3FF |
Byte Length |
1 to 5 |
SPI Trigger |
Trigger Condition |
TimeOut, CS |
Timeout Value |
16 ns to 10 s |
Data Bits |
4 bit to 32 bit |
Data Line Setting |
H, L, X |
Measure |
Manual mode | Voltage deviation between cursors (ΔV)
Time deviation between cursors (ΔT)
Reciprocal of ΔT (Hz) (1/ΔT)
Track mode | Voltage and time values of the waveform point
Auto mode | Allow to display cursors during auto measurement |
Auto Measurement |
Measurements of Maximum, Minimum,
Peak-Peak Value, Top Value, Bottom Value,
Amplitude, Average, Mean Square Root,
Overshoot, Pre-shoot, Frequency, Period, Rise
Time, Fall Time, Positive Pulse Width, Negative
Pulse Width, Positive Duty Cycle, Negative
Duty Cycle, Delay A~B , Delay A~B , Phase
A~B , Phase A~B |
Number of
Measurements |
Display 5 measurements at the same time |
Measurement
Range |
Screen Region or Cursor Region |
Measurement
Statistic
Counter |
Average, Max, Min, Standard Deviation
Number of Measurements
Hardware 6 bits counter (channels are
selectable) |
Math |
Waveform |
A+B, A-B, A×B, A/B, FFT, A&&B, A||B, A^B, !A, Intg, Diff, Sqrt, Lg, Ln, Exp, Abs, Filter |
FFT Window |
Rectangle, Hanning, Blackman, Hamming,Flat Top,Triangle |
FFT Mode |
Trace, Memory |
FFT Display |
Half, Full |
FFT Vertical Scale |
dB/dBm, Vrms |
Filter |
Low Pass Filter, High Pass Filter, Band Pass Filter, Band Stop Filter |
Number of Buses
for Decoding |
2 |
Decoding Type |
Parallel (standard), RS232/UART (option), I2C (option), SPI (option) |
Display |
Display Type |
7.0 inches TFT LCD display |
Display Resolution |
800 horizontal×RGB×480 vertical pixel |
Display Color |
16 million color (24 bit true color) |
Persistence Time |
Min, 50 ms, 100 ms, 200 ms, 500 ms, 1 s, 2 s, 5 s, 10 s, 20 s, Infinite |
Display Type |
Dots, Vectors |
I/O |
Standard Ports |
USB HOST, USB DEVICE, LAN, Aux (TrigOut /PassFail) |
Signal Sourse (DS1000Z-S) |
Number of Channels |
2 |
Sample Rate |
200 MSa/s |
Vertical Resolution |
14 bits |
Highest Frequency |
25 MHz |
Standard Waveform |
Sine, Square, Pulse, Triangle, Noise, DC |
Arbitrary Waveform |
Since, Exp.Rise, EXP.Fall, ECG, Gauss, Lorentz, Haversine |
Sine |
Frequency Range |
0.1 Hz to 25 MHz |
Flatness |
±0.5 dB (relative to 1 kHz) |
Harmonic Distortion |
-40 dBc |
Stray (Non-Harmonic) |
-40 dBc |
Total Harmonic Distortion |
1% |
Signal-to-Noise ration |
40 dB |
Square/Pulse |
Frequency Range |
0.1 Hz to 15 MHz |
Rise/Fall time |
<15 ns |
Overshoot |
<5% |
Duty Cycle |
10% to 90% |
Duty Cycle Resolution |
1% to 10 ns (select the greater one) |
Minimum Pulse Width |
20 ns |
Pulse Width Resolution |
10 ns or 5 bits (select the greater one) |
Jitter |
500 ps |
Triangle |
Frequency Range |
0.1 Hz to 100 kHz |
Linearity |
1% |
Symmetry |
0 to 100% |
Noise [1] |
Bandwidth |
25 MHz |
Internal Generated
waveforms |
Frequency Range |
0.1 Hz to 1 MHz |
Arbitrary Waveforms |
Frequency Range |
0.1 Hz to 10 MHz |
Waveform Length |
2 to 16k pts |
Frequency |
Accuracy |
100 ppm (lower than 10 kHz)
50 ppm (greater than 10 kHz) |
Resolution |
0.1 Hz or 4 bit, select the greater one |
Amplitude |
Output Range |
20 mVpp to 5 Vpp, High-resistance
10 mVpp to 2.5 Vpp, 50 Ω |
Resolution |
100 μV or 3 bit, select the greater one |
Accuracy |
2% (1 kHz) |
DC Offset |
Range |
±2.5 V, High-resistance
±1.25 V, 50 Ω |
Resolution |
100 μV or 3 bit, select the greater one |
Accuracy |
2% (1 kHz) |
General Specifications |
Probe Compensation Output |
Output Voltage [1] |
About 3 V, peak-peak |
Frequency [1] |
1 kHz |
Power |
Power Voltage |
100 V to 240 V, 45 Hz to 440 Hz |
Power |
Maximum 50 W |
Fuse |
2 A, T degree, 250 V |
Environment |
Temperature Range |
In operation: 0°C to +50°C
Out of operation: -40°C to +70°C |
Cooling Method |
Fan |
Humidity Range |
0° to +30°C : ≤95°C relative humidity
+35°C to +40°C : ≤75°C relative humidity
+40°C to +50°C : ≤45°C relative humidity |
Altitude |
In operation: under 3,000 meters
Out of operation: under 15,000 meters |
Mechanical |
Dimensions [4] |
Width×Height×Depth =313.1 mm× 160.8 mm×122.4 mm |
Weight [4] |
Without package | 3.2 kg ± 0.2 kg
With package | 3.8 kg ± 0.5 kg |
Adjustment Interval |
|
The recommended calibration interval is one year. |
Regulation Standards |
Electromagnetic |
2004/108/EC |
Compatibility |
Execution standard EN 61326-1:2006 EN
61326-2-1:2006 |
Safety |
UL 61010-1:2004; CAN/CSA-C22.2 NO.
61010-1-2004;
EN 61010-1:2001; IEC 61010-1:2001 |
