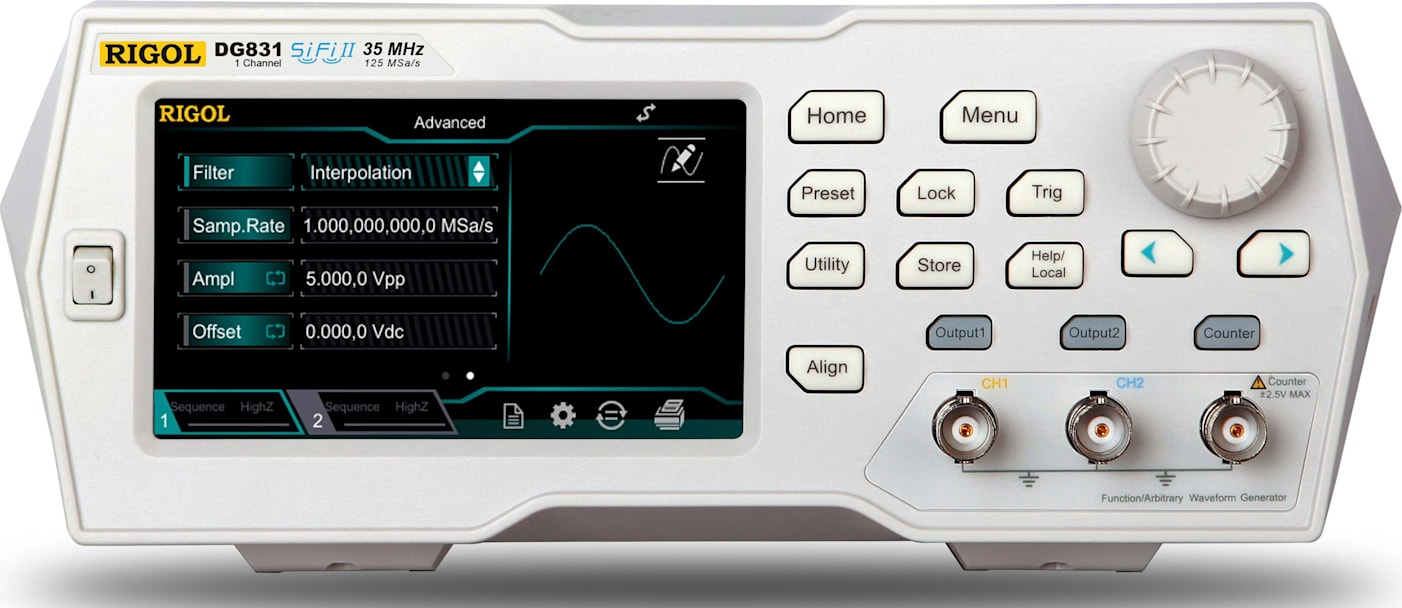

Rigol DG831 - 35 MHz Function / Arbitrary Waveform Generator, 1 Channel

4.5 (2 Reviews) | Catalog: DG831 | Model: Rigol DG831


35MHz Function Generator, 1 Channel, 125MSa/sec, 16Bit Resolution, 2M Memory

  • 35 MHz, single channel function generator
  • Upgradeable to two channel via optional software key
  • Two channel operation is equivalent to two independent signal sources
  • 2 Mpts memory depth (upgradeable to 8 Mpts)
  • High frequency stability: ±1 ppm; low phase noise: -105 dBc/Hz
  • Built-in high-order harmonic generator (at most 8-order harmonics)
  • Built-in 7 digits/s, 240 MHz bandwidth full featured frequency counter
  • 160 built-in arbitrary waveforms, covering common signals in engineering, medical and automotive electronics, math processing, and much more
  • Sample rate up to 125 MSa/s, vertical resolution 16 bits
  • Arbitrary waveform sequence editing function available; arbitrary waveforms also can be generated through PC software
  • Various analog and digital modulation functions: AM, FM, PM, ASK, FSK, PSK, and PWM
  • Standard waveform combine function - capable of outputting specified waveforms combined with basic waveforms
  • Standard channel tracking function - when enabled, all parameters of both channels are updated based on user’s configurations
  • USB HOST and DEVICE interface (standard); USB-GPIB function supported
  • 4.3" TFT color touch screen
View Product Details

Your Price: $449.00

Sign-in for EDU Pricing!

In Stock:
  • Free shipping over $99 - Code: FREESHIP
  • Request a Demo
  • View Payment Options
