Rigol DG4202-OB Function Generator - Channels: 2, Frequency Maximum: 200 Mhz, Frequency Minimum: 1 uHz

Name: Rigol DG4202-OB Function Generator - Channels: 2, Frequency Maximum: 200 Mhz, Frequency Minimum: 1 uHz
Brand: Rigol
SKU: RigolDG4202-OB
Price: 1768.15 USD
Availability: InStock

0 reviews | Catalog: DG4202-OB | Model: Rigol DG4202-OB

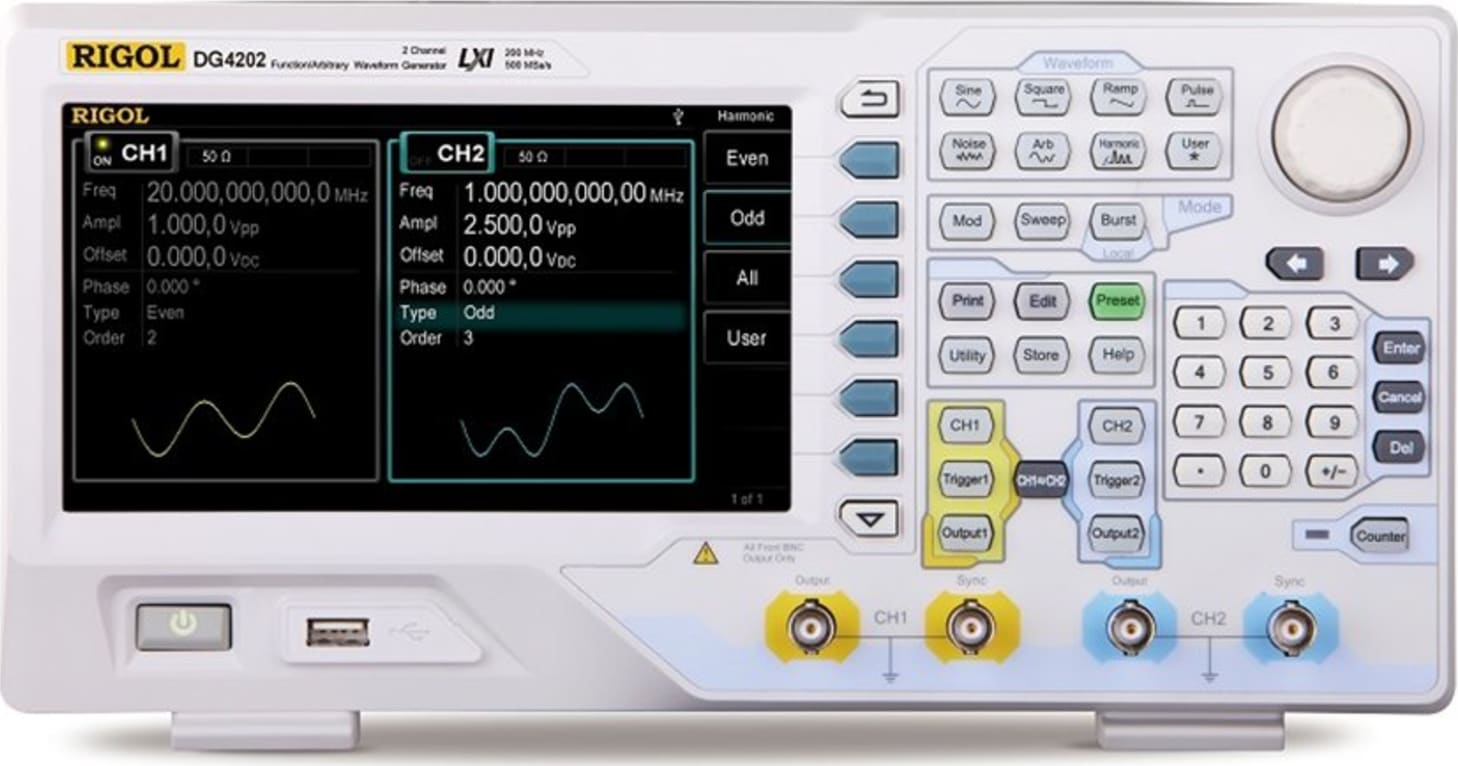

Rigol DG4202 Function / Arbitrary Waveform Generator 200MHz

Compare

2 Channel waveform generator with 200 MHz sine wave and 60 MHz square wave capabilities, 500 MSa/sec sample rate, 16 kPt arbitrary memory length, 7" display, and USB and ethernet (LXI) interfaces. - Used: The packaging was slightly damaged and everything was opened. All parts included and in good condition.

Used: The packaging was slightly damaged and everything was opened. All parts included and in good condition.
Generates sine waves to 200 MHz and square waves to 60 MHz
2 Output Channel
500 MSa/s Sample Rate
130 Built-in Waveforms
7-inch color LCD display
14 bit Vertical resolution
Standard Interfaces including LXI-C (Ethernet), USB device and USB host
±2ppm frequency stability
Phase noise <-115dBc/Hz @ 10kHz (f = 10MHz)
150 built-in arbitrary waveforms
Intuitive arbitrary waveform editing software for PC
16kpts arbitrary waveform length per channel
Built-in 7 digit counter up to 200MHz
Built-in 16th order harmonic generator
7" LCD display (800 x 480)
Supported modulation... AM, FM, PM, ASK, FSK, PSK,BPSK, QPSK, 3FSK, 4FSK, OSK & PWM
Connectivity... LAN(LXI), USB Host & Device
Supplied with... BNC cable, USB cable, UK & European mains leads, quick guide, CD (including user guide & Ultra Station PC software)
Optional Ultra Station Advanced PC software... Additional functionality for Ultra Station - Maths functions, digital filters & windowing
Other options include... 10W power amplifier, 40dB attenuator, rack mount kit, soft carry bag, RCL standard calibration, RCL UKAS calibration

View Product Details

List Price: $2,069.00

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

for the Rigol DG4202-OB

Cal Test CT4103 Universal Adapter Kit

Catalog: CT4103

(7)

In Stock!

Add to Cart

Rigol CB-BNC-BNC-MM-100 BNC Cable (length 1 meter)

Catalog: CB-BNC-BNC-MM-100

(0)

In Stock!

Add to Cart

Rigol BAG-G1 Instrument Carry Case for a DSA800 Spectrum Analyzer, DG4000 generator,...

Catalog: BAG-G1

(6)

In Stock!

Add to Cart

Cal Test CT4036 Function Generator And Freq. Counter Accessory Kit

Catalog: CT4036

(8)

In Stock!

Add to Cart

Cal Test CT4037 Advanced Function Generator Accessory Kit

Catalog: CT4037

(11)

In Stock!

Add to Cart

Rigol PA1011 10W power amplifier for waveform generators

Catalog: PA1011

(0)

In Stock!

Add to Cart

Rigol RM-DS1000Z/DG4000 Rack Mounting Kit for a DG4000Z or DS1000Z

Catalog: RM-DS1000Z/DG4000Z

(2)

In Stock!

Add to Cart

200MHz Function / Arbitrary Waveform Generator

The Rigol DG4202 is two channel function / arbitrary waveform generator to create high-quality signals up to 200 MHz (Sine). Beside the analog output, the device includes a USB-Host- and a USB-device and a LAN interface.

The Rigol Function-generators have a sophisticated and easy to use interface and offer multiple functions for all tasks. The menu navigation is very intuitive and all functions and parameters are easy to locate thanks to the graphical interface.

DG4000 Series Waveform Generators

DG4000 series is a multifunctional generator that combines many functions in one, including Function Generator, Arbitrary Waveform Generator, Pulse Generator, Harmonic Generator, Analog/Digital Modulator, and Counter. All of the 3 models have two channels with complete equivalent functions and precisely phase adjustable, they are the real dual-channel signal generator.

DG4000, adopting the Direct Digital Synthesizer (DDS) technology, can provide stable, precise, pure and low distortion signal. The user-friendly interface design and panel layout bring users an exceptional experience. Besides, the remote control of the generator can be easily done through different standard configuration interfaces, which provides more solutions for users. experience. Besides, the remote control of the generator can be easily done through different standard configuration interfaces, which provides more solutions for users.

As Rigol's newest waveform generator, the DG4000 series is part of a new family of fast, easy-to-use, ultra-modern testing instruments. DG4000 is a multifunctional generator that helps accomplish a range of testing by combining many functions into one instrument. Functions include Function Generation, Arbitrary Waveform Generation, Pulse Generation, Harmonic Generation, and Analog/Digital Modulation and Counting. The DG4000 utilizes Direct Digital Synthesizer (DDS) technology, which delivers stable, precise, low distortion signals. The sleek new design features a high resolution 7” display screen, while user-friendly interface design and panel layout improve efficiency.

Rear Panel

AC Power Input
This generator can accept AC power supply of 100-240V, 45-440Hz.Power Fuse: 250V, T2 A.

LAN
Connect the generator to the local area network for remote control through this interface. This generator conforms to LXI-C instrument standards and can quickly build a test system with other devices to easily realize system integration.

Security Lock Hole
Users can use the security lock (buy it by themselves) to lock the instrument at a fixed location.

USB Device
PC can be connected through this interface to control the generator remotely through PC software.

10MHz In/Out
BNC female connector with 50Ω nominal impedance. The function of this connector is determined by the type of clock used by the generator. DG4000 can use an internal or external clock (refer to the introduction in Clock Source ).

When the internal clock source is used, the connector (used as 10MHz Out) can output a 10MHz clock signal generated by the internal crystal oscillator of the generator.
When the external clock source is used, the connector (used as 10MHz In) accepts a 10MHz external clock signal.
This connector is usually used to synchronize multiple instruments (refer to the introduction in Sync).

CH1: Mod/FSK/Trig
BNC female connector with 50Ω nominal impedance. Its function is determined by the current working mode of CH1.

Mod: If AM, FM, PM, PWM or OSK is enabled for CH1 and external modulation source is used, this connector accepts an external modulation signal.
FSK: If ASK, FSK or PSK is enabled for CH1 and external modulation source is used, this connector accepts an external modulation signal (users can set the polarity of the signal).
Trig In: If CH1 is in a sweep or burst mode and external trigger source is used, this connector accepts an external trigger signal (users can set the polarity of the signal).
Trig Out: If CH1 is in sweep or burst mode and internal or manual trigger source is used, this connector outputs a trigger signal with a specified edge.

CH2: Mod/FSK/Trig
BNC female connector with 50Ω nominal impedance. Its function is determined by the current working mode of CH2.

Mod: If AM, FM, PM, PWM or OSK is enabled for CH2 and external modulation source is used, this connector accepts an external modulation signal.
FSK: If ASK, FSK or PSK is enabled for CH2 and external modulation source is used, this connector accepts an external modulation signal (users can set the polarity of the signal).
Trig In: If CH2 is in sweep or burst mode and external trigger source is used, this connector accepts an external trigger signal (users can set the polarity of the signal).
Trig Out: If CH2 is in sweep or burst mode and internal or manual trigger source is used, this connector outputs a trigger signal with a specified edge.

External Signal Input (Counter)
BNC female connector with 50Ω nominal impedance. It is used to accept an external signal to be measured by the counter.

RIGOL DG4000 SERIES SPECIFICATIONS
Model		DG4062	DG4102	DG4162	DG4202
Maximum Frequency		60MHz	100MHz	160MHz	200MHz
Channels		2
Sample Rate		500MSa/s
Waveforms	Basic	Sine, Square, Ramp, Pulse, Noise, Harmonics
	Built-In Arbitrary	150-off, including: Sinc, Exponential Rise, Exponential Fall, ECG, Gauss, HaverSine, Lorentz, Dual-Tone, DC
Frequency Characteristics	Sine	1μHz to 60MHz	1μHz to 100MHz	1μHz to 160MHz	1µHz to 200MHz
	Square	1μHz to 25MHz	1μHz to 40MHz	1μHz to 50MHz	1µHz to 60MHz
	Ramp	1μHz to 1MHz	1μHz to 3MHz	1μHz to 4MHz	1µHz to 5MHz
	Pulse	1μHz to 15MHz	1μHz to 25MHz	1μHz to 40MHz	1µHz to 100MHz
	Harmonic	1μHz to 30MHz	1μHz to 50MHz	1μHz to 80MHz	1µHz to 100MHz
	Noise (-3dB)	60MHz Bandwidth	80MHz Bandwidth	120MHz Bandwidth	120MHz Bandwidth
	Arbitrary Waveform	1μHz to 15MHz	1μHz to 25MHz	1μHz to 40MHz	1µHz to 50MHz
	Resolution	1μHz
	Accuracy	±2ppm, 18°C to 28°C
Sine Wave Spectral Purity	Harmonic Distortion	<-60dBc typical (DC to 10MHz) <-55dBc typical (1MHz to 10MHz) <-50dBc typical (10MHz to 100MHz) <-40dBc typical (100MHz to 160MHz)
	Total Harmonic Distortion	<0.1% (10Hz to 20kHz, 0dBm)
	Spurious (Non-Harmonic)	<-65dBc (f ≤ 10MHz) <-65dBc + 6dB/octave (f > 10MHz)
	Phase Noise	<-115dBc/Hz @ 10kHz offset (f = 10MHz, 0dBm)
Square Wave	Rise / Fall Time	<12ns typical (1Vpp)	<10ns typical (1Vpp)	<8ns typical (1Vpp)
	Overshoot	≤3% typical (1Vpp)
	Duty Cycle	20.0% to 80.0%, f ≤ 10MHz 40.0% to 60.0%, 10MHz < f ≤ 40MHz 50.0% Fixed, f > 40MHz
	Non-Symmetry	1% of the period + 5ns
	Jitter (rms)	2ppm + 500ps typical (f ≤ 5MHz) 500ps (f > 5MHz)
Ramp Waveform	Linearity	≤1% of peak output, typical
	Symmetry	0% to 100%
Pulse	Period	66.7ns to 1,000,000s	40ns to 1,000,000s	25ns to 1,000,000s
	Pulse Width	≥18ns	≥12ns	≥10ns
	Rising / Falling Edge	≤11ns	≤7ns	≤5ns
	Overshoot	<3% typical (1Vpp)

	Jitter (rms)	2ppm +500ps typical (f ≤ 5MHz, 1Vpp) 500ps (f > 5MHz, 1Vpp)
Arbitrary Waveform	Length	16kpts
	Vertical Resolution	14 bits
	Sample Rate	500MSa/s
	Min. Rise / Fall Time	<5ns typical (1 Vpp)
	Jitter (rms)	2ppm + 500ps typical (f ≤ 5MHz, 1Vpp) 500ps (f > 5MHz, 1Vpp)
	Interpolation Method	Off, Linear
	Editing Mode	Point Edit, Block Edit
Harmonic Generator	Harmonic Order	≤16
	Harmonic Type	Even Harmonic, Odd Harmonic, Order Harmonic, User
	Harmonic Amplitude	The amplitude of each harmonic can be set independently
	Harmonic Phase	The phase of each harmonic can be set independently
Output Characteristics	Impedance	50Ω
	Protection	Short-Circuit Protection - The output is disabled automatically when an overload occurs
	Amplitude Range	1mVpp to 10Vpp (f ≤ 20MHz) 1mVpp to 5.0Vpp (f ≤ 60MHz)	1mVpp to 10Vpp (f ≤ 20MHz) 1mVpp to 5.0Vpp (f ≤ 60MHz) 1mVpp to 2.5Vpp (f ≤ 100MHz)	1mVpp to 10Vpp (f ≤ 20MHz) 1mVpp to 5.0Vpp (f ≤ 60MHz) 1mVpp to 2.5Vpp (f ≤ 100MHz) 1mVpp to 1.0Vpp (f ≤ 160MHz)	1mVpp to 10Vpp (f = 20MHz) 1mVpp to 5.0Vpp (f = 60MHz) 1mVpp to 2.5Vpp (f = 120MHz) 1mVpp to 1.0Vpp (f = 200MHz)
	Amplitude Resolution	1mVpp or 3 digits
	Amplitude Accuracy	±1% of the set value ±2mV, typical
	Amplitude Flatness	±0.1dB (f ≤ 20MHz) ±0.2dB (f ≤ 60MHz)	±0.1dB (f ≤ 20MHz) ±0.2dB (f ≤ 60MHz) ±0.4dB (f ≤ 100MHz)	±0.1dB (f ≤ 20MHz) ±0.2dB (f ≤ 60MHz) ±0.4dB (f ≤ 100MHz) ±0.8dB (f ≤ 160MHz)	±0.1dB (f = 20MHz) ±0.2dB (f = 60MHz) ±0.4dB (f = 100MHz) ±0.8dB (f = 160MHz) ±1.0dB (f = 200MHz)
	Amplitude Units	Vpp, Vrms, dBm
	Offset Range	±5V
	Offset Accuracy	1% of the set value + 5mV + 0.5% of the amplitude
Modulation Characteristics		AM, FM, PM, ASK, FSK, PSK, BPSK, QPSK, 3FSK, 4FSK, OSK, PWM
Burst Characteristics	Carrier Waveforms	Sine, Square, Ramp, Pulse, Noise, Arb (except DC)
	Carrier Frequency	2mHz to 60MHz	2mHz to 100MHz	2mHz to 100MHz
	Burst Count	1 to 1,000,000 or infinite
	Start / Stop Phase	0° to 360°
	Internal Period	2μs to 500s
	Gated Source	External Trigger
	Trigger Source	Internal, External or Manual
	Trigger Delay	0ns to 85s
Frequency Counter	Function	Frequency, Period, Positive / Negative Pulse Width, Duty Cycle
	Frequency Resolution	7 digits / second
	Frequency Range	1μHz to 200MHz

Generators / Counters/Function Generator Template
Channels	2
Frequency Maximum	200 MHz
Frequency Minimum	1 uHz (0.000001 Hz)
Functions	Burst, Noise, Other, Pulse, Ramp, Sine, Square, Sweep
Max Amplitude Vpp @ 50 ohms	10 V
Arbitrary	Yes
Sample Rate	500 MSa/S
Screen Type	TFT
Color Screen	Yes
Triggering	Yes
Counter that displays frequency on screen.	Yes
Modulation Types	AM, FM, FSK, PSK, PWM
Graphical Display	Yes
Memory	16 kB
Direct Digital Synthesis (DDS)	Yes
PC Based	No
General Attributes
Warranty	3 YEARS
Product Weight	7 LBS
Shipping Weight	7 LBS
Product Height	6.3 IN
Product Length	4.6 IN
Product Width	12 IN
Shipping Height	8.5 IN
Shipping Length	13.7 IN
Shipping Width	17.2 IN
Country of Origin	China
Test Equipment General Attributes
Unique Features	Harmonic Waveforms
Safety Approval	CE
Interfaces I/O	LAN / Ethernet, LXI, USB Host, USB
Storage	Internal Memory, USB Flash Drive
Data Logging	No
HTS/Schedule B Number	9030890100
ECCN Number	3A992.a
Calibration Included	Factory Calibration
