| Model |
DG1022Z |
DG1032Z |
DG1062Z |
| Channel |
2 |
2 |
2 |
| Maximum Frequency |
25MHz |
30MHz |
60MHz |
| Sample Rate |
200MSa/s |
| Basic waveforms |
Sine, Square, Ramp, Pulse, Noise |

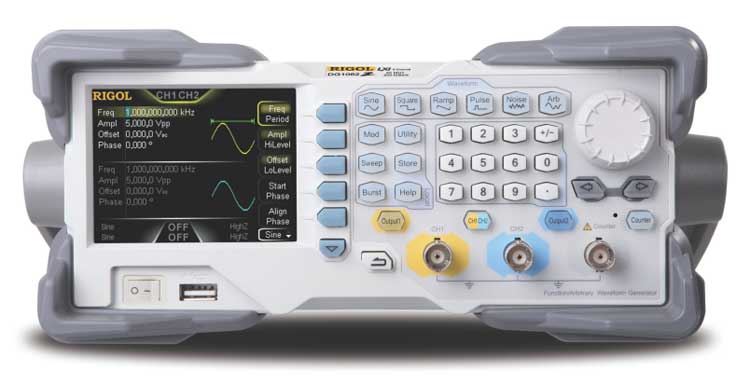

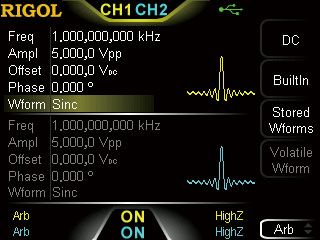

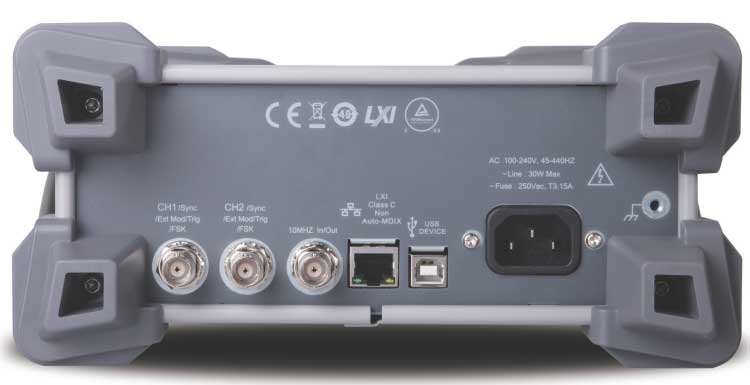

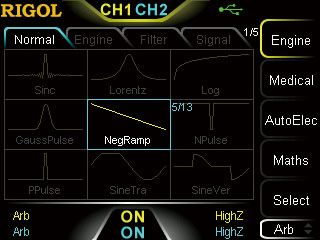

Built-in Arbitrary
Waveforms |
160 kinds, including Sinc, Exponential Rise, Exponential
Fall, ECG, Gauss, HaverSine, Lorentz, Dual-Tone, etc. |
| Sine |
1µHz to 25MHz |
1µHz to 30MHz |
1µHz to 60MHz |
| Square |
1µHz to 25MHz |
1µHz to 25MHz |
1µHz to 25MHz |
| Ramp |
1µHz to 500kHz |
1µHz to 500kHz |
1µHz to 1MHz |
| Pulse |
1µHz to 15MHz |
1µHz to 15MHz |
1µHz to 25MHz |
| Harmonic |
1µHz to 10MHz |
1µHz to 10MHz |
1µHz to 20MHz |
| Noise (-3dB) |
25MHz
bandwidth |
30MHz
bandwidth |
60MHz
bandwidth |
| Arbitrary Waveform |
1µHz 10MHz |
1µHz to 10MHz |
1µHz to 20MHz |
| Resolution |
1µHz |
| Accuracy |
±1ppm of the settings, 18°C to 28°C |
| Harmonic Distortion |
Typical (0dBm)
DC-10MHz (included): <-65dBc
10MHz-30MHz (included): <-55dBc
30MHz-60MHz (included): <-50dBc |
|
Total Harmonic
Distortion
|
<0.075% (10Hz-20kHz, 0dBm) |
Spurious
(non-harmonic) |
Typical (0dBm)
≤10MHz: <-70dBc
>10MHz: <-70dBc+6dB/octave |
| Phase Noise |
Typical (0dBm, 10kHz deviation)
10MHz: <-125dBc/Hz |
| Signal Characteristics |
| Rise/Fall Time |
Typical (1Vpp)
<10ns |
| Overshoot |
Typical (100KHz, 1Vpp)
≤5% |
| Duty Cycle |
0.01% to 99.99%
(limited by the current frequency setting) |
| Non-symmetry |
1% of period+5ns |
| Jitter (rms) |
Typical (1MHz, 1Vpp, 50O)
≤5MHz: 2ppm+200 ps
>5MHz: 200ps |
| Linearity |
≤51% of peak output
(typical, 1kHz, 1Vpp, 100% Symmetry) |
| Symmetry |
0% to 100% |
| Pulse Width |
16ns to 999.999 982 118ks
(limited by the current frequency setting) |
| Duty Cycle |
0.001% to 99.999%
(limited by the current frequency setting) |
Leading/Trailing
Edge Time |
≥10ns
(limited by the current frequency and pulse width settings) |
| Overshoot |
Typical (1Vpp)
≤5% |
| Jitter (rms) |
Typical (1Vpp)
≤5MHz: 2ppm+200ps
>5MHz: 200ps |
| Waveform Length |
8pts to 2Mpts (16Mpts optional)
8pts to 8Mpts (16Mpts optional) |
| Vertical Resolution |
14bits |
| Sample Rate |
200MSa/s |
Minimum Rise/Fall
Time |
Typical (1Vpp)
<10ns |
| Jitter (rms) |
|
| |
Typical (1Vpp)
≤5MHz: 2ppm+200ps
>5MHz: 200ps |
| Edit Method |
Edit Points, Edit Block, Insert Waveform |

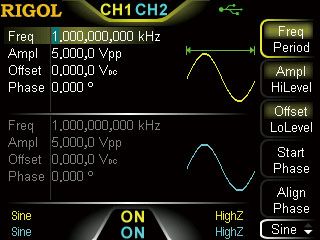

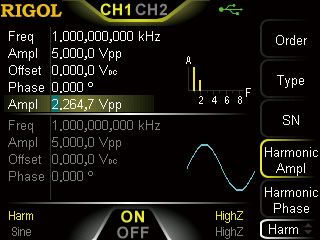

| Harmonic Order |
≤8 |
| Harmonic Type |
Even, Odd, All, User |
| Harmonic Amplitude |
can be set for all harmonics |
| Harmonic Phase |
can be set for all harmonics |
| Output Characteristics |
| Range |
≤10MHz: 1.0mVpp to 10Vpp
≤30MHz: 1.0mVpp to 5.0Vpp
≤60MHz: 1.0mVpp to 2.5Vpp |
| Accuracy |
Typical (1kHz Sine, 0V Offset, >10mVpp, Auto)
±1% of setting ± 1mV |
| Flatness |
Typical (Sine 2.5Vpp)
≤10MHz: ±0.1dB
≤60MHz: ±0.2dB |
| Units |
Vpp, Vrms, dBm |
| Resolution |
0.1mVpp or 4digits |
| Range (Peak ac+dc) |
±5Vpk ac+dc |
| Accuracy |
±(1% of setting+5mV+0.5% of amplitude) |
| Impedance |
50Ω (typical) |
| Protection |
Short-circuit protection, automatically disable waveform
output when overload occurs |

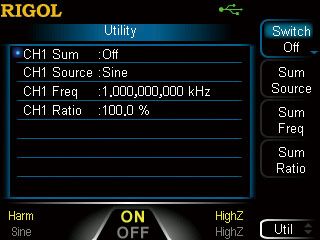

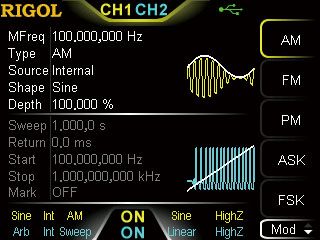

| Modulation Characteristics |
| Modulation Type |
AM, FM, PM, ASK, FSK, PSK, PWM |
| Carrier Waveform |
Sine, Square, Ramp, Arb (except DC) |
| Source |
Internal/External |
| Modulating Waveform |
Sine, Square, Ramp, Noise, Arb |
| Depth |
0% to 120% |
| Modulating Frequency |
2mHz to 1MHz |
| Carrier Waveform |
Sine, Square, Ramp, Arb (except DC) |
| Source |
Internal/External |
| Modulating Waveform |
Sine, Square, Ramp, Noise, Arb |
| Modulating Frequency |
2mHz to 1MHz |
| Carrier Waveform |
Sine, Square, Ramp, Arb (except DC) |
| Source |
Internal/External |
| Modulating Waveform |
Sine, Square, Ramp, Noise, Arb |
| Phase Deviation |
0° to 360° |
| Modulating Frequency |
2mHz to 1MHz |
| Carrier Waveform |
Sine, Square, Ramp, Arb (except DC) |
| Source |
Internal/External |
| Modulating Waveform |
Square with 50% duty cycle |
| Key Frequency |
2mHz to 1MHz |
| Carrier Waveform |
Sine, Square, Ramp, Arb (except DC) |
| Source |
Internal/External |
| Modulating Waveform |
Square with 50% duty cycle |
| Key Frequency |
2mHz to 1MHz |
| Carrier Waveform |
Sine, Square, Ramp, Arb (except DC) |
| Source |
Internal/External |
| Modulating Waveform |
Square with 50% duty cycle |
| Key Frequency |
2mHz to 1MHz |
| Carrier Waveform |
Pulse |
| Source |
Internal/External |
Modulating
Waveforms |
Sine, Square, Ramp, Noise, Arb |
| Width Deviation |
0% to 100% of Pulse Width |
| Modulating Frequency |
2mHz to 1MHz |
| Input Range |
75mVRMS to ±5Vac+dc |
| Input Bandwidth |
50kHz |
| Input Impedance |
10kΩ |

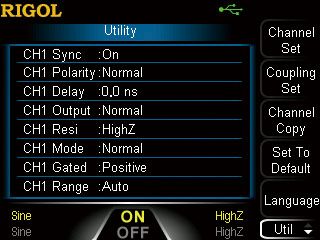

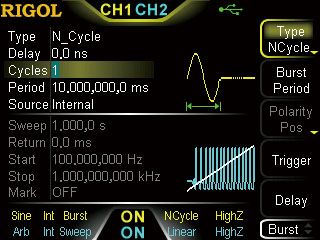

| Burst Characteristics |
| Carrier Waveform |
Sine, Square, Ramp, Pulse, Noise, Arb (except DC) |
| Carrier Frequency |
2mHz to 25MHz |
2mHz to 30MHz |
2mHz to 60MHz |
| Burst Count |
1 to 1,000,000 or Infinite |
| Start/Stop Phase |
0° to 360°, 0.1° resolution |
| Internal Period |
1µs to 500s |
| Gated Source |
External Trigger |
| Trigger Source |
Internal, External or Manual |
| Trigger Delay |
0ns to 100s |

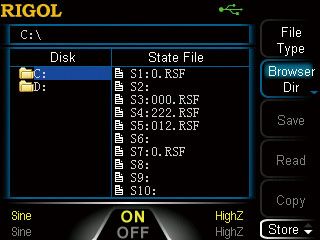

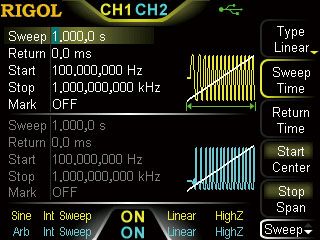

| Sweep Characteristics |
| Carrier Waveform |
Sine, Square, Ramp, Arb (except DC) |
| Type |
Linear, Log or Step |
| Direction |
Up/Down |
| Start/Stop Frequency |
Consistent with the upper/lower limit of the frequency of
the carrier waveform |
| Sweep Time |
1ms to 500s |
| Hold/Return Time |
0ms to 500s |
| Trigger Source |
Internal, External or Manual |
| Mark |
Falling edge of the Sync signal (programmable) |

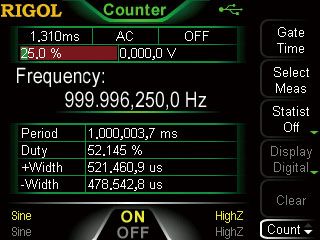

| Counter |
| Function |
Frequency, Period, Positive/Negative Pulse Width,
Duty Cycle |
| Frequency Resolution |
7 digits/second (Gate Time =1s) |
| Frequency Range |
1µHz to 200MHz |
| Period Measurement |
Measurement Range |
5ns to 16 days |
| DC Coupling |
DC Offset Range |
±1.5Vdc |
| 1µHz to 100MHz |
50mVRMS to ±2.5Vac+dc |
| 100MHz to 200MHz |
100mVRMS to ±2.5Vac+dc |
| AC Coupling |
1µHz to 100MHz |
50mVRMS to ±2.5Vpp |
| 100MHz to 200MHz |
100mVRMS to ±2.5Vpp |
Frequency/Amplitude
Range |
1µHz to 25MHz |
50mVRMS to
±2.5Vac+dc |
DC Coupling |
| Pulse Width |
Minimum |
≥20ns |
| Resolution |
5ns |
| Duty Cycle |
Range (Display) |
0% to 100% |
| Input Signal Range |
Breakdown Voltage |
±7Vac+dc |
Impedance=
1MΩ |
| Input Adjustment |
Coupling |
AC |
DC |
| HF Suppression |
ON: input bandwidth=250kHz;
OFF: input bandwidth=200MHz |
| Input Trigger |
Trigger Level Range |
-2.5V to +2.5V> |
Trigger Sensitivity
Range |
0% (about 140mV hysteresis
voltage) to 100% (about 2mV
hysteresis voltage) |
| Gate Time |
GateTime1 |
1.310ms |
| GateTime2 |
10.48ms |
| GateTime3 |
166.7ms |
| GateTime4 |
1.342s |
| GateTime5 |
10.73s |
| GateTime6 |
>10s |
| Trigger Characteristics |
| Level |
TTL-compatible |
| Slope |
Rising or falling (optional) |
| Pulse Width |
>100ns |
| Latency |
Sweep: <100ns (typical)
Burst: <300ns (typical) |
| Level |
TTL-compatible |
| Pulse Width |
>60ns (typical) |
| Maximum Frequency |
1MHz |
| Two-channel Characteristics - Phase Offset |
| Range |
0° to 360° |
Waveform Phase
Resolution |
0.03° |
| Clock Reference |
| Lock Range |
10MHz±50Hz |
| Level |
250mVpp to 5Vpp |
| Lock Time |
<2s |
| Impedance (typical) |
1kΩ , AC coupling |
| Frequency |
10MHz±50Hz |
| Level |
3.3Vpp |
| Impedance (typical) |
50Ω, AC coupling |
| Sync Output |
| Level |
TTL-compatible |
| Impedance |
50Ω, nominal value |
| Overvoltage Protection |
Overvoltage protection will take effect once any of the following two conditions is
met:
• The amplitude setting in the generator is greater than 2Vpp or the output
offset is greater than |2V DC |, the input voltage is greater than
±11.5×(1±5%)V (<10kHz).
• The amplitude setting in the generator is lower than or equal to 2Vpp or the
output offset is lower than or equal to |2V DC |, the input voltage is greater than
±3.5×(1±5%)V (<10kHz). |
| General Specifications |
| Power Voltage |
100V to 240V (45Hz to 440Hz) |
| Power Consumption |
Less than 40W |
| Fuse |
250V, T3.15A |
| Type |
3-inch TFT LCD |
| Resolution |
320 Horizontal×RGB×240 Vertical Resolution |
| Color |
16M color |
| Temperature Range |
Operating: 0ºC to 50ºC
Non-Operating: -40ºC to 70ºC |
| Cooling Method |
Cooling by fans compulsively |
| Humidity Range |
Less than 30ºC: ≤95% Relative Humidity (RH)
30ºC to 40ºC: ≤75% Relative Humidity (RH)
40ºCto 50ºC: ≤45% Relative Humidity (RH) |
| Altitude |
Operating: Less than 3000 meters
Non-Operating: Less than 15,000 meters |
Dimensions
(W×H×D) |
261.5mm×112mm×318.4mm |
| Weight |
without package: 3.2kg
with package: 4.5kg |

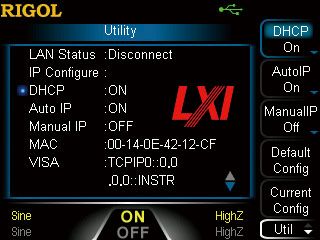

| Interfaces |
USB Host, USB Device, LAN |
| IP Protection |
IP2X |
Calibration
Interval |
Recommend calibration interval is one year |
