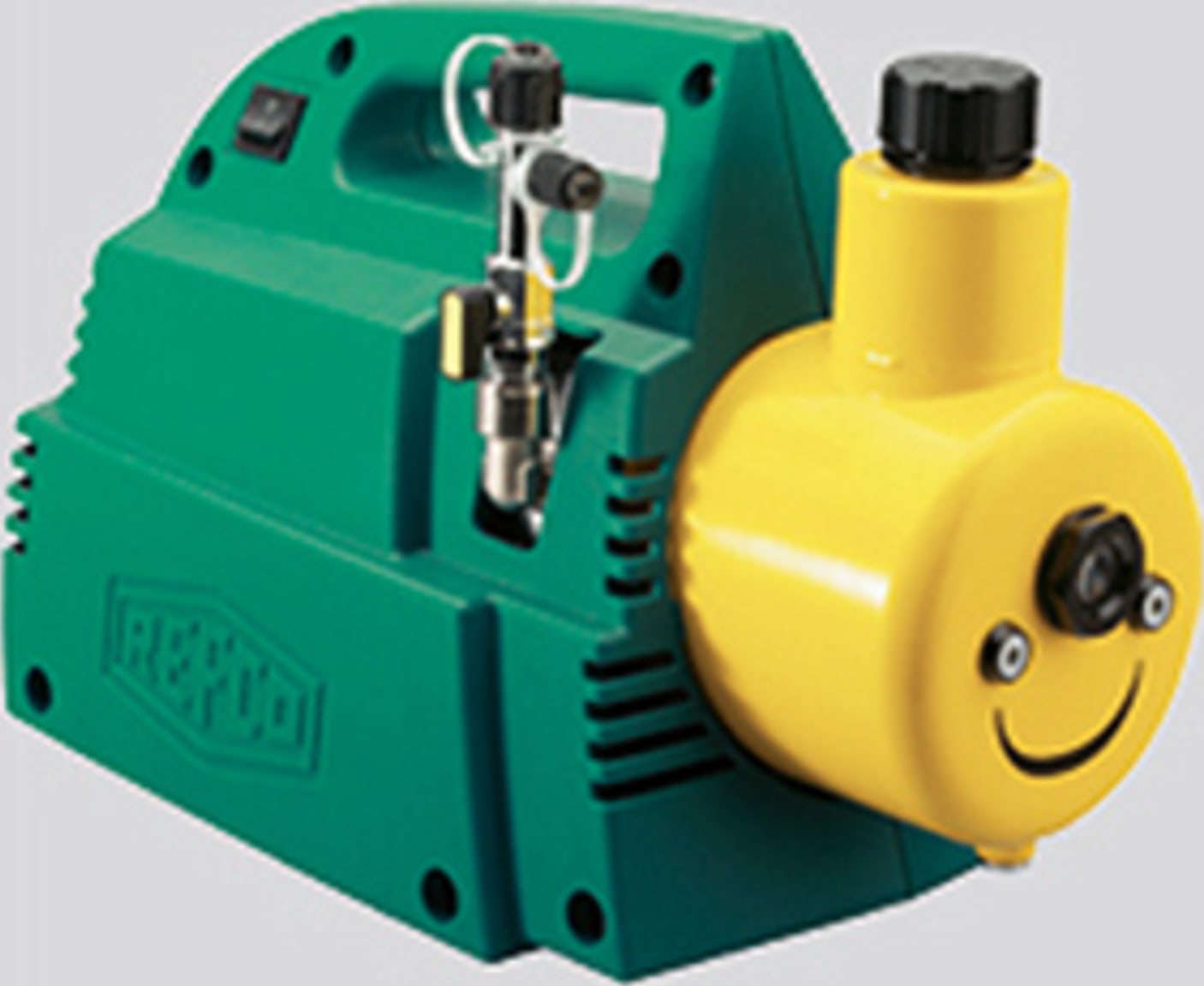

Refco RL-8 Two Stage, 6.4 CFM Vacuum Pump

Name: Refco RL-8 Two Stage, 6.4 CFM Vacuum Pump
Brand: Refco
SKU: RefcoRL-8
Price: 891.24 USD
Availability: InStock

0 reviews | Catalog: 4507356 | Model: Refco RL-8

Compare

6.4 cfm vacuum pump

Built specifically for the AC/R Industry
Latest technology allows extremely compact size
High-end materials result in low weight but top quality
Compact, practical, long lifetime
Sturdy ergonomic handle stays cool to the touch
Large, easily accessible oil fill port to prevent spillage when filling
Sight glass for easy viewing of the oil level
Two-stage rotary vane pump in state of the art design for greater efficiency
Easy to start, compact motor operates efficiently
Internal oil pump with unique device to prevent any oil back suction
Built-in on/off switch to prevent breakage or accidental shut off
Gas ballast valve feature to help keep the oil clean and to reduce water vapor in the oil compartment
Easily field replaceable one piece cartridge allows for rebuild without special tooling
Special designed oil exhaust filter to reduce oil mist
Quiet operation
Swiss Quality product manufactured under ISO 9001

View Product Details

Your Price: $891.24

In Stock:

View Payment Options

Request Quote

Items in This Series



Product	Refco RL-8 6.4 cfm vacuum pump	Refco RL-2 1.35 cfm vacuum pump
Price
In Stock
Number of Stages (Pumps)	2	2
Vacuum (Vacuum Pumps)	6.4 CFM	1.35 CFM
Line Power (Pumps)	110-120 VAC	110-120 VAC
Compare	Add to compare	Add to compare

Recommended for you

Refco RL-8 Two Stage, 6.4 CFM Vacuum Pump

The Refco RL series are rotary vane vacuum pumps. The pump is cooled internally by a mechanical impeller during operation, and a gas ballast value prevents the build-up of condensation inside the oil box and pump head. The motor is protected by a thermocouple which turns the pump off automatically if overheated.

RL-8 features and benefits

Large oil drain valve located at the front bottom of oil pan to allow for fast and easy oil change
Modern metal, rugged pump design with high-tech plastic housing to absorb shocks
Ergonomical design for even easier handling
Lower point of gravity for higher stability
Both 1/4" and 3/8" SAE inlet connections allow for flexibility of connections
Integrated blank off ball-valve to isolate pump from system
Includes DV-45 vacuum pump oil (1pt. / 500 ml)

Technical Data	RL-2	RL-8
Free air displacement:	1.35 cfm	6.4 cfm
Number of stages:	2	2
Microns:	15	15
Intake threads:	1/4" SAE Flare	1/4" and 3/8" SAE Flare with integrated ball valve
Motor:	1/5 horsepower, 2700 rpm	1/2 horsepower, 3300 rpm
Voltage:	115 Volt, 60 Hz	115 Volt, 60 Hz
Power cord length:	78"	78"
Oil capacity:	0.25 pt.	1 pt.
Recommended oil change:	Every 20 working hours	Every 20 working hours
Dimensions:	10.5 x 6.5 x 7.5 inch	14 x 8.6 x 9.8 inch
Weight:	8.3 lbs	26 lbs

HVAC Equipment and Instruments/HVAC Vacuum Pumps
Number of Stages (Pumps)	2
Vacuum (Vacuum Pumps)	6.4 CFM
Line Power (Pumps)	110-120 VAC
Test Equipment General Attributes
Product Weight	26 LBS
Product Height	9.8 IN
Product Length	14 IN
Product Width	8.6 IN
Power Supply Voltage	120V 50/60 Hz
