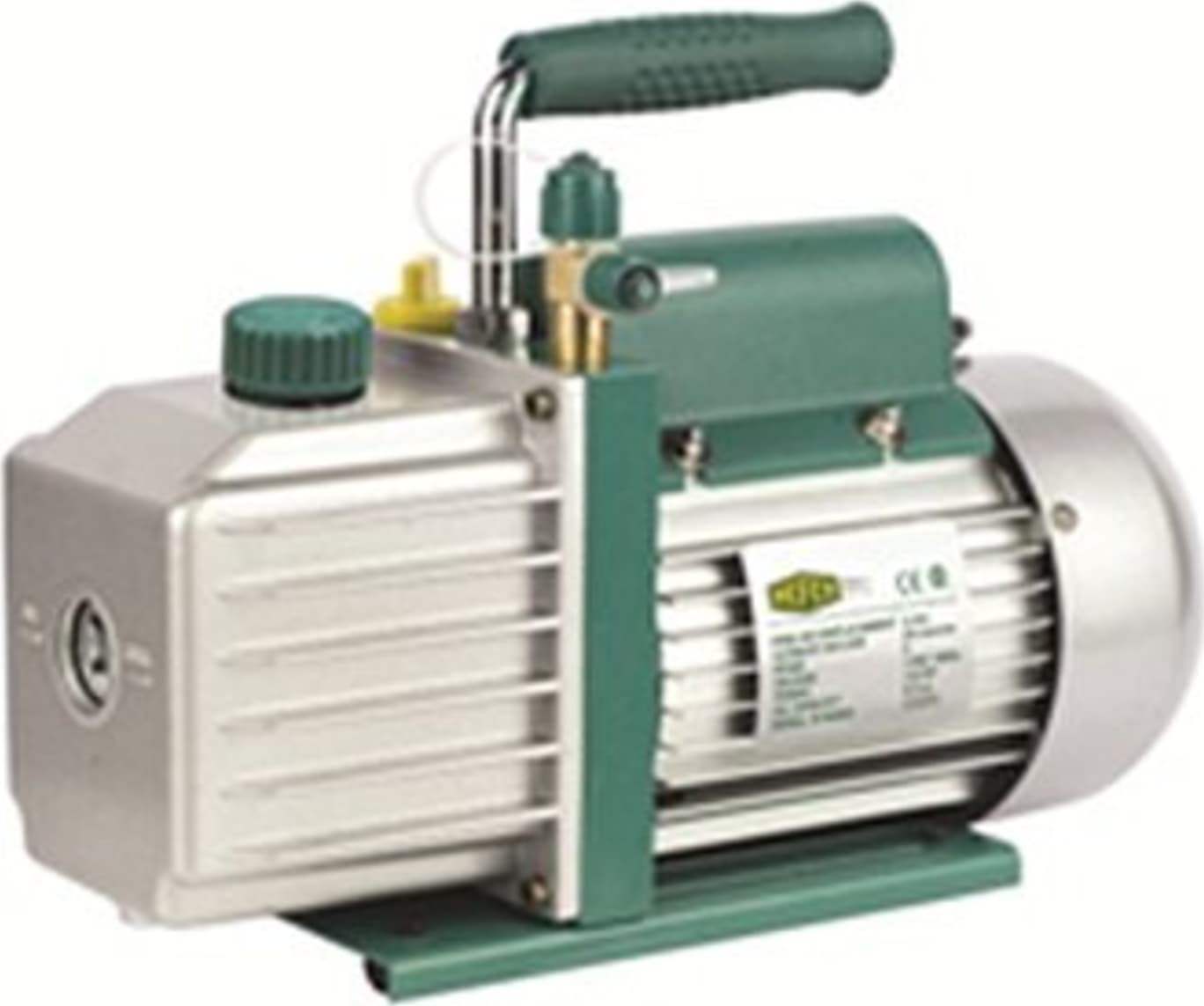

Refco ECO-5-DV Two Stage, Dual Voltage 5.0 CFM Vacuum Pump

Name: Refco ECO-5-DV Two Stage, Dual Voltage 5.0 CFM Vacuum Pump
Brand: Refco
SKU: RefcoECO-5-DV
Price: 226.79 USD
Availability: InStock

0 reviews | Catalog: 4682692 | Model: Refco ECO-5-DV

Compare

Vacuum pump dual-voltage

Designed specifically for HVAC/R Service
Two stage rotary vane pump design
Compact design with aluminum housing and easy to grip carrying handle
Very quiet operation
High pumping capacity reduces evacuation time
Carrying handle stays cool to the touch
Easy to start
Both 1/4" and 3/8" SAE flare inlet connections allow for flexibility of connections
Vacuum pump oil included
Value priced but still manufactured to the highest quality and performance specifications

View Product Details

List Price: $226.79

In Stock:

View Payment Options

Recommended for you

Refco ECO-5-DV Two Stage, Dual Voltage 5.0 CFM Vacuum Pump

Refco ECO series vacuum pumps feature a two stage, rotary vane pump design, with high pumping capacities to reduce evacuation time. ECO series pumps have a compact aluminum housing, and easy to grip handle, which stays cool to the touch. 1/4" and 3/8" SAE flare inlet connections are provided, offering greater flexibility for connectors.

The Refco ECO series are value priced, but manufactured to the highest quality and performance specifications.

Technical Data	ECO-5	ECO-5-DV	ECO-9
Free air displacement:	5.0 cfm	5.0 cfm	9.0 cfm
Number of stages:	2	2	2
Microns:	15	15	15
Intake threads:	1/4" and 3/8" SAE Flare	1/4" and 3/8" SAE Flare	1/4" and 3/8" SAE Flare
Motor:	1/2 horsepower	1/2 horsepower	1 horsepower
Voltage:	115 Volt, 60 Hz	115/230 Volt, 60 Hz	115 Volt, 60 Hz
Power cord length:	78"	78"	78"
Oil capacity:	9.5 oz / 0.6 pt.	9.5 oz / 0.6 pt.	20 oz / 1.25 pt.
Dimensions:	14 x 5 x 10 inch	14 x 5 x 10 inch	16 x 6 x 11 inch
Weight:	24 lbs	28 lbs	37 lbs

HVAC Equipment and Instruments/HVAC Vacuum Pumps
Number of Stages (Pumps)	2
Vacuum (Vacuum Pumps)	5 CFM
Line Power (Pumps)	110/220 VAC
Test Equipment General Attributes
Power Supply Voltage	120V/220V Universal
