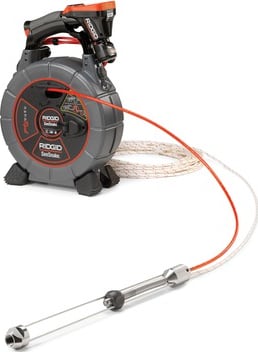

• RIDGID CrossChek Rig with SeeSnake NanoReel Inspection System and CS12X Monitor
• Designed for bore slots 1.75in to 3in wide
• Integrates into your current boring process
• Works in most soil types – wet clay, dry sand, and more
• Digital video documentation of each inspection

The RIDGID CROSSCHEK Inspection System is designed for use with the SeeSnake MicroDrain, NanoReel, MicroReel and rM200 Inspection System. It is used to inspect the straight bores produced by pneumatic underground piercing/boring tools. The CROSSCHEK Inspection System mounts to the camera head and pushrod. Once a bore is completed, the air hose is attached to the CROSSCHEK Inspection System and used to pull the camera head through the bore for inspection. Once the inspection is completed, a rope is used to retrieve the unit from the bore and pull the utility to be installed into place.

NanoReel Inspection System Features:

• Lightweight and compact design, easily stowed in a truck, carried onto the jobsite
• Compatible with existing SeeSnake monitors, or the micro CA-350 digital inspection camera
• Designed for long run, small diameter inspection needs
• Ideal for inspections in boiler tubes, supply lines, pools, sprinkler systems, and more
• Removable drum can be swapped with MicroReel/MicroDrain drums
• o L100/L100C – 1.5in to 5in (40-125mm) lines; stiff push cable; 100ft length
• o D30/D65S – 1.5in to 4in (40-100mm) lines; small diameter for tight turns - P-traps, toilet traps; 65ft length
• o N85S – 1in to 2in (25-50mm) lines; ultra-small diameter – tight turns for specialized applications
• Pipe guides included for better in-pipe imaging

SeeSnake CS12X Monitor

The RIDGID SeeSnake CS12x Wi-Fi-enabled reporting monitor is an all-in-one solution for capturing media and delivering inspection results to your customers, all directly from the job site. Built for speed and efficiency, the CS12x captures images and video directly a USB drive. Connect a large capacity drive in the storage pocket to ensure you never run out of space. Professional multimedia reports are automatically created while you work, increasing your productivity and helping you move on to the next job. The CS12x is compatible with all SeeSnake camera reels and can dock onto the SeeSnake Max rM200 for easy transport. The system can be powered by up to two batteries or with the AC adapter and features a high resolution 12.1in daylight viewable display.
