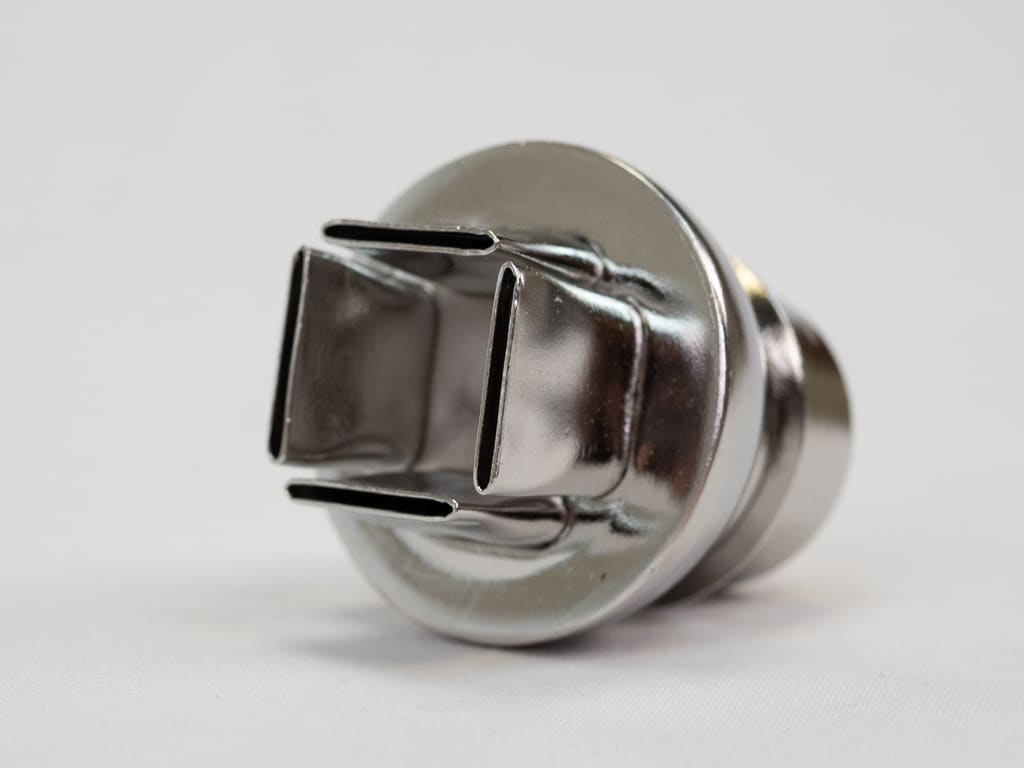

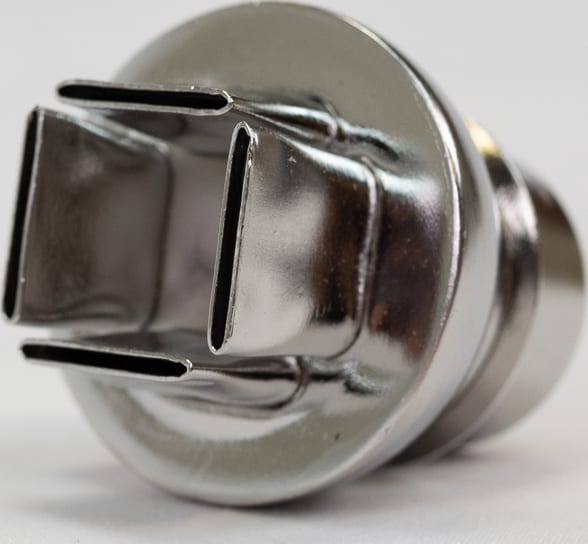

Quick NK3126 - QFP, 14 x 14mm, (0.55 x 0.55)

Quick manufactures many styles of nozzle for use with the 861DW, 856AX, 856AE, 855PX, 712A and 713A. The following is an overview of each, broken out by style and sorted numerically by part number.

Single Nozzle

• NK1124 - Single, 2.5mm, 0.09 inch
• NK1120 - Single, 4mm, 0.16 inch
• NK1130 - Single, 4.4mm, 0.17 inch
• NK2064 - Single, 6.4mm, 0.25 inch
• NK2084 - Single, 8.4mm, 0.33 inch
• NK2127 - Single, 12.7mm, 0.5 inch

SOP,SOJ

• NK3131 - SOP, 4.4
• NK3132 - SOP, 5.6
• NK3133 - SOP, 7.5
• NK3134 - SOP, 7.5
• NK3183 - SOJ, 15 x 8mm, (0.59 x 0.31)
• NK3184 - SOJ, 18 x 8mm, (0.71 x 0.31)
• NK3185 - TSOJ, 13 x 10mm, (0.51 x 0.39)
• NK3186 - TSOJ, 18 x 10mm, (0.71 x 0.39)
• NK3187 - TSOJ, 18.5 x 8mm, (0.73 x 0.31)
• NK3191 - SIP 25L (0.98)
• NK3192 - SIP 50L (1.97)
• NK3214 - SOJ, 10 x 26mm, (0.39 x 1.02)
• NK3257 - SOP, 11 x 21mm, (0.43 x 0.83)
• NK3258 - SOP, 7.6 x 12.7mm, (0.3 x 0.5)
• NK3259 - SOP, 13 x 28mm, (0.51 x 1.1)
• NK3260 - SOP, 8.6 x 18mm, (0.34 x 0.71)

QFP

• NK3125 - QFP, 10 x 10mm, (0.39 x 0.39)
• NK3126 - QFP, 14 x 14mm, (0.55 x 0.55)
• NK3127 - QFP, 17.5 x 17.5mm, (0.68 x 0.68)
• NK3128 - QFP, 14 x 20mm, (0.55 x 0.78)
• NK3129 - QFP, 28 x 28mm, (1.1 x 1.1)
• NK3180 - BQFP, 17 x 17mm, (0.67 x 0.67)
• NK3181 - BQFP, 19 x 19mm, (0.75 x 0.75)
• NK3182 - BQFP, 24 x 24mm, (0.94 x 0.94)
• NK3203 - QFP, 35 x 35mm (1.38 x 1.38)
• NK3215 - QFP, 42.5 x 42.5mm (1.67 x 1.67)
• NK3261 - QFP, 20 x 20mm, (0.78 x 0.78)
• NK3262 - QFP, 12 x 12mm (0.47 x 0.47)
• NK3263 - QFP, 28 x 40mm, (1.1 x 1.57)
• NK3264 - QFP, 40 x 40mm, (1.57 x 1.57)
• NK3265 - QFP, 32 x 32mm, (1.26 x 1.26)

PLCC

• NK3135 - PLCC, 17.5 x 17.5mm, (0.68 x 0.68), 44 pins
• NK3136 - PLCC, 20 x 20mm, (0.78 x 0.78), 52 pins
• NK3137 - PLCC, 25 x 25mm, (0.98 x 0.98), 68 pins
• NK3138 - PLCC, 30 x 30mm, (1.18 x 1.18), 84 pins
• NK3139 - PLCC, 12.5 x 7.3mm, (0.49 x 0.29), 84 pins
• NK3140 - PLCC, 11.5 x 11.5mm, (0.45 x 0.45), 28 pins
• NK3141 - PLCC, 11.5 x 14mm, (0.45 x 0.55), 32 pins
• NK3188 - PLCC, 9 x 9mm, (0.35 x 0.35), 20 pins
• NK3189 - PLCC, 34 x 34mm, (1.34 x 1.34), 100 pins

BGA

• NK2280 - BGA, 24 x 24mm, (0.94 x 0.94)
• NK2281 - BGA, 26 x 26mm, (1.02 x 1.02)
• NK2282 - BGA, 31 x 31mm, (1.22 x 1.22)
• NK2283 - BGA, 38 x 38mm, (1.5 x 1.5)
• NK2284 - BGA, 41 x 41mm, (1.6 x 1.6)
• NK2285 - BGA, 44 x 44mm, (1.7 x 1.7)
• NK2286 - BGA, 15 x 15mm, (0.6 x 0.6)
