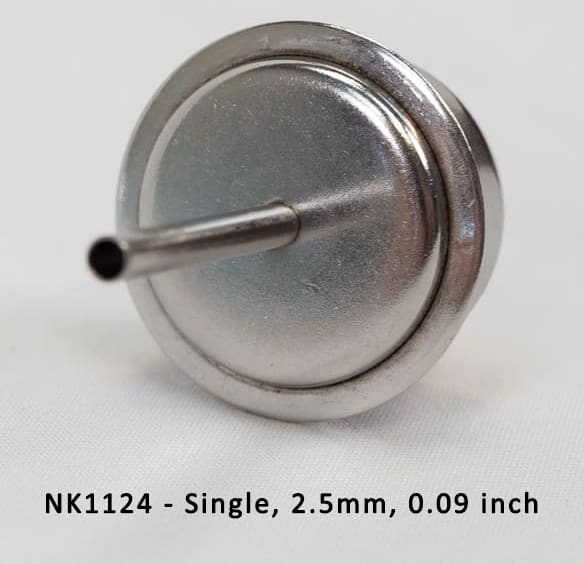

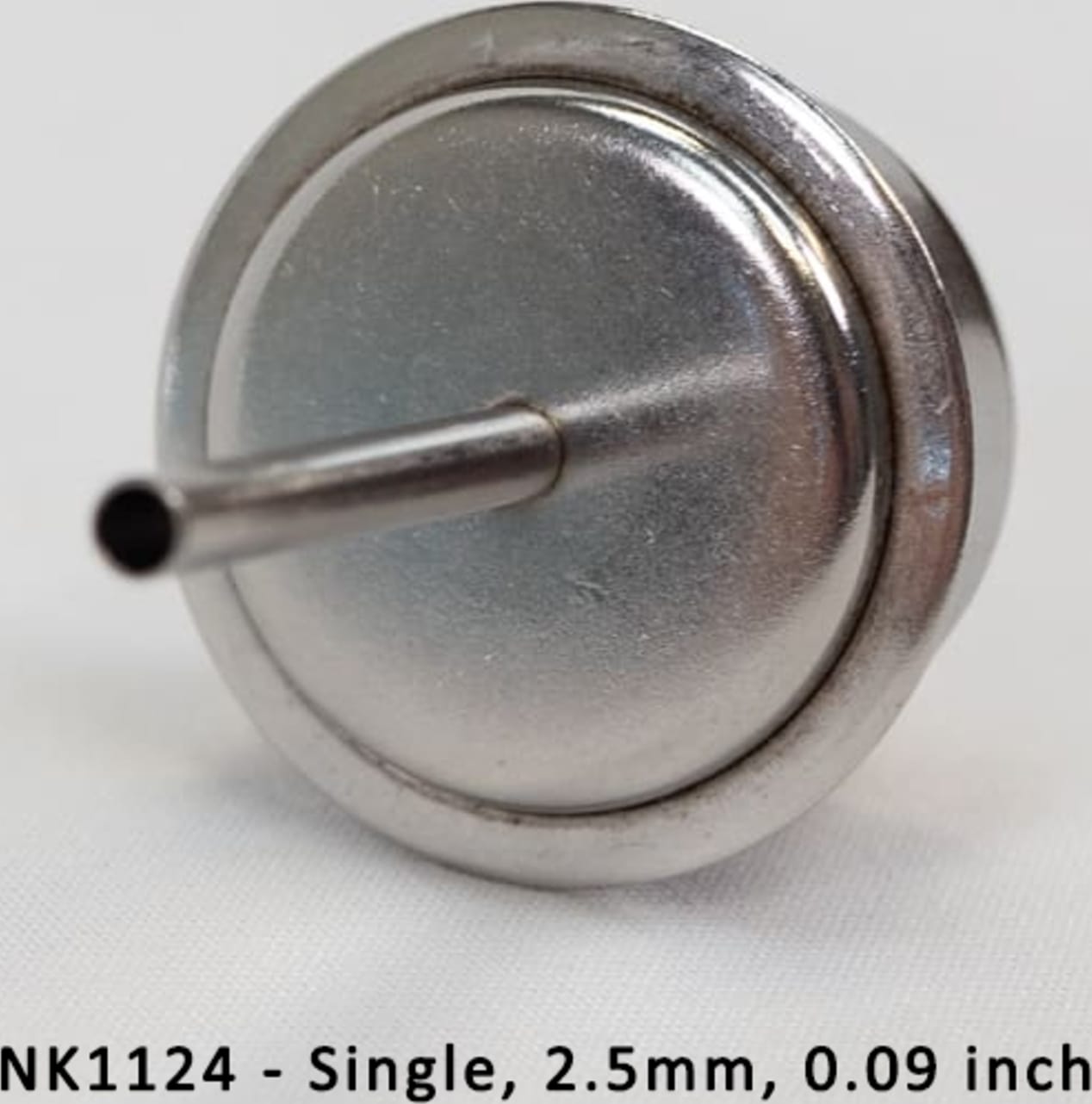

Quick NK1124 - Single, 2.5mm, 0.09 Inch

Quick manufactures many styles of nozzle for use with the 861DW, 856AX, 856AE, 855PX, 712A and 713A. The following is an overview of each, broken out by style and sorted numerically by part number.

Single Nozzle

• NK1124 - Single, 2.5mm, 0.09 inch
• NK1120 - Single, 4mm, 0.16 inch
• NK1130 - Single, 4.4mm, 0.17 inch
• NK2064 - Single, 6.4mm, 0.25 inch
• NK2084 - Single, 8.4mm, 0.33 inch
• NK2127 - Single, 12.7mm, 0.5 inch

SOP,SOJ

• NK3131 - SOP, 4.4
• NK3132 - SOP, 5.6
• NK3133 - SOP, 7.5
• NK3134 - SOP, 7.5
• NK3183 - SOJ, 15 x 8mm, (0.59 x 0.31)
• NK3184 - SOJ, 18 x 8mm, (0.71 x 0.31)
• NK3185 - TSOJ, 13 x 10mm, (0.51 x 0.39)
• NK3186 - TSOJ, 18 x 10mm, (0.71 x 0.39)
• NK3187 - TSOJ, 18.5 x 8mm, (0.73 x 0.31)
• NK3191 - SIP 25L (0.98)
• NK3192 - SIP 50L (1.97)
• NK3214 - SOJ, 10 x 26mm, (0.39 x 1.02)
• NK3257 - SOP, 11 x 21mm, (0.43 x 0.83)
• NK3258 - SOP, 7.6 x 12.7mm, (0.3 x 0.5)
• NK3259 - SOP, 13 x 28mm, (0.51 x 1.1)
• NK3260 - SOP, 8.6 x 18mm, (0.34 x 0.71)

QFP

• NK3125 - QFP, 10 x 10mm, (0.39 x 0.39)
• NK3126 - QFP, 14 x 14mm, (0.55 x 0.55)
• NK3127 - QFP, 17.5 x 17.5mm, (0.68 x 0.68)
• NK3128 - QFP, 14 x 20mm, (0.55 x 0.78)
• NK3129 - QFP, 28 x 28mm, (1.1 x 1.1)
• NK3180 - BQFP, 17 x 17mm, (0.67 x 0.67)
• NK3181 - BQFP, 19 x 19mm, (0.75 x 0.75)
• NK3182 - BQFP, 24 x 24mm, (0.94 x 0.94)
• NK3203 - QFP, 35 x 35mm (1.38 x 1.38)
• NK3215 - QFP, 42.5 x 42.5mm (1.67 x 1.67)
• NK3261 - QFP, 20 x 20mm, (0.78 x 0.78)
• NK3262 - QFP, 12 x 12mm (0.47 x 0.47)
• NK3263 - QFP, 28 x 40mm, (1.1 x 1.57)
• NK3264 - QFP, 40 x 40mm, (1.57 x 1.57)
• NK3265 - QFP, 32 x 32mm, (1.26 x 1.26)

PLCC

• NK3135 - PLCC, 17.5 x 17.5mm, (0.68 x 0.68), 44 pins
• NK3136 - PLCC, 20 x 20mm, (0.78 x 0.78), 52 pins
• NK3137 - PLCC, 25 x 25mm, (0.98 x 0.98), 68 pins
• NK3138 - PLCC, 30 x 30mm, (1.18 x 1.18), 84 pins
• NK3139 - PLCC, 12.5 x 7.3mm, (0.49 x 0.29), 84 pins
• NK3140 - PLCC, 11.5 x 11.5mm, (0.45 x 0.45), 28 pins
• NK3141 - PLCC, 11.5 x 14mm, (0.45 x 0.55), 32 pins
• NK3188 - PLCC, 9 x 9mm, (0.35 x 0.35), 20 pins
• NK3189 - PLCC, 34 x 34mm, (1.34 x 1.34), 100 pins

BGA

• NK2280 - BGA, 24 x 24mm, (0.94 x 0.94)
• NK2281 - BGA, 26 x 26mm, (1.02 x 1.02)
• NK2282 - BGA, 31 x 31mm, (1.22 x 1.22)
• NK2283 - BGA, 38 x 38mm, (1.5 x 1.5)
• NK2284 - BGA, 41 x 41mm, (1.6 x 1.6)
• NK2285 - BGA, 44 x 44mm, (1.7 x 1.7)
• NK2286 - BGA, 15 x 15mm, (0.6 x 0.6)
