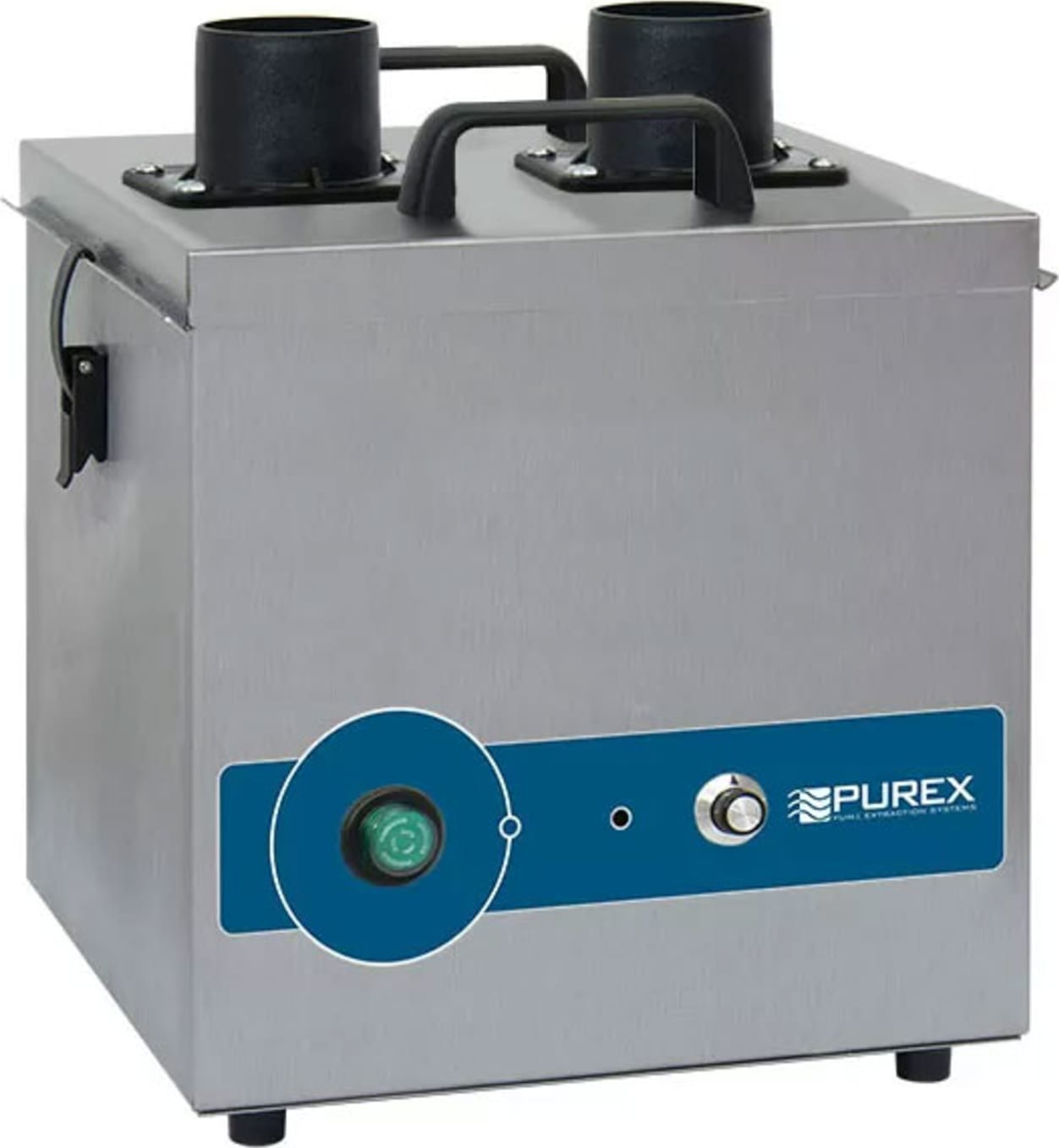

Purex Fumecube Dual Arm Hood

Purex’s analogue units are an economical choice with same quality build and functionality; less digital displays. All units come equipped with filter blocked warning capabilities; both visual and audible which helps avoid down time. This unit comes standard with a HEPA/Chemical main filter and pre-filter pad.

Purex Fume Cube Dual Arm Components

Control System

To switch the machine ON/OFF

Press button (1) which will illuminate green when ON.

Speed Control

To increase the vacuum, turn the speed control knob (2) clockwise. Turning the speed control knob anti-clockwise reduces the vacuum. There may be a slight delay as the speed control system raises or lowers the motor speed to match the required vacuum set by the user. The lowest vacuum level possible should be used so that the fume produced by the process is just drawn into the capture nozzle. Please note that setting the vacuum level unnecessarily high will reduce filter life.

Fully Automatic Flow Control

The vacuum is the only parameter that needs to be set by the operator. The Purex machine will automatically maintain the vacuum level you have set without any further intervention required.
