• Thermal resolution: 384x288 pix. @ 17 µm

• Objective lens: F35/1.0
• Magnification: 2 - 8x (x4 zoom)
• Field of view (HxV), degrees / m@100m: 10.7х8 / 18.2
• Detection range: 1300 range

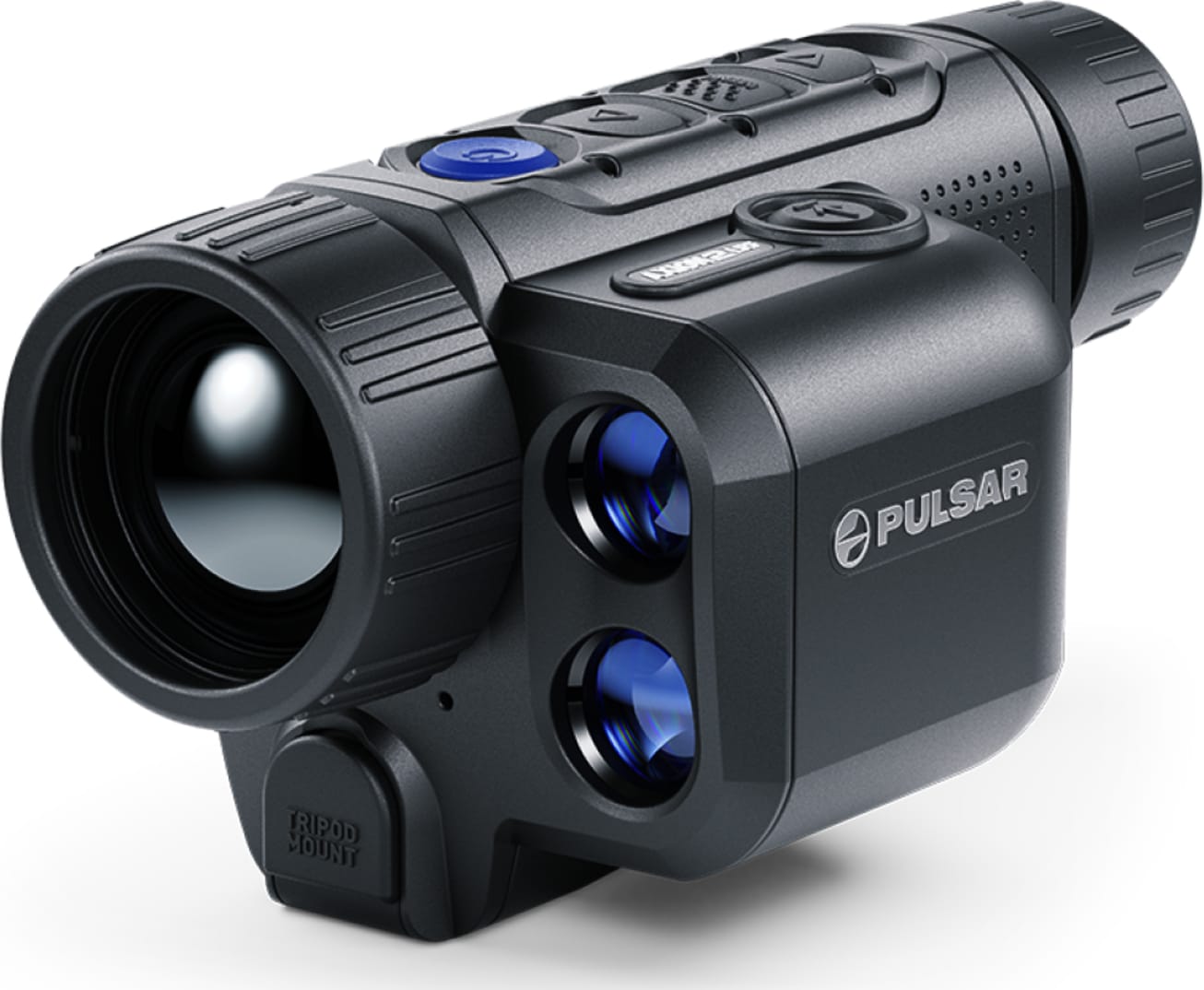

Pulsar’s pocket-sized thermal monocular family - the Axions - have another member - the Axion 2 LRF XQ35! With a powerful 384x288 microbolometer that detects heat signatures over 1400 yards away, this is an excellent device for scoping large areas and locating prey. With an included 1100-yard laser rangefinder, this device gives shooters an accurate approximation of their target’s distance. It then transmits these images and information to a pristine 640x400 AMOLED display, giving the user clear, crisp image of their target.

Long-distance laser rangefinder

Understanding the target distance is an essential factor in making the right decisions. A built-in laser rangefinder with a range of up to 1 kilometer allows you to measure distances in single measurements and continuous scanning modes with an accuracy of ± 1 meters for quick and error-free assessment of the situation.

Pulsar Warranty

Pulsar guarantees products are free from defects in materials and workmanship for a period of three years from the date of purchase. The warranty period for rechargeable batteries (supplied with the device or bought separately) is one year.

Axion is designed for constant, often hard use. A magnesium alloy housing is light and strong at the same time. The housing reliably protects the internal components of a thermal imaging device from shocks, drops, moisture, heat, or cold. At the same time, a metal housing effectively removes the heat from electronics, minimizes image noise, and increases the consistency of the device operation during long-term observation.

The Axion 2 XQ35 is equipped with a European Lynred sensor with a resolution of 384x288 pixels (pixel size 17 microns), which qualitatively captures a useful signal under difficult observation conditions, such as rain, fog, and high atmospheric humidity at the observation site.

Germanium F35/1.0 lens features high infrared transmission in the LWIR range. Due to the high precision manufacturing of the optical elements of the lens, the image generated by the Axion 2 XQ thermal imaging device sensor is distinguished for its clarity and detailing.

A high-capacity APS5 rechargeable battery provides up to 11 hours of continuous operation of the thermal imaging device on a single charge. The battery is removed from a battery housing and replaced with a new one in seconds. The battery is charged in a special charger or inside the device from a PC, household power system, or power bank via USB-C. The same sources are used for the external power supply of a thermal imaging device.

In Axion 2 XQ thermal imagers, the standard smartphone connection frequency range via a 2.4 GHz WiFi channel is complemented with an effective 5 GHz range. The 5 GHz connection offers better bandwidth, a faster data transfer rate, noise immunity, and improved connection stability, resulting in more productive and easier operation of the thermal imager with a smartphone.

1300 m detection range

A powerful F35/1.0 objective lens combined with a 384x288@17µm highly-sensitive thermal imaging sensor provides exceptional detection capabilities. A standard 1.8m tall object can be detected up to 1300 m away in complete darkness.

Variable magnification from 2x to 8x

Digital zoom, up to 4x, provides improved focus and better overall object recognition at significant distances. The zoom changes either gradually in 2x step or continuously for a truly optimum, customized field of view for the specific situation.

Fast start-up

The Axion 2 XQ features a short turn-on time: the device is fully functional within 5 seconds after pressing the ON button. Quick start-up helps save battery power: when hunting, the Axion 2 XQ doesn't need to be kept ready at all times, simply turn it on when needed.

IPX7 Fully Waterproof

IPX7 waterproof-rated for protection from heavy rainfall, snow, or other precipitation. The unit is designed to run flawlessly, even after submersion in up to 1 meter of water for up to 30 minutes.

Built-in photo and video recorder. Free 16 GB cloud space

The Axion 2 XQ has a built-in video recorder. The internal memory of the Axion 2 XQ can store hours of video and tens of thousands of photos. One touch of a button is enough to take a photo of an interesting scene or start recording a video. The footage is copied to a computer hard drive via a USB-C port. The Axion 2 XQ owner has a free 16 GB disk space for storing photos and videos captured with the device in the Pulsar cloud storage. Simply install the Stream Vision 2 mobile application, log in and connect the device with a smartphone via WiFi.

High-contrast AMOLED Display

A high-contrast VGA-resolution AMOLED display has an improved color rendering, power-saving, and quick-response, providing sharp and smooth images observing even under frosty conditions.

Distant operation and firmware update from a smartphone via Stream Vision 2 App

Built-in WiFi connects the Axion 2 XQ to Android and iOS smartphones via the Stream Vision 2 mobile application. This opens up a wide range of options including wireless device software updates, real-time image transmission from the device to the smartphone screen, publication on social media of photo and video content captured by the device or transfer to messengers, remote control of digital device functions, and access to the latest news from Pulsar. Moreover, registered users receive 16 GB of cloud storage for photos and videos recorded with the device.

A selection of 8 color palettes

A choice of 8 color palettes lets the user observe their field of view more effectively, allowing them to optimize the unit for specific tasks as well as react to changing observation conditions. White Hot, Black Hot, and Red Hot are optimal for object detection, Rainbow and Ultramarine help increase chances for recognition & identification. Red Monochrome, Sepia, and Violet are most suitable for long observation at night.
