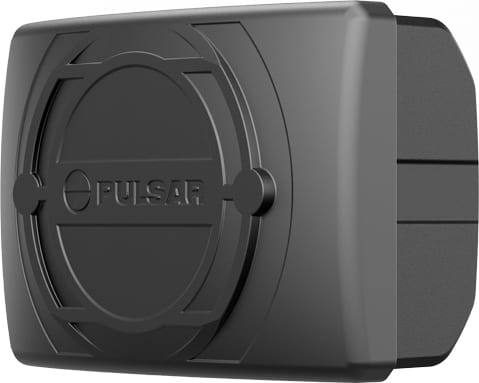

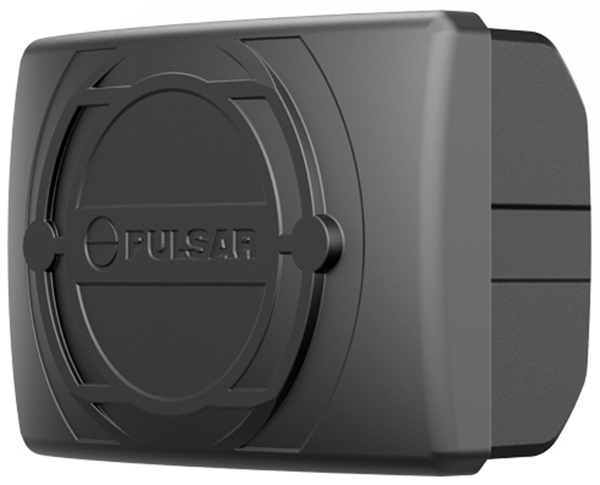

Rechargeable batteries Battery Pack IPS5/IPS10 are designed to significantly extend self-contained operating time of the digital and thermal devices Pulsar (thermal imagers Helion, thermal sights Trail, digital riflescopes Digisight Ultra etc.).


• Lift the lever (C) of the charger.
• Remove the protective cover from the Battery Pack.

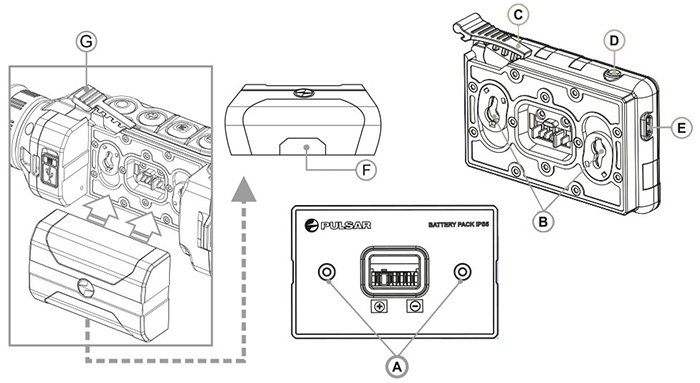

• Install the Battery Pack into the charger by inserting the pins (A) of the battery into the grooves (B) of the charger – the Pulsar logo on the battery Pack should be located closer to the lever; click the lever (C)(see Pic.).
• Upon installation, a green LED indicator (D) on the charger will start to glow and begin flashing:
  • once if the battery charge ranges from 0% to 50%;
  • twice if the battery charge ranges from 51% to 75%;
  • three times if the battery charge ranges from 75% to 100%;
• If the indicator glows green continuously, the battery is fully charged.
• You can remove the battery from the charger by lifting the lever (С).
• If the indicator of the charger lights red continuously upon battery installation, probably the battery's charge level is lower than acceptable (the battery has been long in deep discharge). Keep the battery in the charger for a long time (up to several hours), remove and re-insert it. If the indicator starts blinking green, the battery is good; if it keeps lighting red it's defective. Do not use the battery!
• Connect the Micro-USB plug of the USB cable to the port (E) of the charger.
• Connect the Micro-USB plug to the charger.
• Insert the plug of the charger (not included) to the 220V socket.

• Remove the protective cover from the Battery Pack.
• Lift the lever (G).
• Install the battery into the dedicated slot on the device housing so that element F (see Pic.) appears from below.
• Fix the battery by clicking the lever
