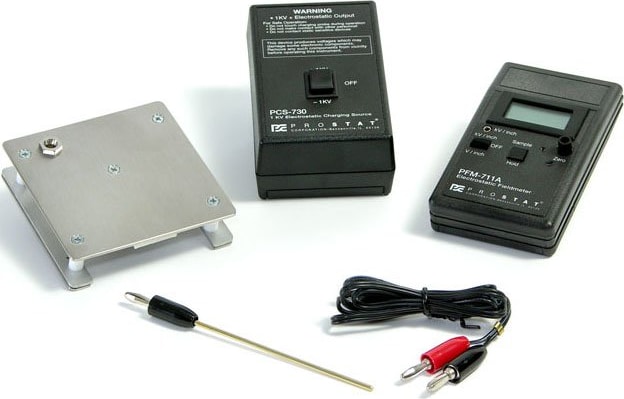

PFM-711A FIELD METER |
Meter Display |
3-1/2 digit Liquid Crystal Display with 0.4" digit height. Automatic polarity, HOLD and LOW BATTERY indicators. |
Output |
Analog signal output and 30 inch two conductor cable provided. ± 10.0KV meter reading equals ± 1.0 volts output. |
Range |
High Range 0 V to ± 19.99 KV; least significant digit indicates tens of volts at one inch distance.
Low Range 0 V to ± 1,999 V; least significant digit indicates 1 volt at one inch distance.
Measures higher voltages at greater distances, e.g., at two inches double indicated voltage, at four inches multiply indicated voltage by four. |
Range Lights |
Red "Bulls Eye" at one inch distance |
Accuracy & Environment |
± 2% at ambient conditions ( 23ºC and 30% Rh).
± 5% at 0 - 50ºC and 0 - 85% Rh (non-condensing).
Accuracy unaffected by the presence of air ionization. |
Response |
Digital display updates three (3) times per second.
Analog Output Time Constant: Either Range 0.1 sec.
Display Time Constants: High Range 0.2 sec; Low Range 2.0 sec |
Controls |
Three position slide switch: KV/INCH - OFF - V/INCH
Sample/HOLD push button, and ZERO adjust knob. |
Grounding |
Meter circuit grounded through the conductive case and 10 mm snap fastener mounted on back of case. |
Power |
9 VDC alkaline battery. Battery life minimum 40 hours. |
Dimensions |
2.4" wide x 4.2" long x .9" deep (1.3" deep with zero knob and snap fastener). |
Weight |
5 ounces, with battery |
PCS-730 CHARGING SOURCE |
Input Power |
9 Volt Alkaline Battery. Battery life in excess of 40 hours continuous operation. |
Output |
± 1,000 volts DC Minimum, Current limited to less than 1 Microamp. |
Output Connector |
Female banana jack provided with mating contact rod. |
Grounding |
10mm female snap fastener on rear of case. Note that wand must be installed and unit grounded for proper operation. |
Dimensions (W x L x D) |
2.5"W x 4"L (4.2"L with jack) x 1.5"D (1.8"D with switch and snap) |
Weight |
6 oz (with battery) |
CPM-720A CHARGE PLATE ASSEMBLY |
Isolated Plate |
Stainless Steel parallel plates, 3.25 inches square. Auxiliary female jack installed. |
Capacitance |
Plate Capacitance 10 picofarads (pF) ± 1 pF
Note:Plate capacitance is 15.8 pF when mounted to PFM-711A Filed Meter |
Range |
0 to ± 6 KV at a plate separation of 0.60 inch. |
Accuracy |
± 2% at 1,000 volts. Calibration adjustment screw provided. |
Grounding |
Through conductive case and snap fastener of Model PFM-711A. |
Size |
3.25"W x 3.25"L x .9"D (1.0"D with jack). |
Weight |
8 oz (227g) |
