Perform ESD Audits to ANSI/ESD S20.20 and IEC 61340-5-1

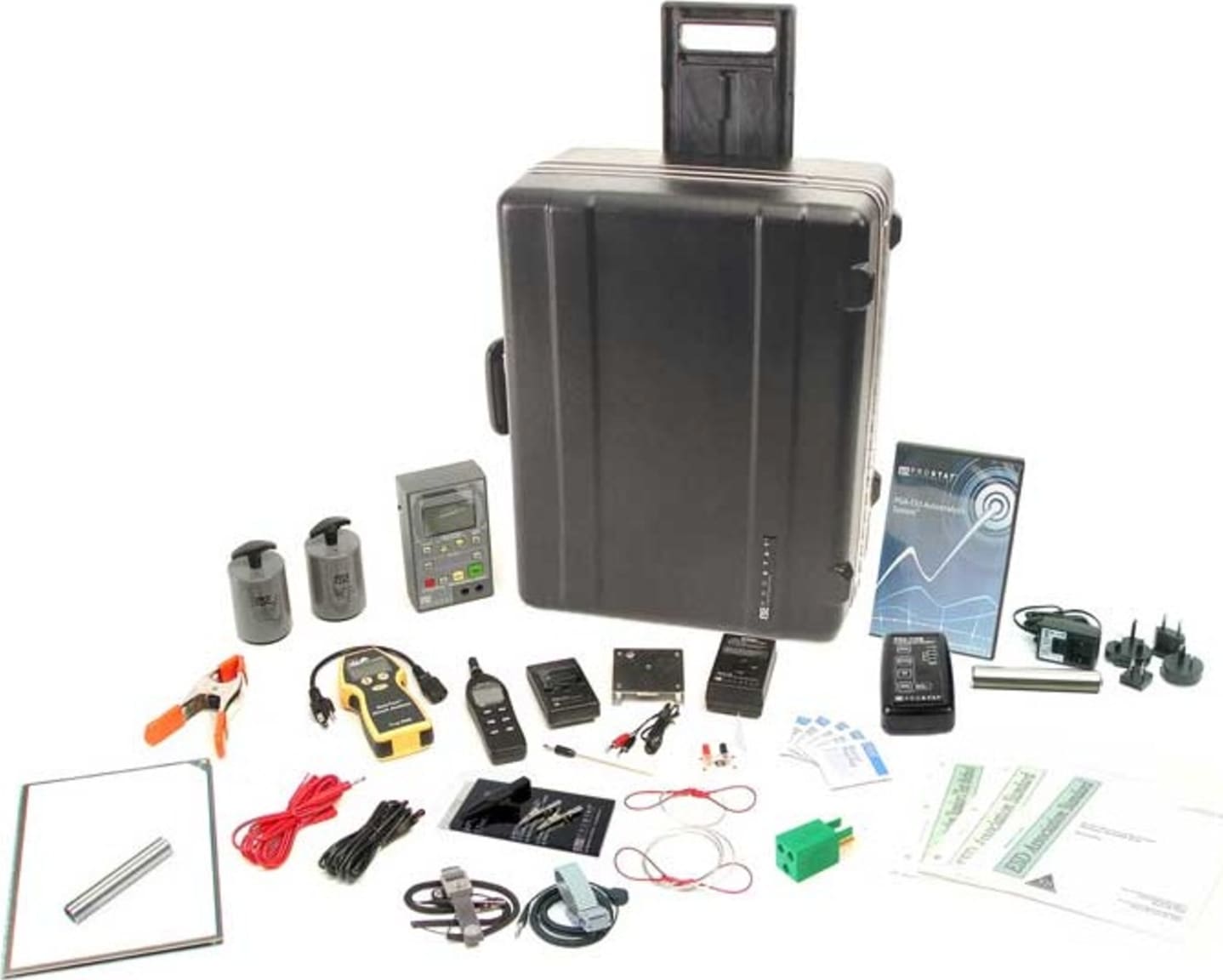

The PFC-252 Professional Floor Certification Kit is specifically designed for anyone who is verifying floor performance to ANSI/ESD S20.20, IEC 61340-5-1, or other company requirements.

Measure Floor Resistance per ANSI/ESD S7.1

The PFC-252 includes PRS-812B Resistance Meter with 5-pound Premium Conductive Rubber Electrodes and Prostat’s PRS-800CS Cable Spacers for exact measurements. The PRS-812B wide range resistance meter can take measurements at 10 and 100 volts with accuracy within ±5%.

With the highly conductive resistance probes and resistance meter, measure point-to-point and resistance-to-ground resistance in accordance with ANSI/ESD S7.1. Using the included PRV-813 Electrode Verifier, you can confirm the resistance and flatness of the 5lbs electrodes, ideal for ESD floor certification.

Perform the Walking Test per ANSI/ESD STM97.2

Also included is the PFK-100B Electrostatic Field Meter Kit. The PFK-100B set includes the PFM-711B dual range FieldMmeter, CPM-720B Charged Plate Monitor Assembly and PCS-730B ±1 kV Electrostatic Charger. With this instrument set you can measure electrostatic fields, analyze ionizer performance and assess the voltage generation of materials, equipment and personnel.

The PGA-710B is a unique electrostatic data analysis device for use with Prostat’s PFK-100B Fieldmeter/Charge Plate Monitor Set. It records, plots, analyzes and automatically constructs reports of body voltage generation, electrostatic decay, voltage retention, ionizer performance and other static measuring functions. Its analytical features document and automatically calculate projected levels of typical Human Body (HBM) voltages. It helps determine the risk of equaling or exceeding damaging or hazardous HBM discharge voltages in static sensitive facilities on the floor.

Everything you need to certify a floor, or floor and footwear combinations.
