A Packaging Testing Kit Designed for Engineers

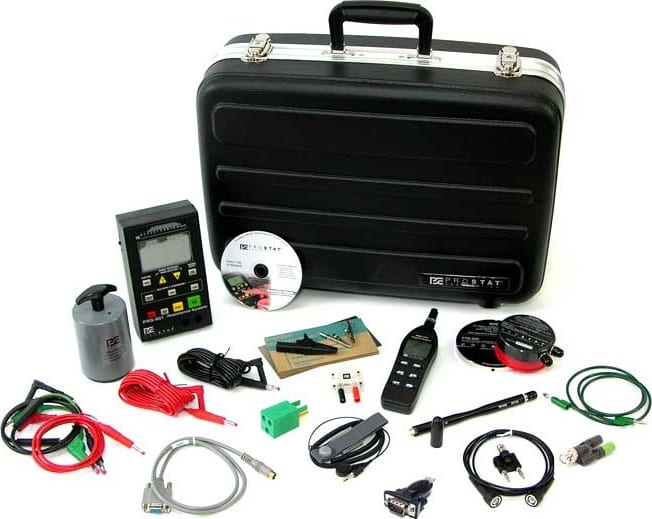

The PET-160 Packaging Engineers Test Kit is a complete system designed to help engineers develop and test packaging materials.
Wide Range Resistance Meter
The PRS-801B is a wide-range resistance system capable of measuring from 0.01 ohms to 200 Teraohms. The PRS-801B also provides a ground reference for grounding the system for high resistance measurements.
Meets the requirements of ANSI/ESD STM11.11, ANSI/ESD STM11.12 and IEC 61340-2-3
The PRF-911 is a lightweight, low-profile concentric ring designed to measure Surface Resistance per ANSI/ESD STM11.11 and Volume Resistance per ANSI/ESD STM11.12. It will also approximate surface and volume resistivity measurements per ASTM D-257. The PRF-911 also meets the requirements of IEC 61340-2-3.
Measure Point-to-Point Resistance of Small Surfaces per ANSI/ESD STM11.13
The PRF-922B is a miniature probe capable of accurately measuring point-to-point resistance up to 1.00x1012 ohms when connected to the PRS-801B. When measuring the resistance of small surfaces such as material samples, hard-to-access molded areas, edges of parts, trays, or tape cells, the PRF-922B is a convenient tool meeting the requirements as described in ANSI/ESD STM11.13.
A Verification Fixture for your Two-Point Probe
The PRV-913B is a convenient fixture used to verify the PRF-922B before making measurements. It confirms its functionality by defining contact with the reference surface inside the verification fixture.
A Dual Test Bed for the either Measurement
The PTB-920 Dual Test Bed that’s included in this kit consists of an insulated test surface for ANSI/ESD STM11.11 Surface Resistance Measurements laminated to a steel test plate, which is employed for Volume Resistivity measurements per ANSI/ESD STM11.12. The four-inch diameter steel test bed assembly includes a banana receptacle for instrument connections during volume measurements.
Complete Kit that Includes Grounding Accessories
The PET-160 is complete that includes the PHT-771 Digital Psychrometer to record temperature and relative humidity. It also includes a wrist strap, the Q007B Grounding Qube and related ground cords.
All of the equipment in the kit is conveniently packaged in a compact carrying case making it easy to store safely or travel with.
