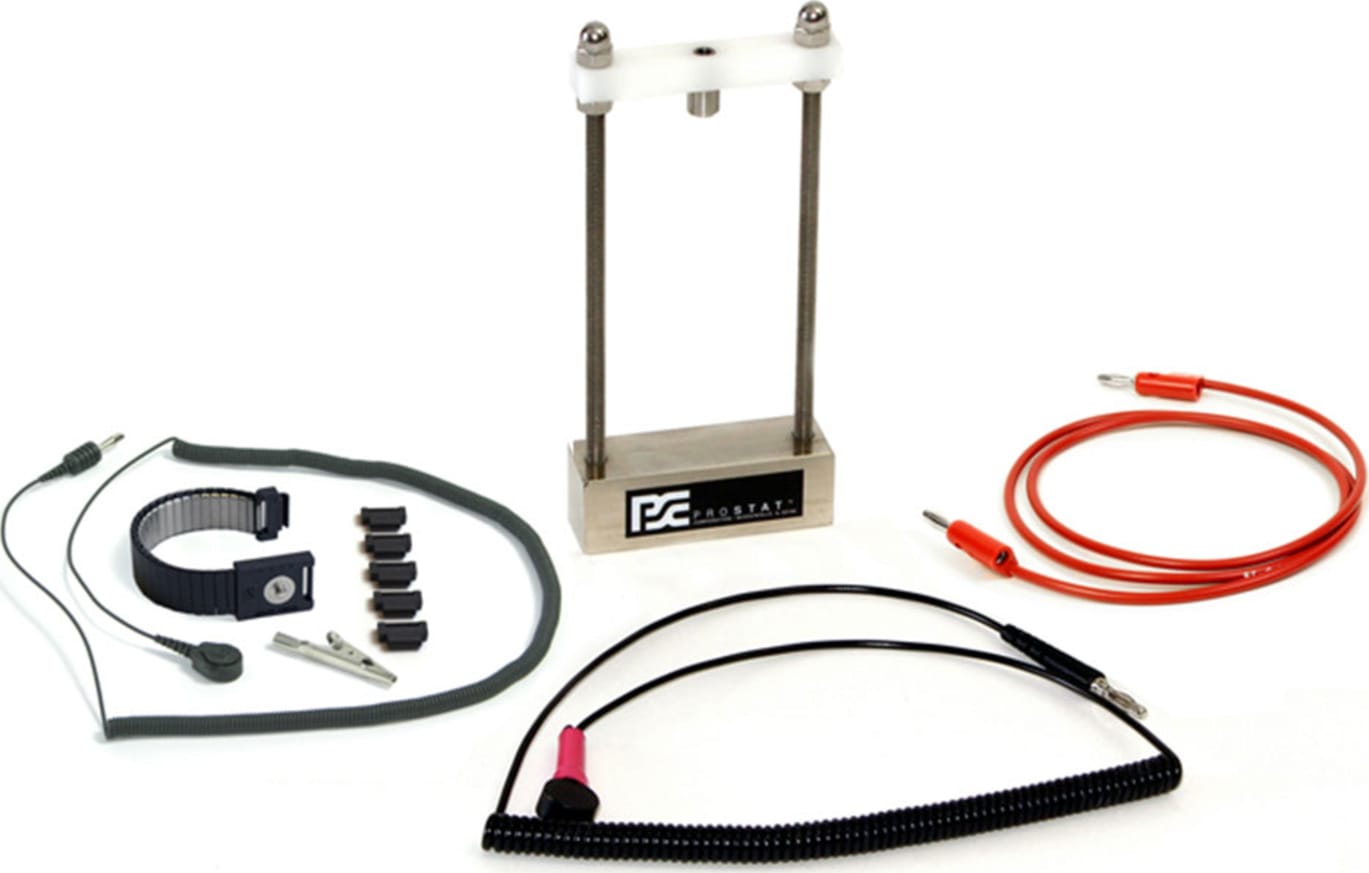

Prostat PCF-825B - Glove CAF Fixture
Designed for In-Use Resistance Testing of Gloves and Finger Cots
The PCF-825B Glove CAFE Test Electrode is designed in accordance with ESD Association Standard Practice ANSI/ESD SP15.1. The document provides test procedures for measuring the intrinsic electrical resistance of gloves and finger cots, as well as their electrical resistance together with personnel as a system.
Use it with any Prostat Resistance Meters
The Constant Area and Force Electrode (CAFE) is held by a person’s finger to reproducibly measure resistance from the finger to the electrode. It is easily used together with the PRS-801B, PRS-812B or PAS-853B.
It Includes a Ground Cord Containing an Integral 1 Megohm Resistor
Included with the PCF-825B is the PWS-610PGC ground cord with an integral one megohm resistor for performing a high voltage system, high resistance test. The PWS-610PGC meets the requirements of ANSI/ESD S1.1.
Use the No-Resistor Ground Cord for Low Voltage System Resistance Test
To perform a low voltage system resistance test of less than 1.0 x 106, use the included PWS-611PGC no resistor ground cord. The PWS-611PGC includes a 4mm female snap that attaches to the wrist band.
