Prostat PCF-825B Set Glove CAFE Fixture

Name: Prostat PCF-825B Set Glove CAFE Fixture
Brand: Prostat
SKU: ProstatPCF-825B Set
Price: 325.00 USD
Availability: InStock

0 reviews | Model: Prostat PCF-825B Set

Compare

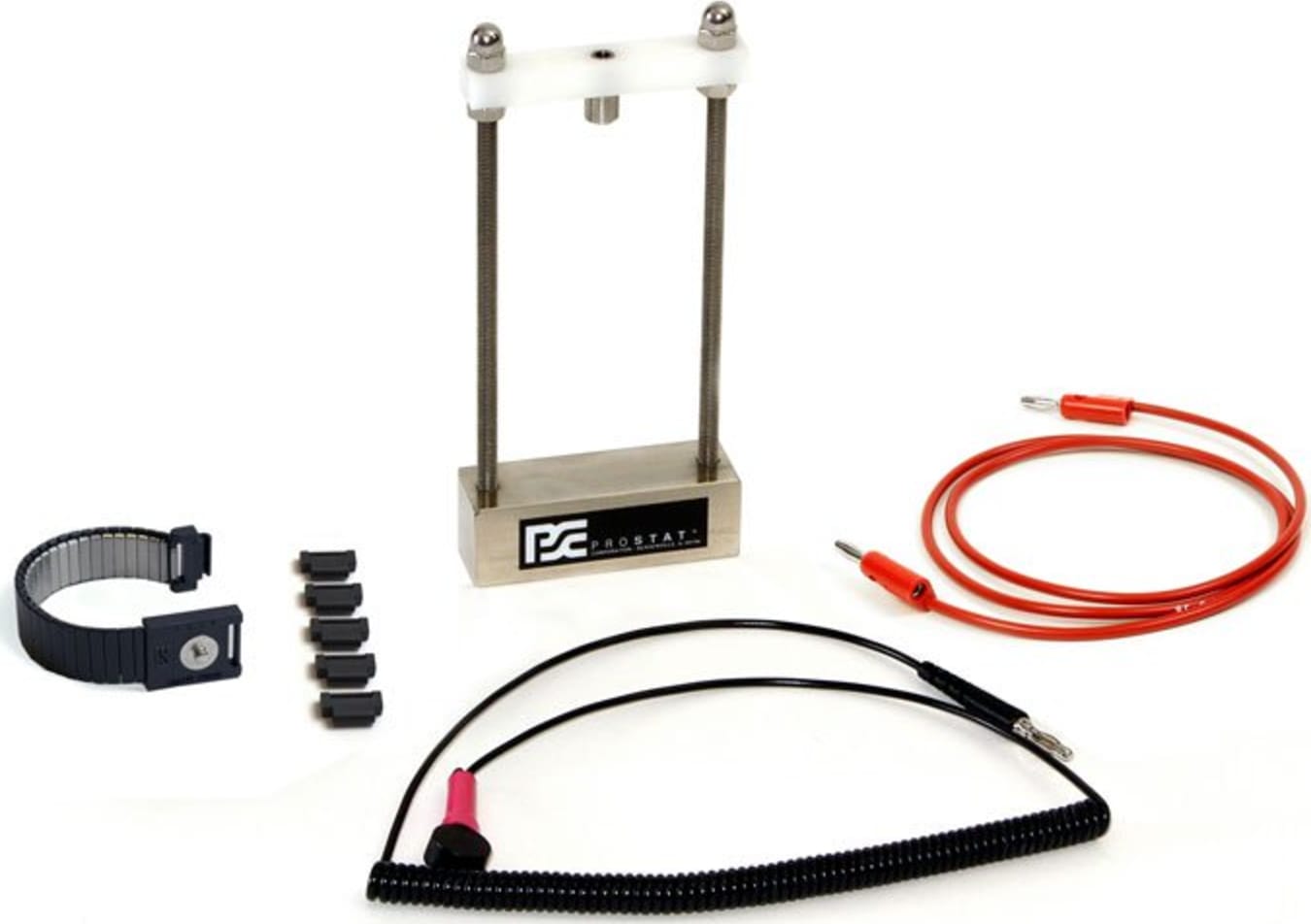

Glove Test Fixture Set

1 each – PCF-825B (CAFÉ) Fixture
1 each – PWS-611-PGC Wrist Strap Ground Cord (with no resistor)
1 each – PWS-620C Metal Wrist Band
1 each – PCF-825BLR Test Lead
1 each – User Manual which includes testing procedure

View Product Details

List Price: $325.00

In Stock:

View Payment Options

Recommended for you

Prostat PCF-825B Set - Glove Test Fixture Set

1 each - PCF-825B (CAFÉ) Fixture
1 each - PWS-611-PGC Wrist Strap Ground Cord (with no resistor)
1 each - PWS-620C Metal Wrist Band
1 each - PCF-825BLR Test Lead
1 each - User Manual which includes testing procedure

Test Gloves and Finger Cots According To ANSI/ESD SP15.1

This unique fixture was designed in accordance with ESD Association Standard Practice ANSI/ESD SP15.1 page 5. This document provides test procedures for measuring intrinsic electrical resistance of gloves and finger cots, as well as their electrical resistance together with personnel as a system.

The Constant Area and Force Electrode (CAFÉ) is held by a person’s finger to reproducibly measure resistance from the finger to the electrode.

Dimensions	(L x H x D): 3” x 6” x 1” (7.6cm x 15.24cm x 2.5cm)
Electrode Material	303 Stainless Steel
Cross Bar Material	UHMW
Threaded Rod Material	Stainless Steel
Test Lead Connection	303 Stainless Steel
Bottom Weight Material	1018 CRS Plated (Nickel or Zinc)
Total Assembly Weight	16 oz (454g)

Test Equipment General Attributes
Warranty	1 YEARS
Warranty Details	Each Prostat® product is warranted to be free from defects in material and workmanship under normal use and service. The warranty period is one (1) year and begins on the date of shipment. This warranty extends only to the original buyer or end-user customer of a Prostat Authorized Reseller, and does not apply to fuses, disposable batteries or to any product which, in Prostat’s opinion, has been misused, altered, neglected or damaged by accident or abnormal conditions of operation or handling. Prostat warrants that software will operate substantially in accordance with its functional specifications for 90 days and that it has been properly recorded on non-defective media. Prostat does not warrant that software will be error free or operate without interruption.
Product Weight	454 GRAMS (1.00 LBS)
Product Height	6 IN
Product Length	3 IN
Product Width	9.25 IN
HTS/Schedule B Number	9030333400
ECCN Number	EAR99
Country of Origin	United States
Shipping Height	2.25 IN
Shipping Length	13.00 IN
Shipping Width	9.25 IN
