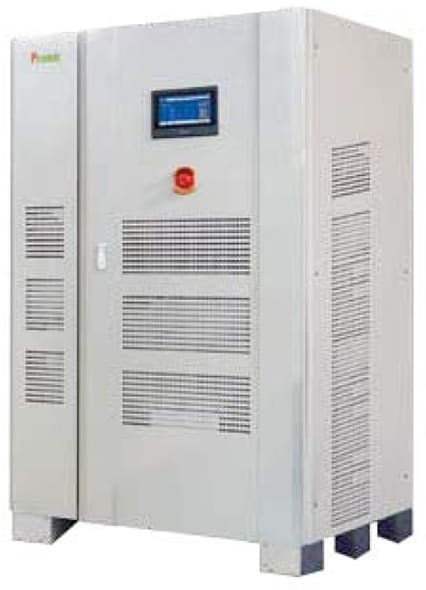

Preen AFV-33160 - 160kVA, 3 Phase Input, 3 Phase Output, Programmable AC Power Source

Name: Preen AFV-33160 - 160kVA, 3 Phase Input, 3 Phase Output, Programmable AC Power Source
Brand: Preen
SKU: PreenAFV-33160
Availability: InStock

0 reviews | Catalog: AFV-33160 | Model: Preen AFV-33160

Compare

160kVA, 3 Phase In, 3 Phase Out. 0~300Vrms, 45~500Hz Output, - PLEASE NOTE: Items in stock typically are calibrated prior to shipping and take 3-5 days before shipping.

Cannot Ship Air

Three phase output power (160kVA)
CE mark with high electromagnetic compatibility performance
Programming Sequence Function: STEP and GRADUAL modes allow users to easily set sequences of start/ end voltage, frequency and run time for testing purposes
Optional soft start function to reduce inrush current from motor type UUT
Touch screen display for easy operation
Optional three phase independent control to set voltage of each phase
Comprehensive protection includes over voltage, over current, over load, input under voltage and over temperature with over 20 corresponding error codes and event log for easier trouble shooting
Standard RS232 and RS485 interfaces and optional GPIB interface available
Patented power module design with compact size for easier maintenance and high power density
*Some functions are limited to the AFV series

View Product Details

In Stock:

View Payment Options

Call Us

Request Quote

Non-Cancellable / Non-Returnable

Items in This Series



Product	Preen AFV-33160 160kVA, 3 Phase In, 3 Phase Out. 0~300Vrms, 45~500Hz Output, - PLEASE NOTE ...	Preen AFV-31010 10kVA, 3 Phase In, Single Phase Out. 0~300Vrms, 45~500Hz Output, - PLEASE ...	Preen AFV-31015 15kVA,3 Phase In, Single Phase Out. 0~300Vrms, 45~500Hz Output, - PLEASE N ...	Preen AFV-31030 30kVA, 3 Phase In, Single Phase Out. 0~300Vrms, 45~500Hz Output, - PLEASE ...	Preen AFV-31045 45kVA, 3 Phase In, Single Phase Out. 0~300Vrms, 45~500Hz Output, - PLEASE ...	Preen AFV-31080 80kVA, 3 Phase In, Single Phase Out. 0~300Vrms, 45~500Hz Output, - PLEASE ...	Preen AFV-31100 100kVA, 3 Phase In, Single Phase Out. 0~300Vrms, 45~500Hz Output, - PLEASE ...	Preen AFV-31120 120kVA, 3 Phase In, Single Phase Out. 0~300Vrms, 45~500Hz Output, - PLEASE ...	Preen AFV-33010 10kVA, 3 Phase In, 3 Phase Out. 0~300Vrms, 45~500Hz Output- PLEASE NOTE: I ...	Preen AFV-33015 15kVA,3 Phase In, 3 Phase Out. 0~300Vrms, 45~500Hz Output- PLEASE NOTE: It ...	Preen AFV-33030 30kVA, 3 Phase In, 3 Phase Out. 0~300Vrms, 45~500Hz Output- PLEASE NOTE: I ...	Preen AFV-33045 45kVA, 3 Phase In, 3 Phase Out. 0~300Vrms, 45~500Hz Output- PLEASE NOTE: I ...	Preen AFV-33060 60kVA, 3 Phase In, 3 Phase Out. 0~300Vrms, 45~500Hz Output, - PLEASE NOTE: ...	Preen AFV-33080 80kVA, 3 Phase In, 3 Phase Out. 0~300Vrms, 45~500Hz Output, - PLEASE NOTE: ...	Preen AFV-33100 100kVA, 3 Phase In, 3 Phase Out. 0~300Vrms, 45~500Hz Output, - PLEASE NOTE ...	Preen AFV-33120 120kVA, 3 Phase In, 3 Phase Out. 0~300Vrms, 45~500Hz Output, - PLEASE NOTE ...
Price
In Stock
Output Capacity	160000 VA (160000 Watts)	10000 VA (10000 Watts)	15000 VA (15000 Watts)	30000 VA (30000 Watts)	45000 VA (45000 Watts)	80000 VA (80000 Watts)	100000 VA (100000 Watts)	120000 VA (120000 Watts)	10000 VA (10000 Watts)	15000 VA (15000 Watts)	30000 VA (30000 Watts)	45000 VA (45000 Watts)	60000 VA (60000 Watts)	80000 VA (80000 Watts)	100000 VA (100000 Watts)	120000 VA (120000 Watts)
Meter Type	Digital	Digital	Digital	Digital	Digital	Digital	Digital	Digital	Digital	Digital	Digital	Digital	Digital	Digital	Digital	Digital
Variable Frequency	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Preen AFV-33160 Accessories

Choose a Category

Power Supply Kits

for the Preen AFV-33160

Cal Test CT4041 Power Supply Accessory Kit ( rated for up to 20amps ) Get the most...

Catalog: CT4041

(24)

In Stock!

Add to Cart

Preen AFV-33160 - 160kVA, 3 Phase Input, 3 Phase Output, Programmable AC Power Source

Three phase output power (160kVA)
7 Inches Touch Screen
Programmable Testing Steps
Phase Angle Adjustment
Option for Different Output Voltage
Complete Protection
RS232 / RS485 / GPIB Interface Options

Preen's AFV series is a programmable AC power supply, provides complete output voltage and output frequency to achieve various types of industrial requirements. Additionally, the AFV series provides programmable features, such as STEP feature and GRADUAL feature, which are ideal for R&D and compliance test.

With the advanced SPWM and DDS waveform technology, the AFV series provides high quality and stable output with output level up to 2000kVA. The AFV series adopts the touch screen to support user operation, which provides impressive users experience while operating the product. Users are allowed to remotely control the product via the standard interface: RS485 or the optional interface: RS232/GPIB. Additionally, the AFV series provides complete product protection, such as OVP, UVP, OCP, OPP, OTP and short circuit protection, and the product will immediately alarm users and stop the product output while the product protection is enabled.

High Power AC Source Applications

Key Features of AFV Series

Intuitive Touch Screen

Users are allowed to operate the product via the touch screen on the front panel, which provides an easy operation for users to quickly set the product output.

Three Phase Independent Control (Opt.)

Users are allowed to control three-phase output voltage and output frequency independently. The product can be used as one unit of three-phase power supply or as three units of single-phase power supply.

STEP Feature

Preen AFV series provides up to 24 sequences in the STEP feature. Through the STEP feature, users are allowed to set the product output, such as output voltage, output frequency and dwell time of performing the STEP feature in each of the adjustable sets, and then the product output will change step by step accordingly. Additionally, the product can automatically repeat the STEP feature according to the setting product output up to 255 times, which is suitable for electric motor and home application test.

GRADUAL Feature

Preen AFV series provides up to 12 sequences in the the GRADUAL feature. Through the GRADUAL feature, users are allowed to set the product output, such as start/end output voltage, start/end output frequency and dwell time of performing the GRADUAL feature in each of the adjustable sets, and then the product output will change according to the setting slew rate. Additionally, the product can automatically repeat the GRADUAL feature according to the setting product output up to 255 times.

Soft Start Feature (optional)

With the soft start feature, the product effectively reduces inrush current generated while turning on inductive loads, such as motor and air conditioning compressor and etc. Accordingly, the product is suitable for electric motor industries to run reliability test.

Variable Voltage Constant Frequency (VVCF)

Variable Voltage Variable Frequency (VVVF)

Model			AFV-33160
Power(kVA)			160
Input	Phase		3Ø3W + G or 3Ø4 + G
	Voltage		380VL-L ±15%, 400VL-L ±15%, 415VL-L ±15%, 480VL-L ±15% (All models available) 600VL-L ±15% (optional)
	Frequency range		47 ~ 63Hz
	Power Factor		0.85
	Max Current		335.5
Output	Phase		3Ø4W + G
	Voltage	Low(V)	0V~150.0V (L-N)
		High(V)	0V~300.0V (L-N)
	Optional Voltage Range		0V~300V / 0V~600V(L-N) Build in Cabinet with Regulated Output (Other Voltage Range Available)
	Frequency Range		45 - 65HZ (Optional 45 - 500Hz)
	Frequency Regulation		≤ 0.01%
	Max.current	High (A)	222.2
		Low (A)	444.4
System	Line regulation		<0.5%
	Load regulation		±1%(Resistive Load)
	Total harmonic distortion(THD)		≤ 2% (Resistive Load)
	Efficiency		≥ 85%
	Response time		≤ 2ms
	Crest factor		3:1
	Protection device		OVP, UVP, OCP, OPP, OTP and Short Circuit Protection
Measurement
	Voltage		Resolution: 0.1V, Accuracy: 0.5% FS + 4Counts
	Current		Resolution: 0.1A, Accuracy: 0.5% FS + 4 Counts
	Frequency		Resolution: 0.1 Hz; Accuracy: 0.5% FS + 4 Counts
Remote Interface			RS-485: Standard RS-232/GPIB: Optional
General	Temperature		0°C - 45°C
	Humidity		0 - 90% (Non-condensing)
	Altitude		<1500m
Dimension (WDH) mm			1150 x 1240 x 1900
Weight (Kg)			1400

Tech Specs

Power Supplies/AC Power Supplies Template
Output Capacity	160000 VA (160000 Watts)
Meter Type	Digital
Variable Frequency	Yes
Programmable	Yes
Linear/Switching	Switching
Outputs	Triple
Voltage Output 1	Variable
Max Voltage Output 1	300 V
Max Current Output 1	222.2 A
Voltage Output 2	Variable
Max Voltage Output 2	150 V
Max Current Output 2	444.4 A
Output Adaptor Plug	None
Max Display Resolution Current	0.1 A
Max Display Resolution Voltage	0.1 V (100 mV)
Remote Sensing	No
Test Equipment General Attributes
Unique Features	Touch Screen Display
Warranty	1 YEARS
Safety Approval	CE, RoHS
Interfaces I/O	GPIB, LAN / Ethernet, RS-232, RS-485, Analog Input
IP Rating	IP20
Product Weight	3086 LBS
Product Height	74.9 IN
Product Length	48.9 IN
Product Width	45.3 IN
Data Logging	No
Calibration Included	Factory Calibration
Country of Origin	China
Shipping Height	48.80 IN
Shipping Length	74.80 IN
Shipping Width	45.30 IN
