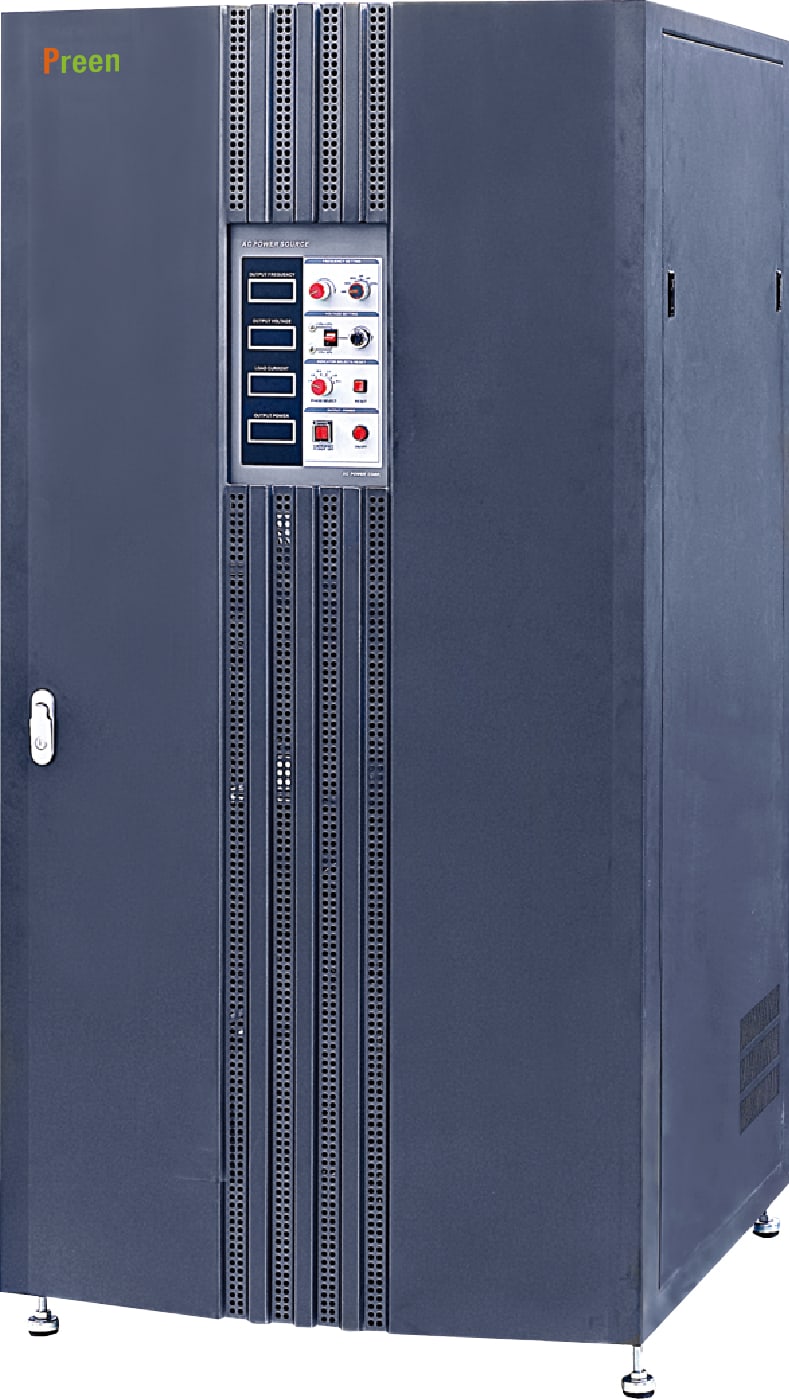

Preen AFC-31030 - AFC Series, 3 Phase Input, Single Phase Output AC Power Source, 30kVA

Name: Preen AFC-31030 - AFC Series, 3 Phase Input, Single Phase Output AC Power Source, 30kVA
Brand: Preen
SKU: PreenAFC-31030
Price: 21750.00 USD
Availability: InStock

0 reviews | Catalog: AFC-31030 | Model: Preen AFC-31030

Compare

30kVA, 3 Phase In, Single Phase Out. 5~300Vrms, 47~63Hz Output, - PLEASE NOTE: Items in stock typically are calibrated prior to shipping and take 3-5 days before shipping.

Cannot Ship Air

Output Power: Single Phase Output (30kVA)
Output Frequency: Type A to Type E frequency range according to the application
Output Voltage: 5-150V/10-300VL-N (520VL-L), Optional for custom output voltage range available
Double conversion, Galvanic isolation input to input, Clean Output, THD: < 2% (Optional for <1%)
Analog knob for adjusting V and Hz, LED display for showing output V, A, kW, Hz
One single stand alone unit up to 2000kVA (not parallel connected multiple units) with high MTBF
All models equipped with input breaker and output magnetic switch with safety protection
Optional output EMI filter for EMC chamber power applications
Optional overload capacity for motor or inductive type load
Optional for environmental proof or outdoor applications
Optional RS232 or RS485 remote controlling the output V and Hz (no monitoring available)

View Product Details

Your Price: $21,750.00

Sign-in for EDU Pricing!

In Stock:

View Payment Options

Request Quote

Non-Cancellable / Non-Returnable

Items in This Series



Product	Preen AFC-31030 30kVA, 3 Phase In, Single Phase Out. 5~300Vrms, 47~63Hz Output, - PLEASE N ...	Preen AFC-11005 5kVA, Single Phase In, Single Phase Out. 5~300Vrms, 47~63Hz Output, - PLEA ...	Preen AFC-31010 10kVA, 3 Phase In, Single Phase Out. 5~300Vrms, 47~63Hz Output, - PLEASE N ...	Preen AFC-31015 15kVA,3 Phase In, Single Phase Out. 5~300Vrms, 47~63Hz Output, - PLEASE NO ...	Preen AFC-31045 45kVA, 3 Phase In, Single Phase Out. 5~300Vrms, 47~63Hz Output	Preen AFC-33005 5kVA, 3 Phase In, 3 Phase Out. 5~300Vrms, 47~63Hz Output, - PLEASE NOTE: I ...	Preen AFC-33010 10kVA, 3 Phase In, 3 Phase Out. 5~300Vrms, 47~63Hz Output, - PLEASE NOTE: ...	Preen AFC-33015 15kVA,3 Phase In, 3 Phase Out. 5~300Vrms, 47~63Hz Output, - PLEASE NOTE: I ...	Preen AFC-33030 30kVA, 3 Phase In, 3 Phase Out. 5~300Vrms, 47~63Hz Output, - PLEASE NOTE: ...	Preen AFC-33045 45kVA, 3 Phase In, 3 Phase Out. 5~300Vrms, 47~63Hz Output	Preen AFC-33060 60kVA, 3 Phase In, 3 Phase Out. 5~300Vrms, 47~63Hz Output, - PLEASE NOTE: ...	Preen AFC-33080 80kVA, 3 Phase In, 3 Phase Out. 5~300Vrms, 47~63Hz Output, - PLEASE NOTE: ...	Preen AFC-33100 100kVA, 3 Phase In, 3 Phase Out. 5~300Vrms, 47~63Hz Output, - PLEASE NOTE: ...
Price
In Stock
Output Capacity	30000 VA (30000 Watts)	5000 VA (5000 Watts)	10000 VA (10000 Watts)	15000 VA (15000 Watts)	45000 VA (45000 Watts)	5000 VA (5000 Watts)	10000 VA (10000 Watts)	15000 VA (15000 Watts)	30000 VA (30000 Watts)	45000 VA (45000 Watts)	60000 VA (60000 Watts)	80000 VA (80000 Watts)	100000 VA (100000 Watts)
Meter Type	Digital	Digital	Digital	Digital	Digital	Digital	Digital	Digital	Digital	Digital	Digital	Digital	Digital
Variable Frequency	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Preen AFC-31030 Accessories

Choose a Category

Power Supply Kits

for the Preen AFC-31030

Cal Test CT4041 Power Supply Accessory Kit ( rated for up to 20amps ) Get the most...

Catalog: CT4041

(24)

In Stock!

Add to Cart

Preen AFC-31030 - AFC Series, 3 Phase Input, Single Phase Output AC Power Source, 30kVA

Output Power: Single Phase Output (30kVA)
Output Frequency: Type A to Type E frequency range according to the application
Output Voltage: 5-150V/10-300VL-N (520VL-L), Optional for custom output voltage range available
Double conversion, Galvanic isolation input to input, Clean Output, THD: < 2% (Optional for <1%)
Analog knob for adjusting V and Hz, LED display for showing output V, A, kW, Hz

Preen's AFC Series is an adjustable AC power source, provides double power conversion from a variety of inputs to pure clean sinusoidal output, isolate the harmonics from the grid system, fully adjustable across the output voltage and frequency ranges. Preen engineers have designed power products for over 35 years, the reliability and endurance of the AFC series products make the ideal solution for production, burn-in testing, chamber power, or laboratory stationary power source.

AFC series is designed with IGBT technology, consists of single phase output models from 0.5kVA to 120kVA and three phase output models from 5kVA to 2000kVA. The adjustable voltage output range of 5"300VL-N (8-520VL-L for three phase output system). AFC series also provides custom voltage range option that can simulate higher voltage range utility (ex: 600VL-L system) or lower voltage range with higher current test units. AFC series provides different output frequency band with different price range. Users can choose the frequency band according to their requirements and save the cost for their specific purpose. AFC series is a simple, clean, and cost effective solution for all of your AC power conversion needs!

Type	Output Frequency Range	Applications
A (Standard)	47-63Hz Adjustable, 50/60Hz Selectable	Industrial Product Testing, Production Line Power, Chamber Power, Burn-in Testing
B	45-500Hz Adjustable	Laboratory Testing, Electrical Safety Test
C	350-450Hz Adjustable, 400Hz	Military Stationary Power, Product Testing
D	47-63Hz Adjustable, 50/60/2F/4F/400Hz selectable	Transformer Testing
E	50/60Hz Selectable	Clean Variable Voltage Power Source, Frequency Conversion

Clean Adjustable Power Source Applications

Comparison with Motor Generator Setand Motor Driven Variable Transformer

	AFC Series	Motor Generator Set	Motor Driven Variable Transformer
Adjust Output Voltage	✓		✓
Select Output Frequency	✓	✓
Adjust Wide Frequency Range	✓
Static Type Without Moving Part	✓
Low Noise suitable for indoor lab	✓
Response Time for setting new V or Hz	Fast	-	Slow
Isolate Harmonics From Grid System	✓
Regulate Output V or Hz when Load Change	✓
Regulate Output V or Hz when Grid Change	✓
Output Harmonic Distortion	<1 to 2%	<4 to 5%	Same as Input Grid
Full Load Efficiency	85~90%	70~80%
Suitable for Outdoor or Sever Applications		✓
Overload Capability	Option	✓	✓
Maintenance	Little or no preventive maintenance other than cleaning fans, exhausts	Preventive maintenance is required, e.g., bearing maintenance, belt replacement	Preventive maintenance is required, e.g., bearing maintenance, belt replacement

Model

AFC-31030

Output

Power

30KVA

Phase

1Ø2W +G

Voltage (Vrms)

Low(V): 5-150 VAC , High(V): 10-OOVAC(L-N)

Frequency

47 - 63Hz 50Hz 60 z
2F(2 times frequency)
4F(4 times frequency
Optional: 400 Hz

Current/Phase

Low (Arms)

250.0

High (Arms)

125.0

THD

≤2%* (opt. ≤1%)

Regulation

±1%*

Frequency Accuracy

≤0.01%

Efficiency

≥90%

Input

Voltage

120/208V or 277/480V or 220/380V ±15% (3Ø4W +G)

Frequency

50 or 60 ±3 Hz

Power Factor

≥0.92

Dimensions (WxDxH) mm/inch

600x850x1340 / 23.7x33.5x52.8

Weight kg/lbs

360/793

AFC series have input overvoltage, undervoltage, overcurrent, over power, output overvoltage, undervoltage, reverse current, over temperature and short circuit protection.
* The test situation is under resistive load. ** All specifications are subject to change without notice.
***All dimensions and weights are for input voltage 220/380V. Please contact us for dimensions for other input voltage.

Tech Specs

Power Supplies/AC Power Supplies Template
Output Capacity	30000 VA (30000 Watts)
Meter Type	Digital
Variable Frequency	Yes
Programmable	No
Linear/Switching	Switching
Outputs	Single Output-Dual Range
Voltage Output 1	Variable
Max Voltage Output 1	300 V
Max Current Output 1	125 A
Voltage Output 2	Variable
Max Voltage Output 2	150 V
Max Current Output 2	250 A
Max Display Resolution Current	0.01 A
Max Display Resolution Voltage	0.1 V (100 mV)
Constant current/voltage	Yes
Remote Sensing	No
Test Equipment General Attributes
Warranty	1 YEARS
Safety Approval	CE, RoHS
Interfaces I/O	RS-485
IP Rating	IP20
Product Weight	793 LBS
Product Height	52.8 IN
Product Length	33.5 IN
Product Width	23.7 IN
Data Logging	No
Calibration Included	Factory Calibration
Country of Origin	China
Shipping Height	52.80 IN
Shipping Length	33.50 IN
Shipping Width	23.70 IN
