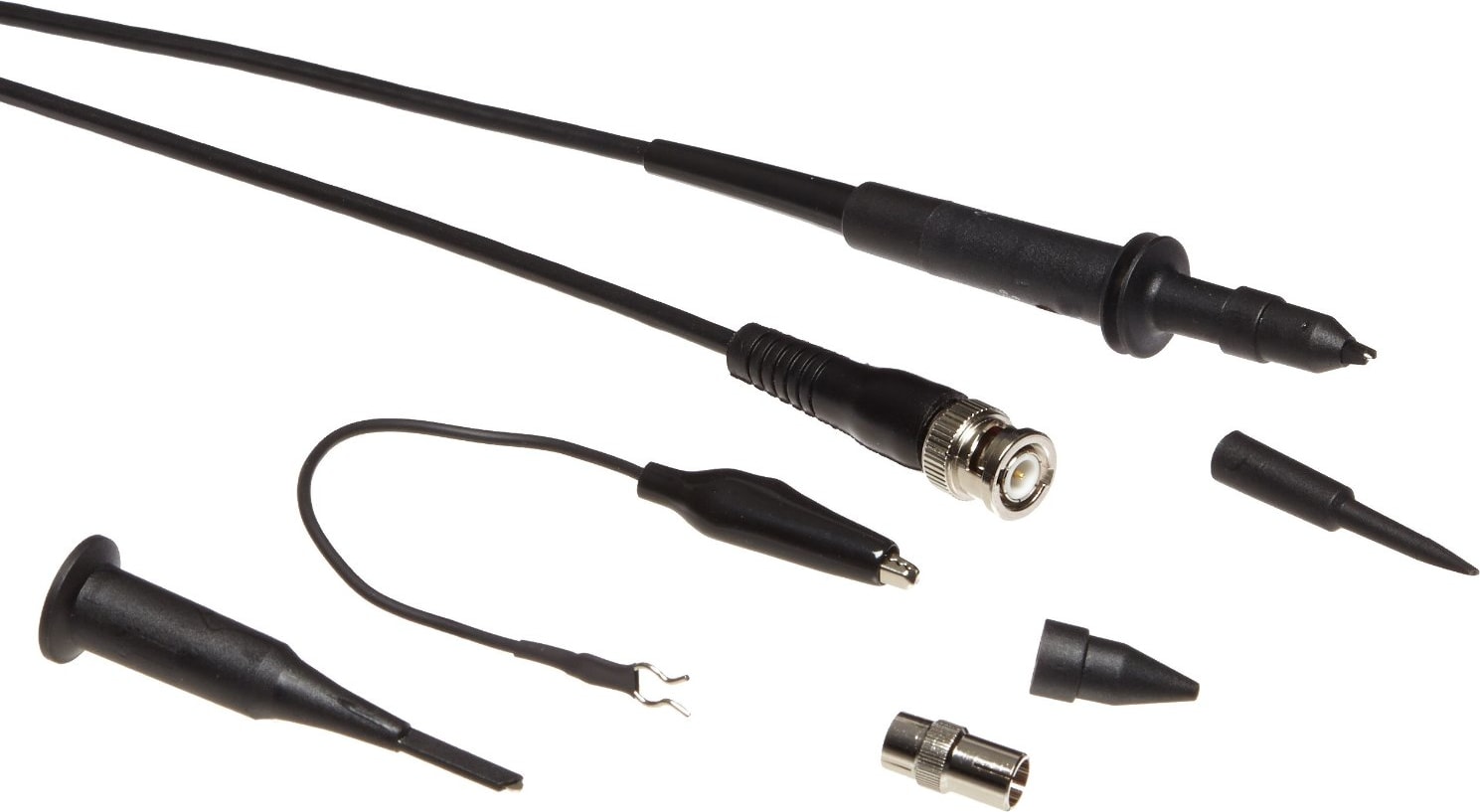

Pomona 6069A Monolithic Passive Probe, 250 MHz without Readout Actuator

Name: Pomona 6069A Monolithic Passive Probe, 250 MHz without Readout Actuator
Brand: Pomona
SKU: Pomona6069A
Price: 76.79 USD
Availability: InStock

0 reviews | UPC: 095969163323 | Model: Pomona 6069A

Compare

OSCILLOSCOPE PROBE

Passive Oscilloscope probes feature a one piece (monolithic) design for robust probe life.
For ease of use, Readout Actuator for probe attenuation sensing and a Ground Reference switch are featured on some probe models.
Full set of accessories are included with each probe.
All probes meets IEC1010-2-031, 300V, CAT I

View Product Details

List Price: $83.99

In Stock:

View Payment Options

Recommended for you

The Pomona 6069A General Purpose Oscilloscope Probes without Readout Actuator, 250 MHz System Bandwidth. Probe bandwidth ratings are specified as a system bandwidth. System bandwidth includes both probe and oscilloscope together as a system. The result is a probe frequency response that can essentially be considered transparent.

Pomona 6069A Specification
Probe ratio	10:1
Max. input voltage (CAT I)	300V
System bandwidth (-3 dB)	250 MHz
System risetime	< 1.40 ns
Probe input resistance	10MΩ
Probe input capacitance	< 10 pF
Compensation range	10 - 30 pF
Readout actuator	No
Cable length	4 feet
