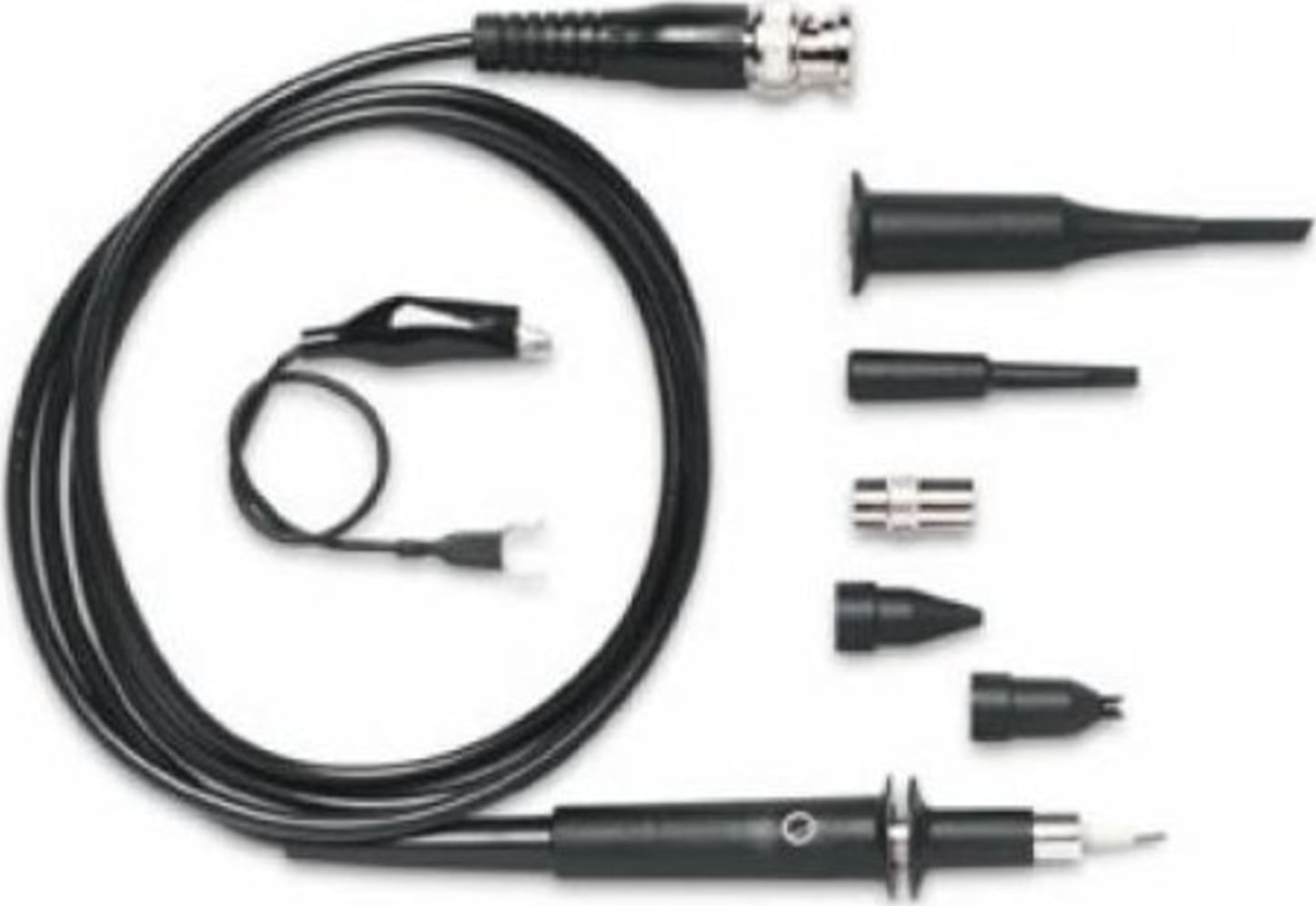

Pomona 5806A Oscilloscope probe, X1/X10, 20/200 MHz, monolithic

Name: Pomona 5806A Oscilloscope probe, X1/X10, 20/200 MHz, monolithic
Brand: Pomona
SKU: Pomona5806A
Price: 81.54 USD
Availability: InStock

0 reviews | UPC: 095969162111 | Model: Pomona 5806A

Compare

OSCILLOSCOPE PROBE

Passive Oscilloscope probes feature a one piece (monolithic) design for robust probe life
Probe bandwidth ratings are specified as a system bandwidth. System bandwidth includes both probe and oscilloscope together as a system. The result is a probe frequency response that can essentially be considered transparent
For ease of use, Readout Actuator for probe attenuation sensing and a Ground Reference switch are featured on some probe models
Full set of accessories are included with each probe
All probes meets IEC1010-2-031, 300V, CAT I

View Product Details

List Price: $89.19

In Stock:

View Payment Options

Recommended for you

Attenuation	X1/X10
System Bandwidth (3dB) MHz.	20/200
System Risetime ns	17.5/1.75
Compensation Range (pf.)	10-60
Voltage Max.	300
Input Res. (MΩ)	1/10
Input Cap. (pf.)	77/11.5
Readout Actuator Pin	No
Gnd. Ref.	Yes

1.) Measurements based on 1M Ohm, 20 pf. Oscilloscope.
2.) Maximum probe input voltage is limited to the lesser of 300VDC (includes AC peak to 1.3MHz.) or on X1, to the driven equipment’s input rating.

Tech Specs

Test Equipment General Attributes
Product Height	1.00 IN
Product Length	6.50 IN
Product Width	5.00 IN
Country of Origin	United States
Shipping Height	1.00 IN
Shipping Length	6.50 IN
Shipping Width	5.00 IN
