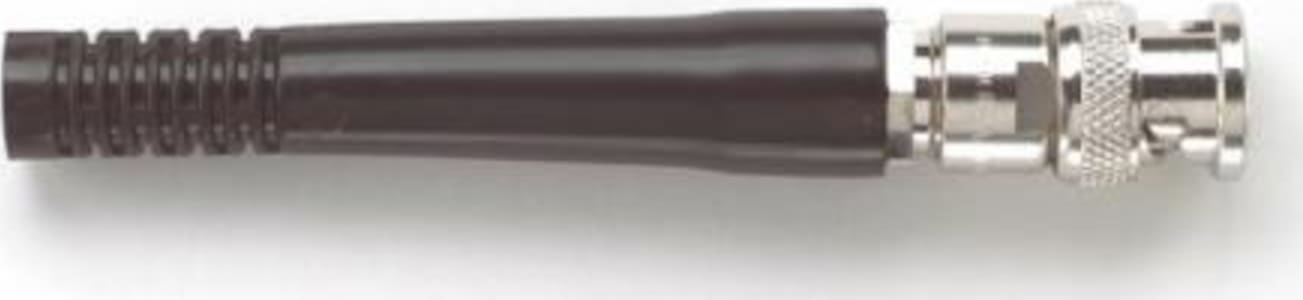

Pomona 5066 BNC (m) with strain relief for RG58 type cable

Name: Pomona 5066 BNC (m) with strain relief for RG58 type cable
Brand: Pomona
SKU: Pomona5066-0
Price: 66.45 USD
Availability: InStock

0 reviews | UPC: 095969171342 | Model: Pomona 5066-0

Compare

BNC (M) W/STRESS BOOT RG58 (BLACK)-Note:Price is for 5 Units

Fits coax cable types RG 58 and RG 141 with cable OD of: .185” to .200” (4.7mm to 5.08mm)
Do-It-Yourself and field serviceable
Strain relief boot
Ten boot colors available

View Product Details

Your Price: $66.45

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Recommended for you

Materials
Connector
Body and Fittings	Brass per QQ-B-626, Alloy 360, ½ Hard.
Center Contact	Brass per QQ-B-626, Alloy 360, ½ Hard.
Dielectric	Teflon per ASTM D1457.
Vee Gasket	Silicone rubber per QQ-R-765, Class 11A, Grade 50.
Clamp Nut	Brass per QQ-B-626, Alloy 360, ½ Hard.
Finish
Body and Fittings	Nickel plated, tarnish resistant
Center Contact	Gold plated per requirements of MIL-C-39012
Clamp Nut	Nickel plated per QQ-N-290, Class 2.
Ratings
Impedance	50 Ohms
Frequency	DC to 3 GHz.
VSWR	1.35 @ 3 GHz.
Insertion loss	.2 dB @ 3 GHz.
Cable Retention Force	40 lbs.
Mating Cycles	500
Temperature	+50°C. (+122°F.) Max.
Voltage
Hands free testing in controlled voltage environments	500 Peak Max.
For CE compliance	not intended for hand-held use at voltage above 33 Vrms/70 Vdc.
